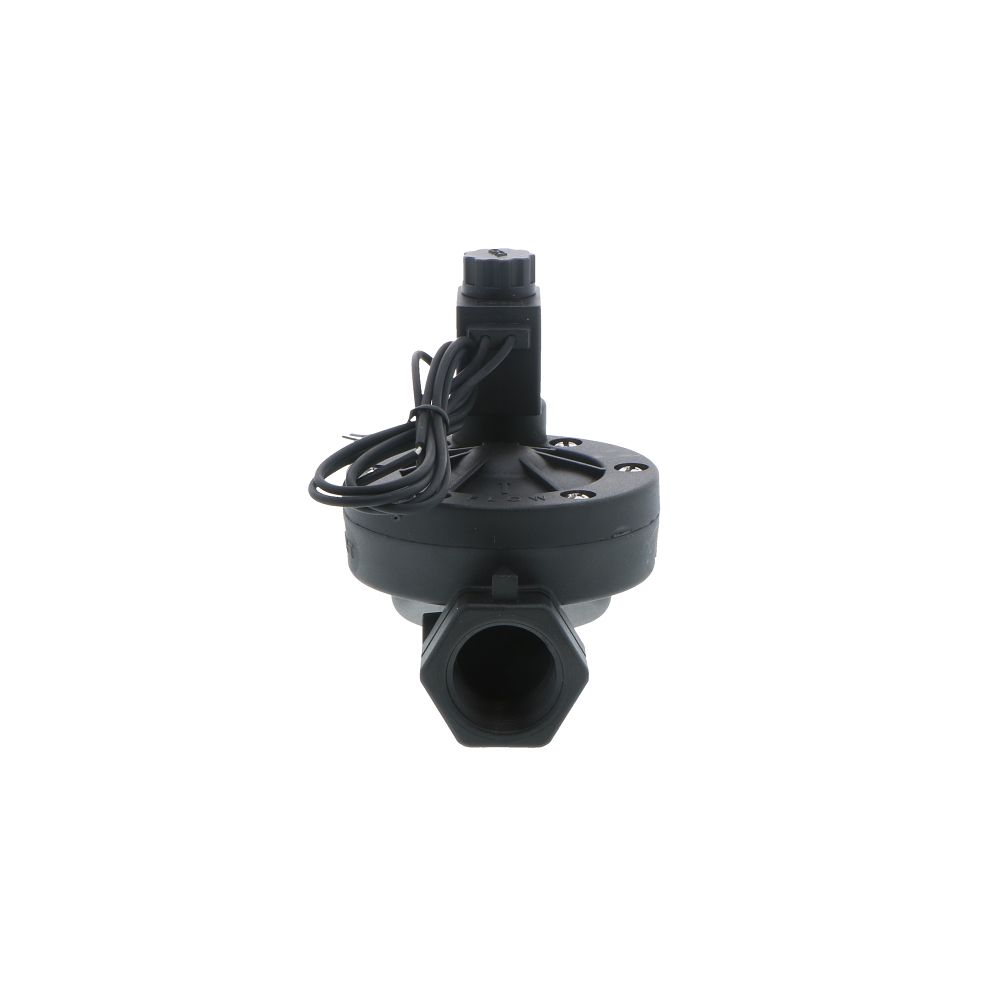

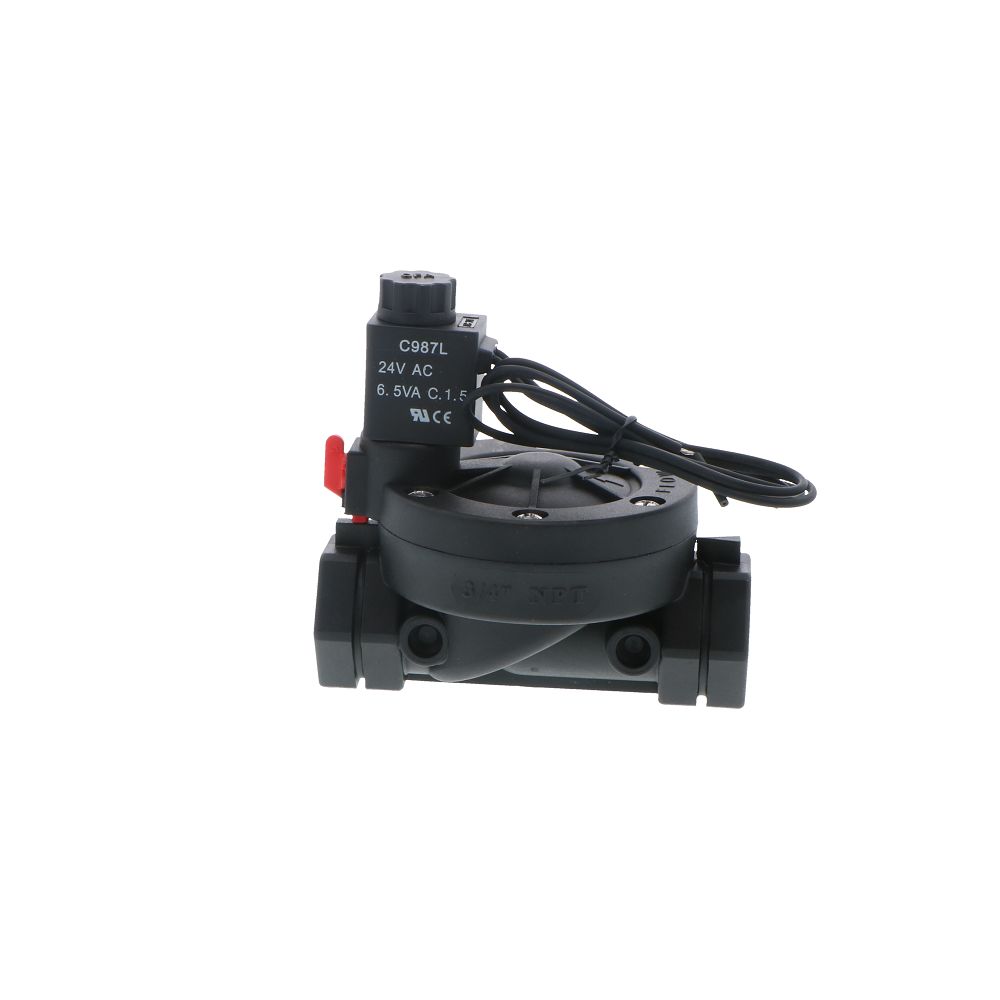

CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC

The CFA C9-212N5252-G0-MF-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of EDPM, and the seals are viton.

Specifications:

Connection Size: 3/4" FPT
Power Connection: Lead Wires
Voltage: 24v AC
Body: Nylon
Diaphragm: EPDM
Seal Material: Viton
Media: Liquid
Media Temperature: 41 - 122 °F
Response Time: 25 - 100mS
Operating Pressure: 5 - 145 PSI
Normally Closed
Overide: Manual
Includes Flow Control

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diameter	1"
Port Size	3/4" FPT"
Voltage	24V AC
Shipping Dimensions
Shipping Length	5.88 in.
Shipping Width	4.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5.25 in.
Product Length	5.88 in.
Product Width	4.25 in.
Product Weight (lbs)	0.059375
