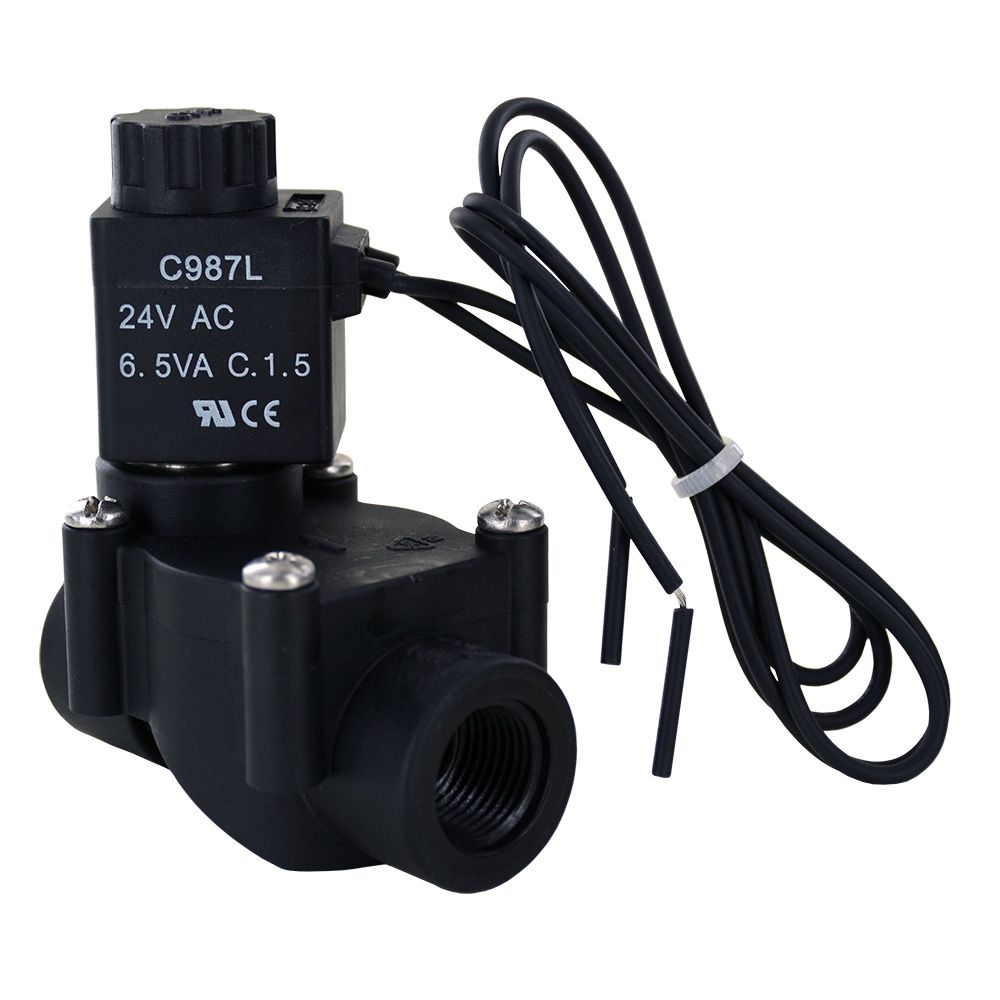

CFA C9 Series Solenoid Valve Normally Closed 3/8" FPT 24VAC

The CFA C9-212N3150-G0-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of buna-N, and the seals are viton.

Specifications:

Connection Size: 3/8" FPT
Power Connection: Lead Wires
Voltage: 24v AC
Body: Nylon
Diaphragm: Buna-N
Seal Material: Viton
Orifice Size: 1/2"
Media: Liquid
Media Temperature: 41 - 122 °F
Response Time: 25 - 100mS
Operating Pressure: 8 - 150 PSI
Normally Closed

Compatible with:

Ice House America®

IHA- H01109

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Glass filled nylon
Max Pressure (Psi)	150
Max Temp (°F)	120
Min Pressure (Psi)	10
Min Temp (°F)	32
Seal Material	Viton/FKM
Diameter	1/2"
Port Size	3/8" NPT"
Voltage	24VAC
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2
