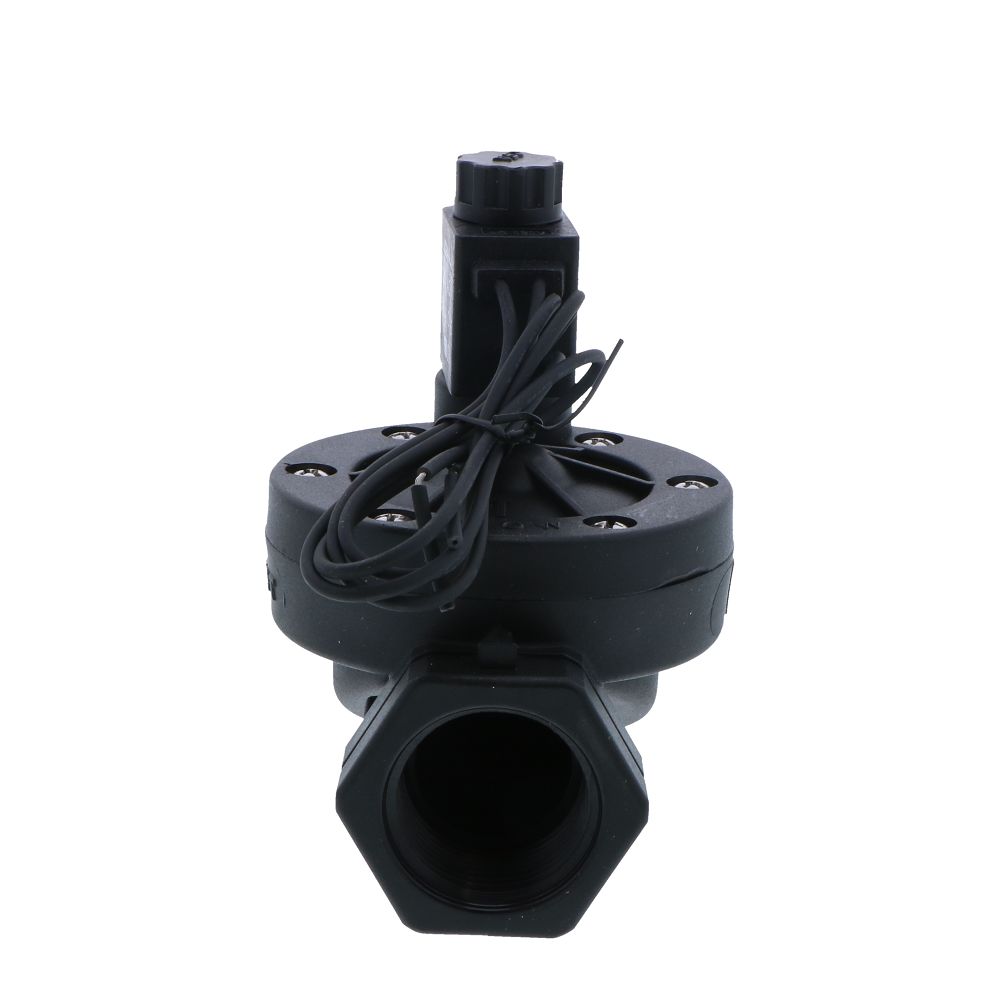

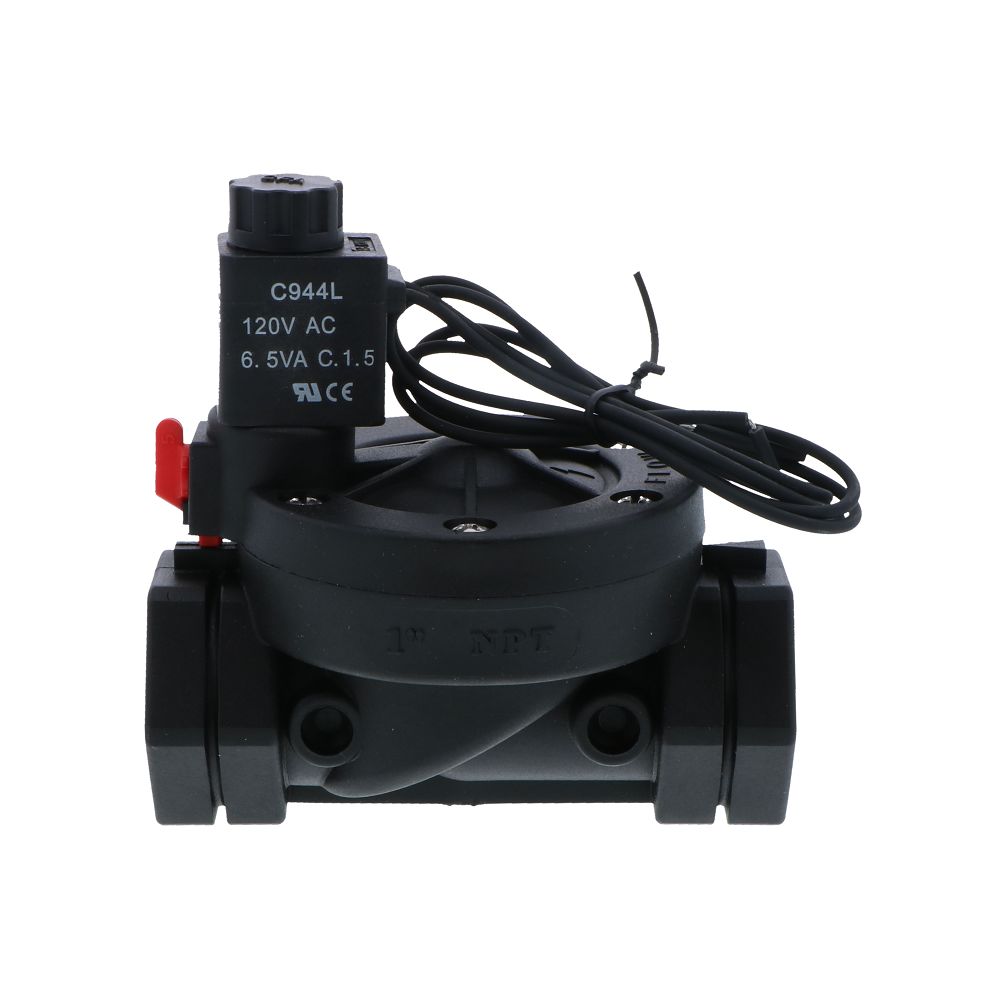

CFA C9 Series Solenoid Valve w/ Manual Override Normally Closed 1" FPT 120V

The CFA C9-212N6252-G0-M-120VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.
Quality Construction The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton. This valve also features a manual override as well as a flow control.

Specifications:

• Connection Size: 1" FPT

• Power Connection: Lead Wires

• Voltage: 120v AC

• Body: Nylon

• Diaphram Material: EPDM

• Seal Material: Viton

• Manual Override
• Internal Components: Stainless Steel

• Media Temperature: 41 - 122 °F

• Response Time: 75 - 150 ms

• Operating Pressure: 5 - 145 PSI

• Media: Liquid

• Normally Closed


Applications:

• Carwash

• Industrial Applications

• Process Applications

• Water Industries

• HVAC

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Power	41 - 122 Degrees Fahrenheit
Diameter	1"
Port Size	1"
Voltage	120V
Shipping Dimensions
Shipping Length	5.75 in.
Shipping Width	4.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5.25 in.
Product Length	5.75 in.
Product Width	4.25 in.
Product Weight (lbs)	0.968
