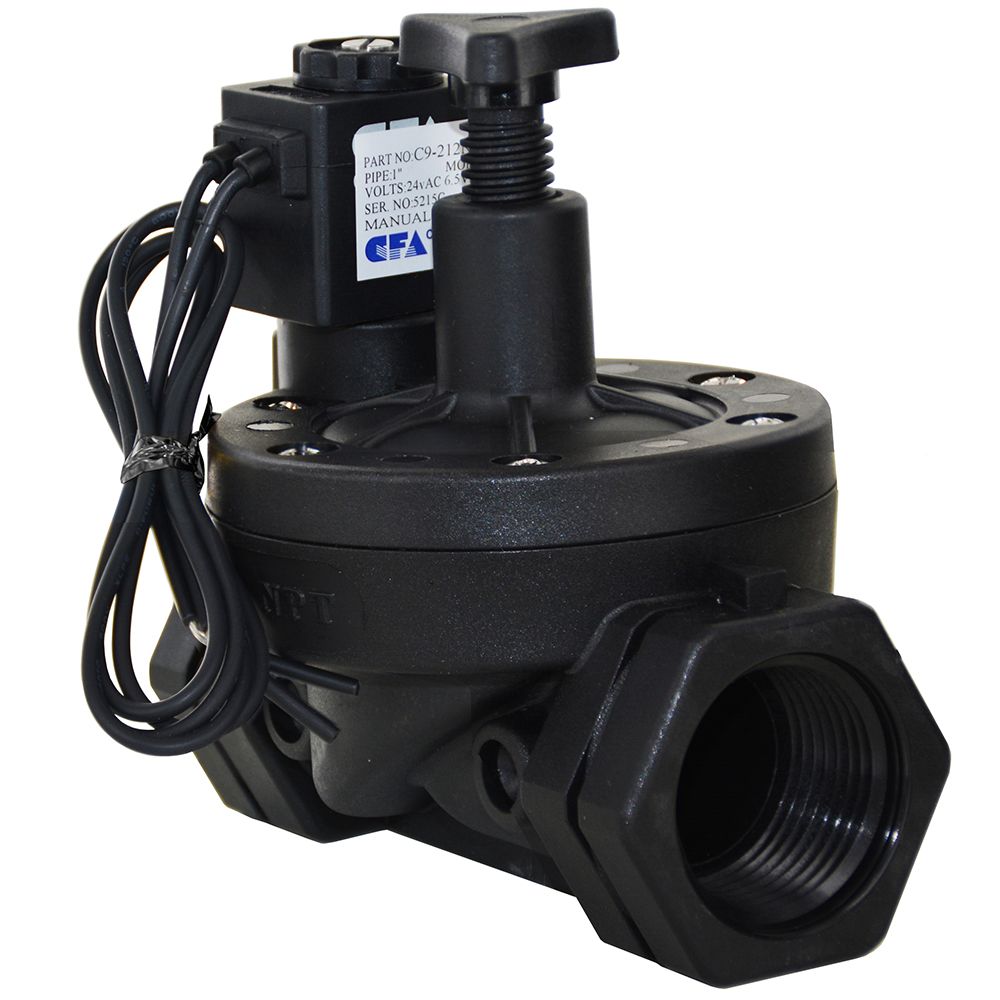

CFA C9 Series Solenoid Valve w/ Manual Override & Flow Control Normally Closed 1" FPT 24VAC

The CFA C9-212N6252-G0-MF-24VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.

Quality Construction:

The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton. This valve also features a manual override as well as a flow control.

Applications:

Carwash
Industrial Applications
Process Applications

Specifications:

Connection Size: 1" FPT
Power Connection: Lead Wires
Voltage: 24v AC
Body: Nylon
Diaphram Material: EPDM
Seal Material: Viton
Internal Components: Stainless Steel
Media Temperature: 41 - 122 °F
Response Time: 75 - 150 ms
Operating Pressure: 5 - 145 PSI
Media: Liquid
Normally Closed
Manual Override
Flow Control

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Power	41 - 122 Degrees Fahrenheit
Diameter	1"
Port Size	1"
Voltage	24V
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.25
