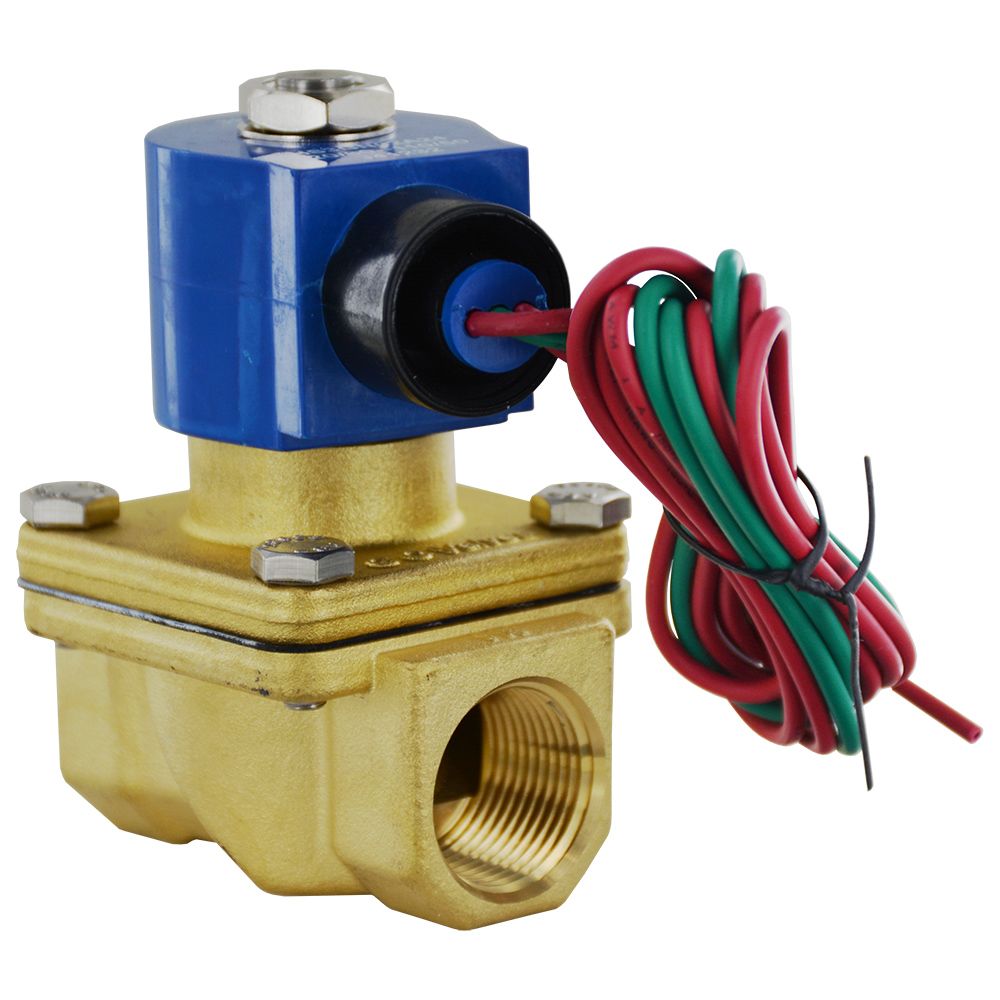

GC Valves S211GF02N5EG5 Solenoid Valve Normally Closed 3/4" FPT 120v

GC Valves S211GF02N5EG5 Normally Closed Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of brass and the diaphragm and seals are nitrile.

Specifications:

• Ports: 3/4" FPT
• Body Material: Brass
• Seals: Nitrile
• Housing: Conduit
• Standard Lead Length: 24 inch
• Coil Class: F
• Orifice Size: 5/8"
• Certifications: UL and CSA
• Operating Temperature: 32°F to 125°F (Nominal)
• Voltage Tolerance: ±10% of applicable voltage
• Duty Cycle: Continuous
• Mounting Bracket
• Made in the USA

Applications:

• Car Wash
• General Industrial
• Process Applications
• Water Industries
• HVAC

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Max Pressure (Psi)	150
Max Temp (°F)	150
Power	Leads 24" 18 AWG 8 Watts AC 10 Watts DC
Seal Material	Nitrile/Buna-N (NBR)
Diameter	5/8"
Port Size	3/4"
Voltage	120v
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.3
