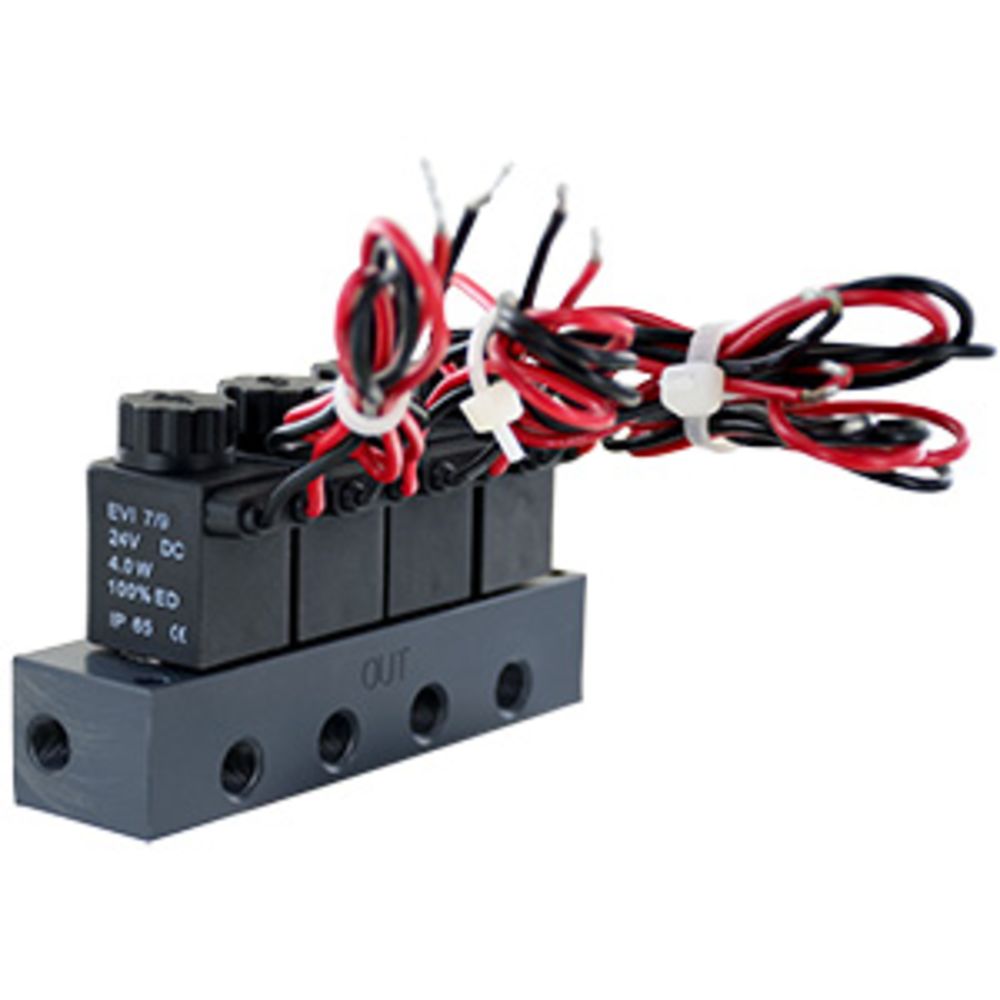

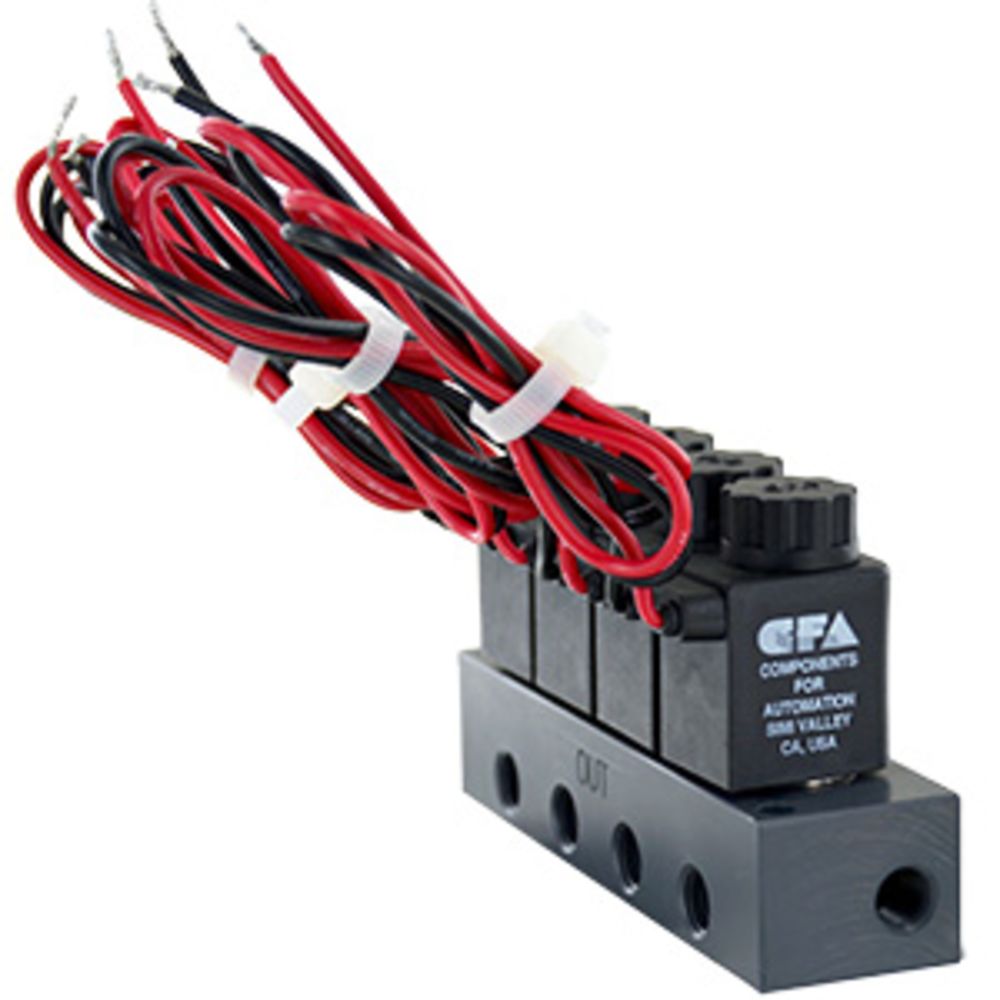

CFA C9 Series Four Station Normally Closed Solenoid Valves with Manifold 1/8" FPT 24VAC

The CFA C94-211N105-P1-ECI is a four station normally closed solenoid valve. This unique solenoid valve assembly features a PVC manifold with 1/8" FPT connections. These solenoids have a 3/32" orifice and can handle liquid pressures up to 175 PSI. Specifications:

Connection Size: 1/8" FPT
Power Connection: Lead Wires
Voltage: 24VAC
Body: Nylon
Seal Material: Viton
Manifold Construction: PVC
Media Temperature: 41 - 122 °F
Response Time: 5 - 15ms
Operating Pressure: 0 - 400 PSI
Normally Closed

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Glass filled nylon
Max Pressure (Psi)	400
Max Temp (°F)	131
Min Pressure (Psi)	0
Power	Leads 18"
Seal Material	Viton/FKM
Diameter	3/32"
Voltage	24 VAC
Product Weight & Dimensions
Product Weight (lbs)	5
