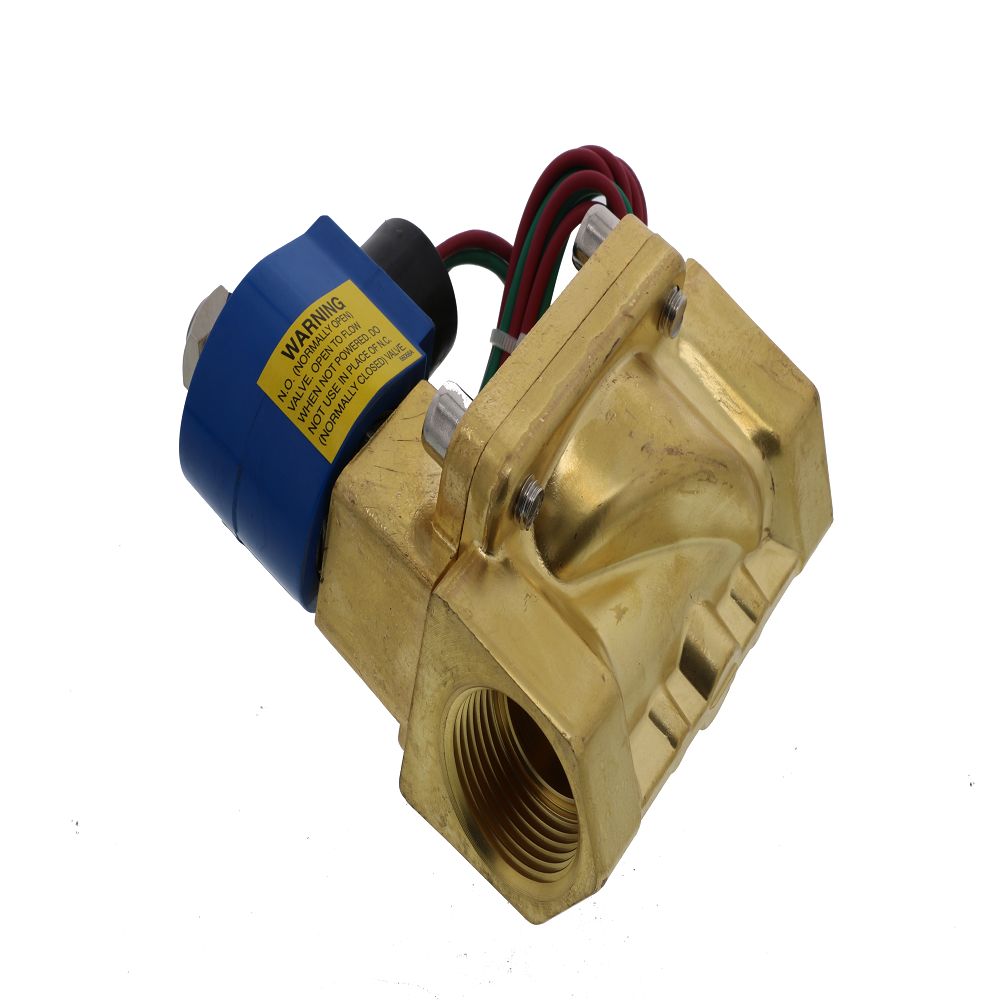

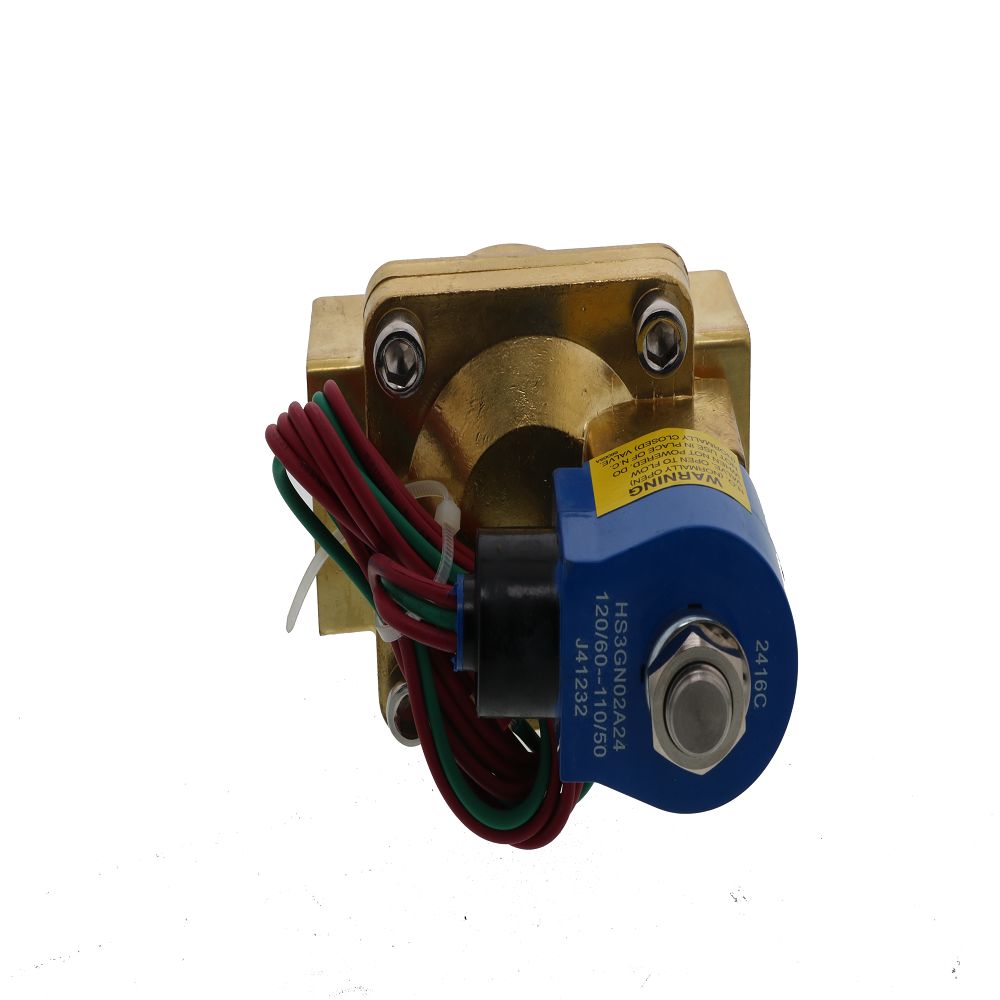

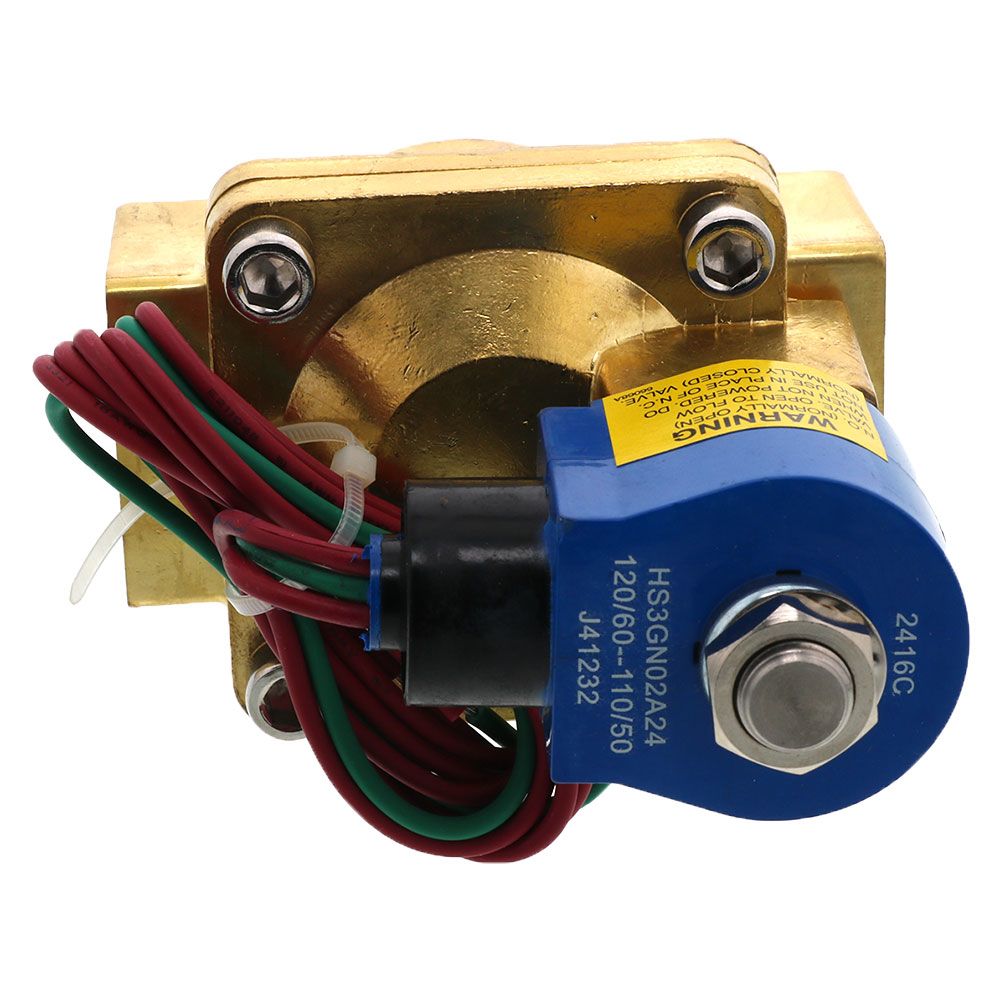

GC Valves S712GF02N9FG9 Solenoid Valve Normally Open 1 NPT 120V

GC Valves S712GF02N9FG9 Normally Open 1" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The 2-way piloted diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of brass and the diaphragm and seals are Nitrile (Buna-N)

Applications:

• Car Wash
• General Industrial
• Process Applications
• Water Industries
• HVAC

Specifications:

• Ports: 1" NPT Female
• Body Material: Brass
• Internal Components: Stainless Steel
• Seals: NBR (Buna-N)
• Voltage: 120V AC
• Duty Cycle: Intermittent
• Connection Type: 18 AWG Lead Wires
• Certified to NSF/ANSI Standard 61
• Made in the USA

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Max Pressure (Psi)	225
Max Temp (°F)	120
Min Pressure (Psi)	7
Min Temp (°F)	32
Power	Leads 24" 18 AWG 9 Watts
Seal Material	Nitrile/Buna-N (NBR)
Diameter	1"
Origin	U.S.A.
Port Size	1" FPT"
Voltage	120 Volts
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	3.5
