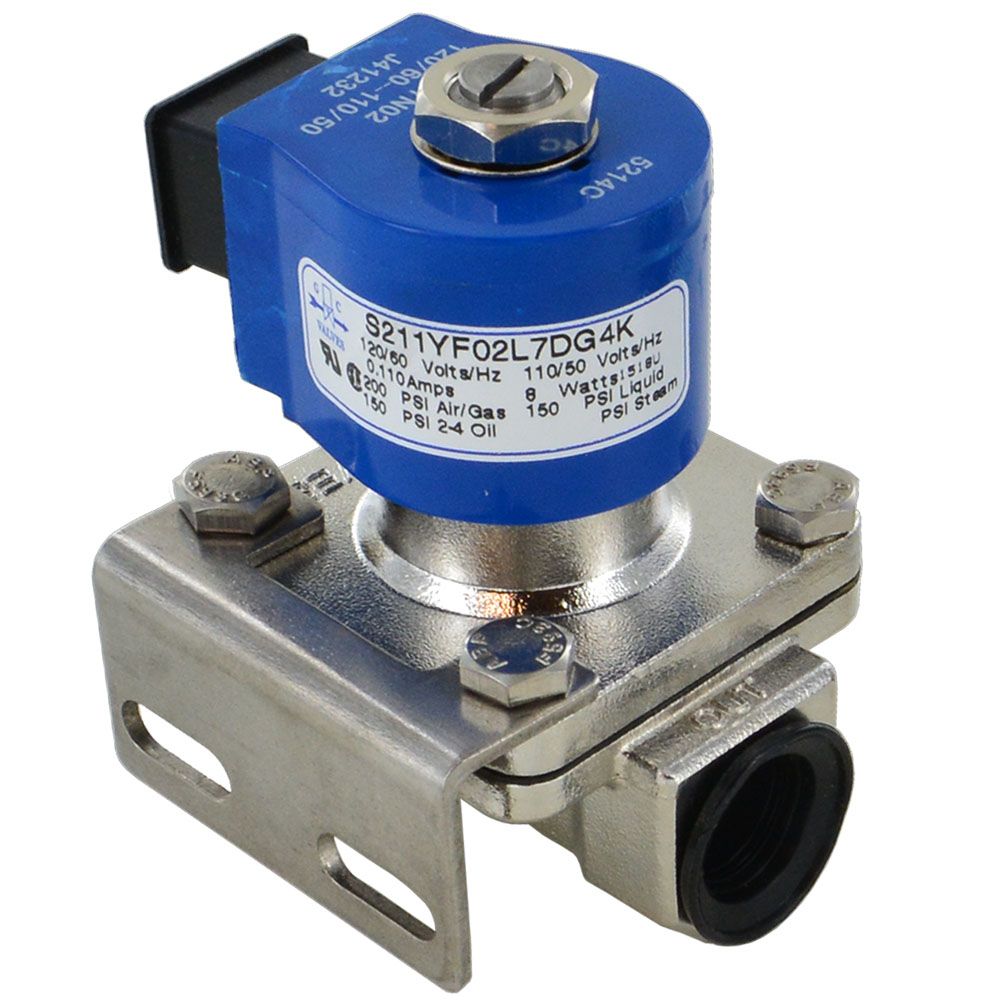

GC Valves S211YF02L7DG4K Solenoid Valve Normally Closed 1/2" NPT 110v

The GC Valves S211YF02L7DG4K Normally Closed Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.

Applications:

• Car Wash
• General Industrial
• Process Applications
• Water Industries
• HVAC

Features:

• Ports: 1/2" FPT
• Body Material: stainless steel
• Internal Components: stainless steel
• Seals: viton
• Voltage: 110v
• Duty Cycle: continuous
• Connection Type: 18 AWG lead wires with 1/2" female conduit
• Certified to NSF/ANSI Standard 61
• Made in the USA

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	120
Min Pressure (Psi)	4
Min Temp (°F)	32
Power	11 W
Psid@Flow Rate	1 PSI @ 4.3 GPM
Seal Material	Viton/FKM
Diameter	5/8"
Port Size	1/2"
Voltage	110vac
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.1
