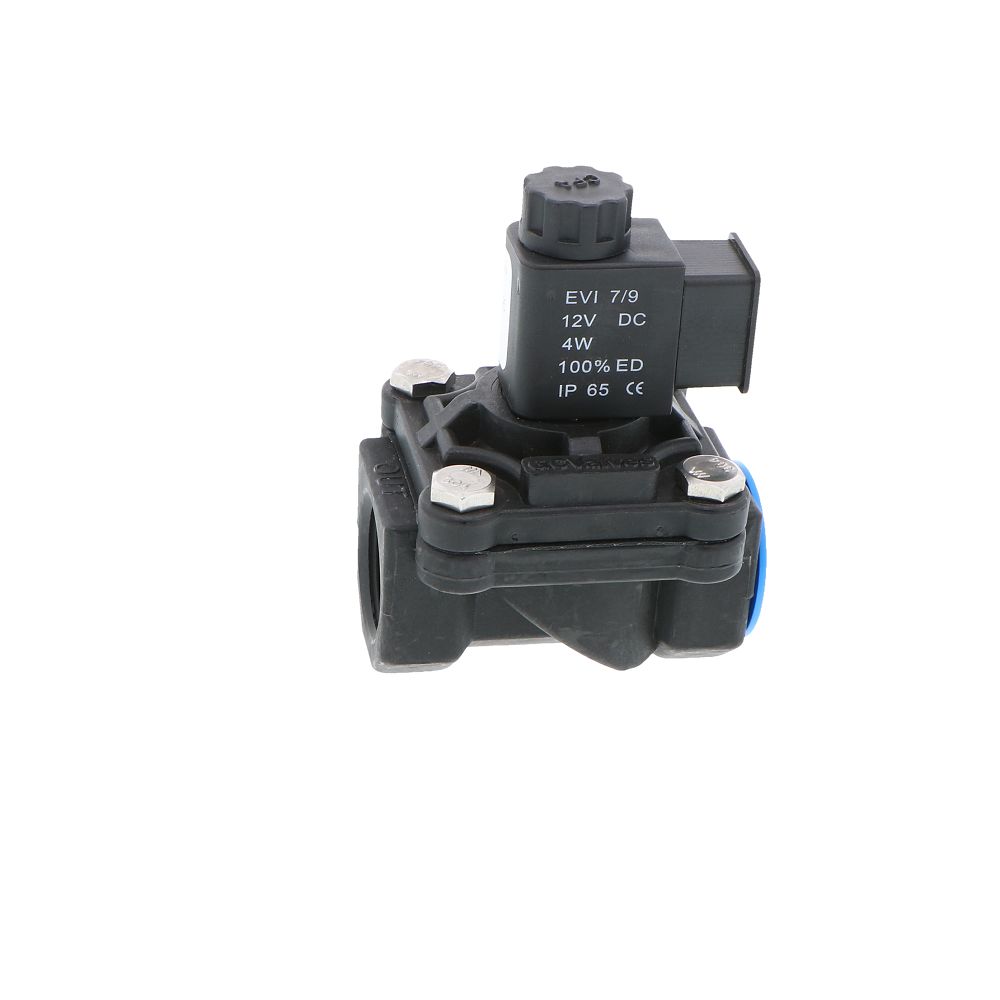

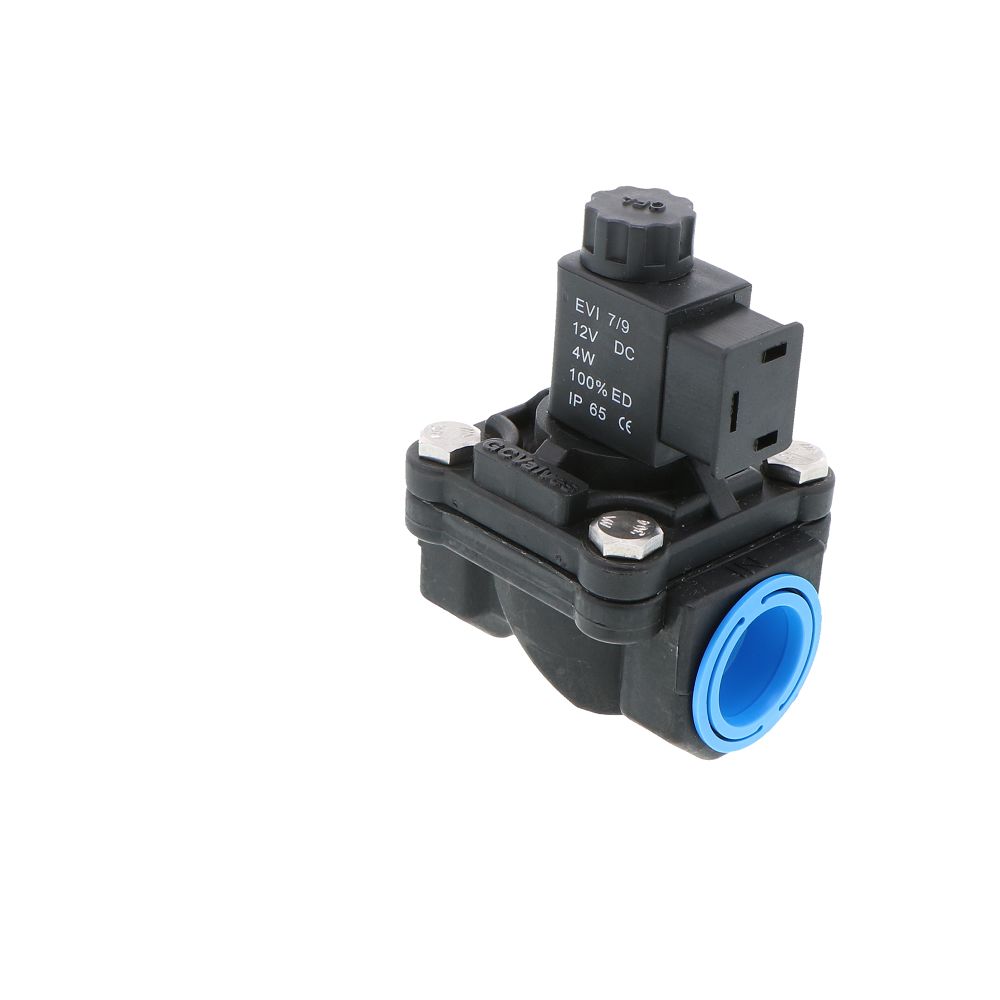

CFA C9 Series Solenoid Valve w/ Flow Control Normally Closed 3/4" FPT 12VDC

The CFA C9-212N5252-L0-12VDC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm material is made Buna-N, and the seals are viton.

Specifications:

Connection Size: 3/4" FPT
Power Connection: Lead Wires
Voltage: 12 VDC
Body: Nylon
Diaphragm Material: Buna-N
Seal Material: Viton
Media: Liquid
Media Temperature: 41 - 122 °F
Response Time: 25 - 100mS
Operating Pressure: 5 - 150 PSI
Normally Closed

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Glass filled nylon
Max Pressure (Psi)	150
Max Temp (°F)	120
Min Pressure (Psi)	5
Seal Material	Viton/FKM
Diameter	3/4"
Port Size	3/4" NPT"
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1
