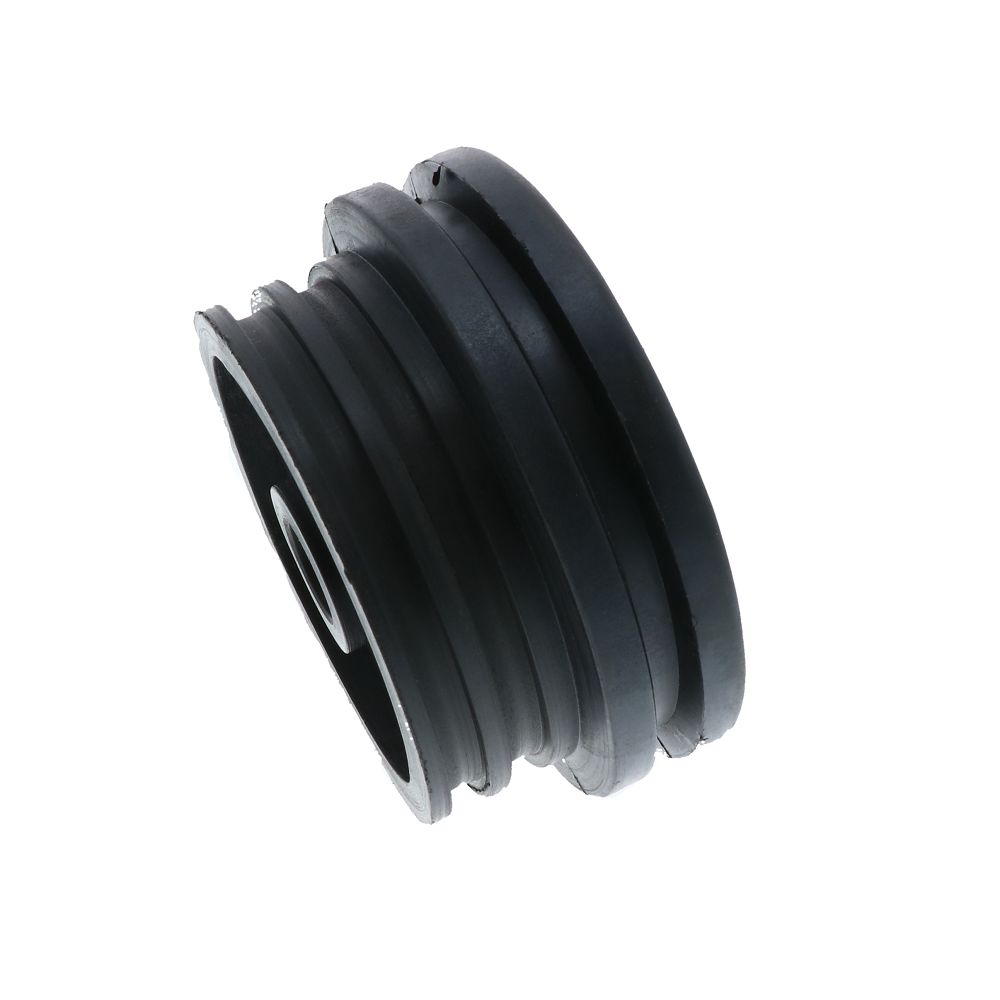

End Cap for 4" Stainless Steel Housing 3/4" Feed & 1/2" Permeate

The 4" Nylon End Cap for Stainless Steel Pressure Vessel uses two sets of double O-Rings which allow the housing to withstand pressures up to 250 PSI. An outer set of 4" double O-rings seal the end cap to the pressure vessel, while a second inner set of double O-rings seal the membrane to the end cap.

Features:

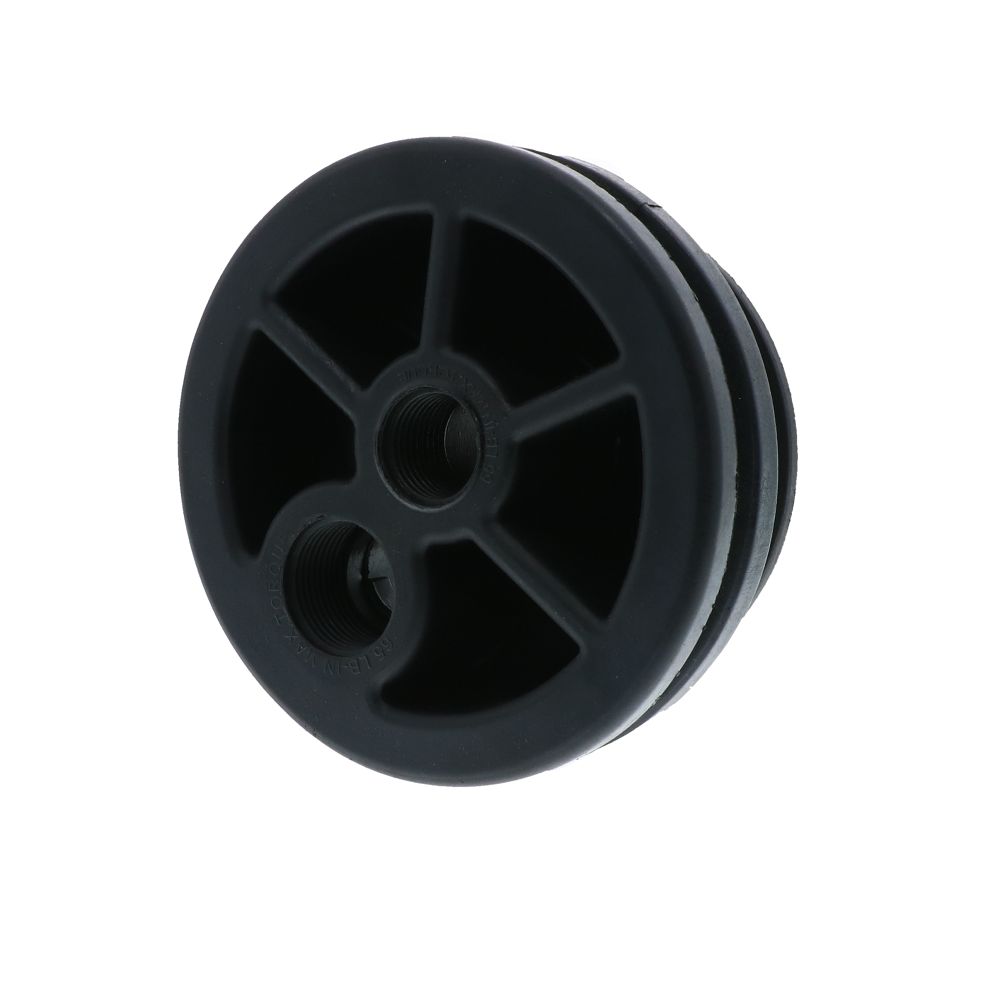

• 3/4" Feed Port
• 1/2" Permeate Port
• Made of durable Nylon material
• Secured by "U-type" clamp closures (not included)

Note: This cap does not include the required inner or outer o-rings. Please select the "With O-rings" option above to order the cap with two inner and outer o-rings.

Compatible with:

AXEON Membranes	201536
PureGen - UNPUBLISHED	MH-40-CAP-1234

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Nylon
Max Pressure (Psi)	250
Max Temp (°F)	120
O-Rings	Buna-N
Shipping Dimensions
Shipping Length	4.63 in.
Shipping Width	4.63 in.
Shipping Height	2.5 in.
Product Weight & Dimensions
Product Height	2.5 in.
Product Length	4.63 in.
Product Width	4.63 in.
Product Weight (lbs)	0.053125
