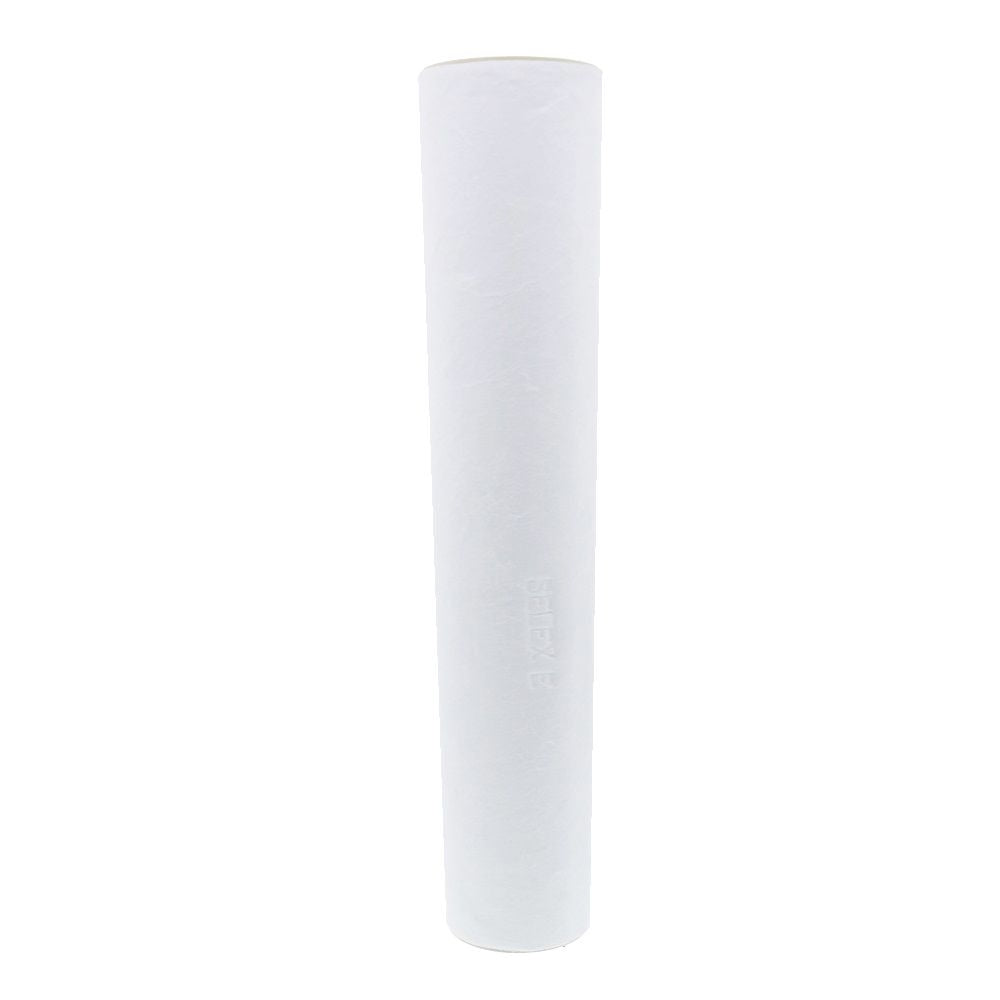

Selex Filter 20" 1 mic Absolute SXE-20-YYP

The Selex Cartridge filter high-precision, graded density cartridge filter is on the leading edge of depth filter technology. The Selex delivers consistently high particulate retention rates that equal the performance of absolute rated filters. The patented Selex manufacturing process controls the density and fiber size which are key to the filter’s high particle retention, high dirt holding capacity and long life. Selex cartridge filters are made from thermally-welded blown microfibers of polypropylene. No additives, resin binders, lubricants, anti-static or release agents are used in the manufacturing of Selex cartridge filters. Osmonics certifies that the filter material meets the requirements of the FDA.

Features:

• Patented melt blown microfiber technology
• Applications:
• Magnetic Media (CMP) – Solvents, Slurry/Dispersion, Pre-Filter and Final Filter at Coater
• Photographic – Incoming Water, Liquid Chemicals, Developer, Fixer, Stopper Solutions
• Petrochemicals – Waterflood, Completion, Enhanced Oil Recovery, Amines
• Chemical Process Industry – Reagent Grade Chemicals, Process Water
• Pharmaceuticals – Clarify Production Broths, Prefiltration
• Meets the requirements of the FDA for food and beverage contact
• Pure polyproplene construction
• Fast rinse-up in high purity applications
• Manufactured for resistance to a wide range of chemical solutions.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Temp (°F)	140
Micron Rating (Nominal)	1 µm ABS
Psid@Flow Rate	6 psid @ 4 GPM (Data based on 10" length filter)
Cap Material	Thermally Bonded Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Inner Diameter	1-1/4"
Media Type	Thermally Bonded Polypropylene
Micron Rating	1 µm ABS
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5
Product Length	20.125
Product Width	2.5
Product Weight (lbs)	1.5
