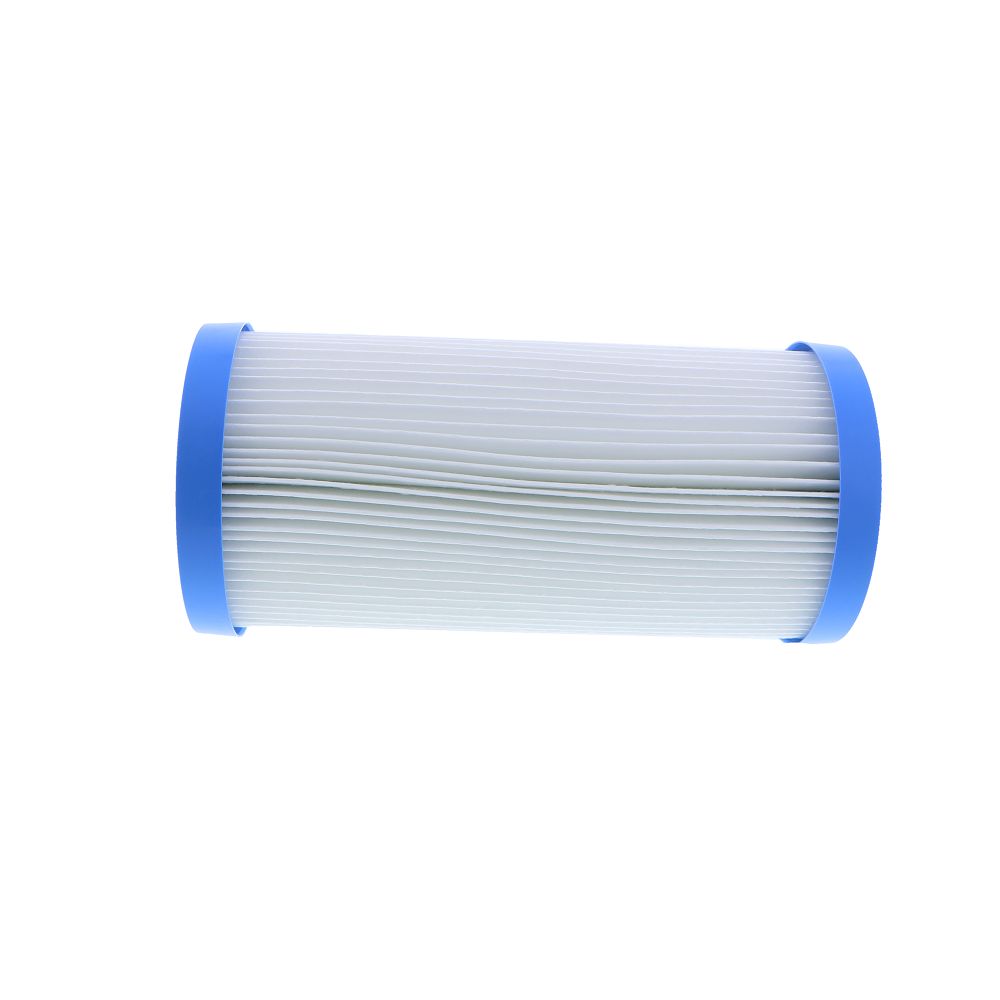

10" BB Pentek R30-BB Pleated Polyester 30 Mic Filter

Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. The R30-BB is the replacement filter for most 10" Big Blue housings.

Used in Residential and Commercial Applications. The high durability and resistance to bacteria and chemicals of the Pentek R Series filters is ideal for potable water, light industrial applications, swimming pool and spa, and well water applications. The pleated filter design maximizes the dirt-holding capacity and extends the life of the filter.

Improved Filtration Efficiency. The core, filter media, and endcaps are embedded and sealed at each end of the pleat, forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

Additional Specifications:

• Length: 9-3/4"
• Diameter: 4-1/2"
• Micron Rating: 30 micron
• Surface Area: 16 sq. ft.

Compatible with:

GE Water	GNWH38F, GXWH40L, GXWH35F, GNWH38S, GXWH30C, GXWH38F
General Electric	FXHSC, GE FXHSC
OmniFilter, Flotec	RS6

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Core Material	Polypropylene
Initial Pressure Drop	1 PSI Differential
Max Temp (°F)	125
Micron Rating (Nominal)	30 µm
Min Temp (°F)	40
Psid@Flow Rate	<1 psid @ 10 GPM
Recommended Flow Rate	10 GPM
Surface Area	18 Square Feet
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Flow Rate	10 GPM
Media Type	Non-Woven Polyester
Micron Rating	30 µm
Origin	Mexico
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	9.625
Product Width	4.625
Product Weight (lbs)	2
