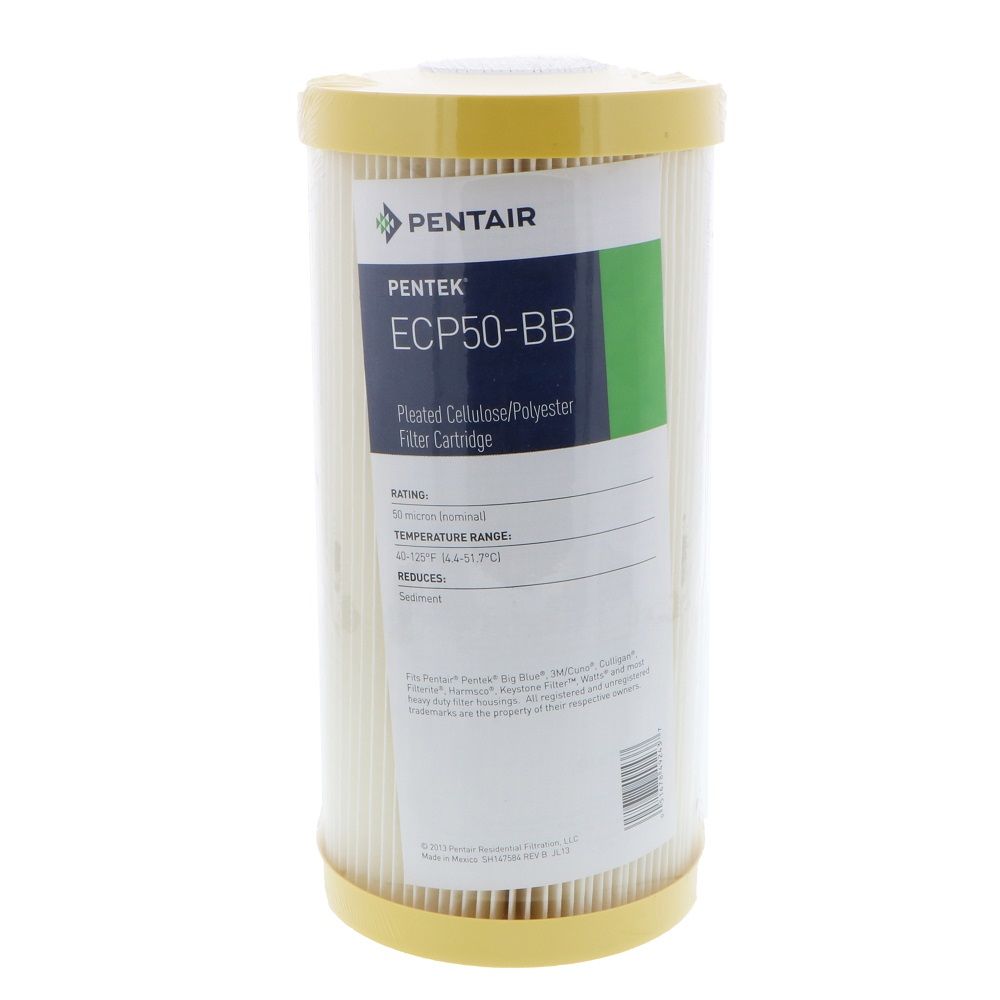

10" BB Pentek Pleated Cellulose-Polyester ECP50-BB 50 mic Filters

ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Features:

• Special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges
• Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
• Minimal unloading and media migration
• Contains more media surface area than most competitive cartridges. The 10" Big Blue ECP cartridges contain 18 square feet of media.

Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings Replaces CP and HFCP Series Cartridges


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Initial Pressure Drop	1 PSI Differential
Max Temp (°F)	125
Micron Rating (Nominal)	50 µm
Min Temp (°F)	40
Psid@Flow Rate	<1 psid @ 10 GPM
Recommended Flow Rate	20 GPM
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Flow Rate	20 GPM
Media Type	Cellulose Polyester
Micron Rating	50 µm
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	9.75
Product Width	4.625
Product Weight (lbs)	1.25
