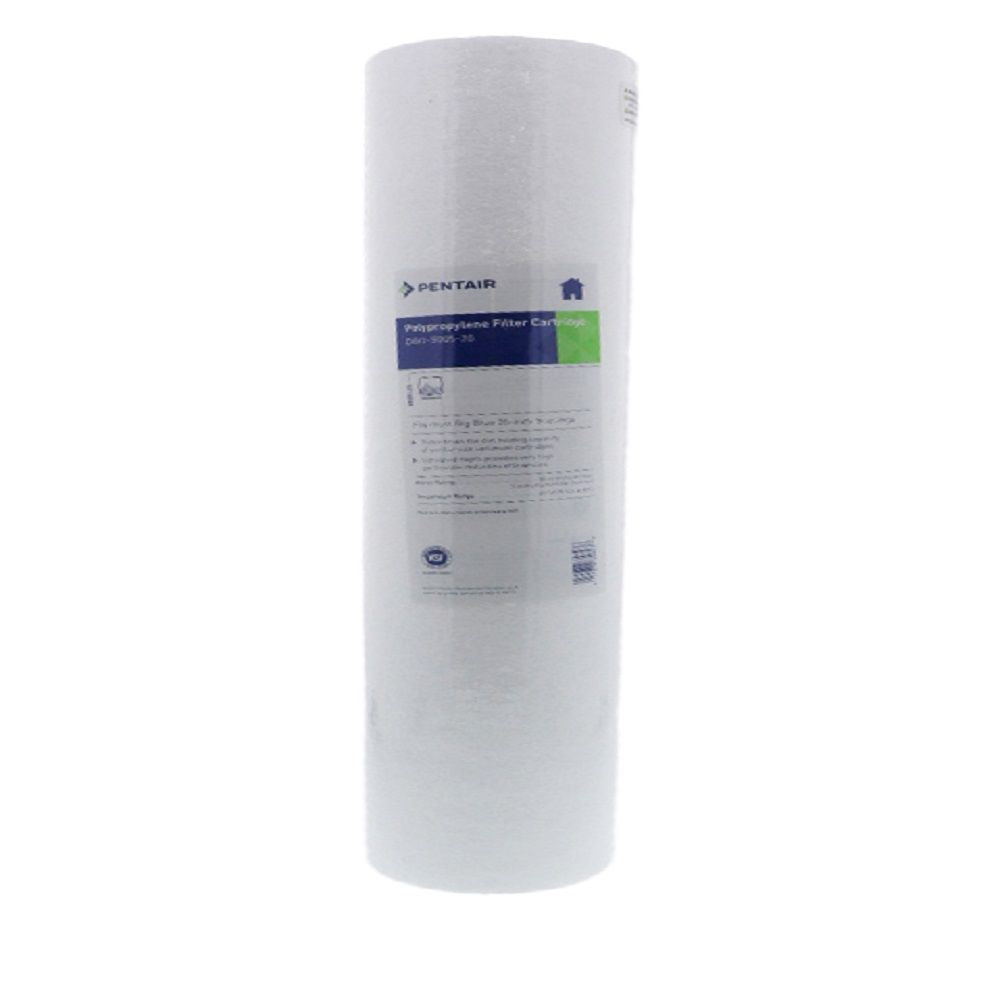

20" Pentek DGD-5005-20 Dual Gradient Density Polypropylene Sediment 5 mic Filter

The 20" Pentek DGD-5005-20 Dual Gradient Density Sediment Filter is manufactured from 100% pure polypropylene, and is sized for use in the Pentair Pentek Big Blue Filter Housings. The DGD Series filter cartridges feature high capacity and dirt-holding design, and will not impart taste, color, or odor to the filtered liquid. The polypropylene construction not only offers advanced sediment filtration, but also superior chemical resistance and bacteria protection. The design and performance capabilities of these cartridges make them an ideal choice for all residential, rural, commercial, or municipal applications.
This filter will fit Pentair® Pentek® Big Blue®, 3M/Cuno®, Culligan®, Filterite®, Harmsco®, Keystone Filter™, Watts®, and most heavy duty filter housings.

Dual-Gradient Filtration. The dual-gradient is an all-in-one pre and post filter, eliminating the need for a step-down filtration system in your home. The 50 micron outer layer removes larger sediment, which reduces the load of the 5 micron inner layer. This allows the filter to operate more efficiently and consistently, and adds to the filter life.

Specifications:

• Filter Media: Polypropylene
• Nominal Micron Rating: 5
• Dimensions: 4.5" x 20"
• Reduces: Sediment, dirt, and rust
• Initial Pressure Drop: <1 psi @ 20 gpm
• Temperature Range: 40-145°F

Features & Benefits:

• High dirt-holding capacity
• Exceptional chemical resistance
• Not prone to bacterial attack
• Spun fibers form gradient density
• Tested & certified to NSF/ANSI Standard 42 for material requirements

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Initial Pressure Drop	<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) PSI Differential
Max Temp (°F)	145
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40
Psid@Flow Rate	<1 psid @ 20 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	20 GPM
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	20.125
Product Width	4.5
Product Weight (lbs)	2
