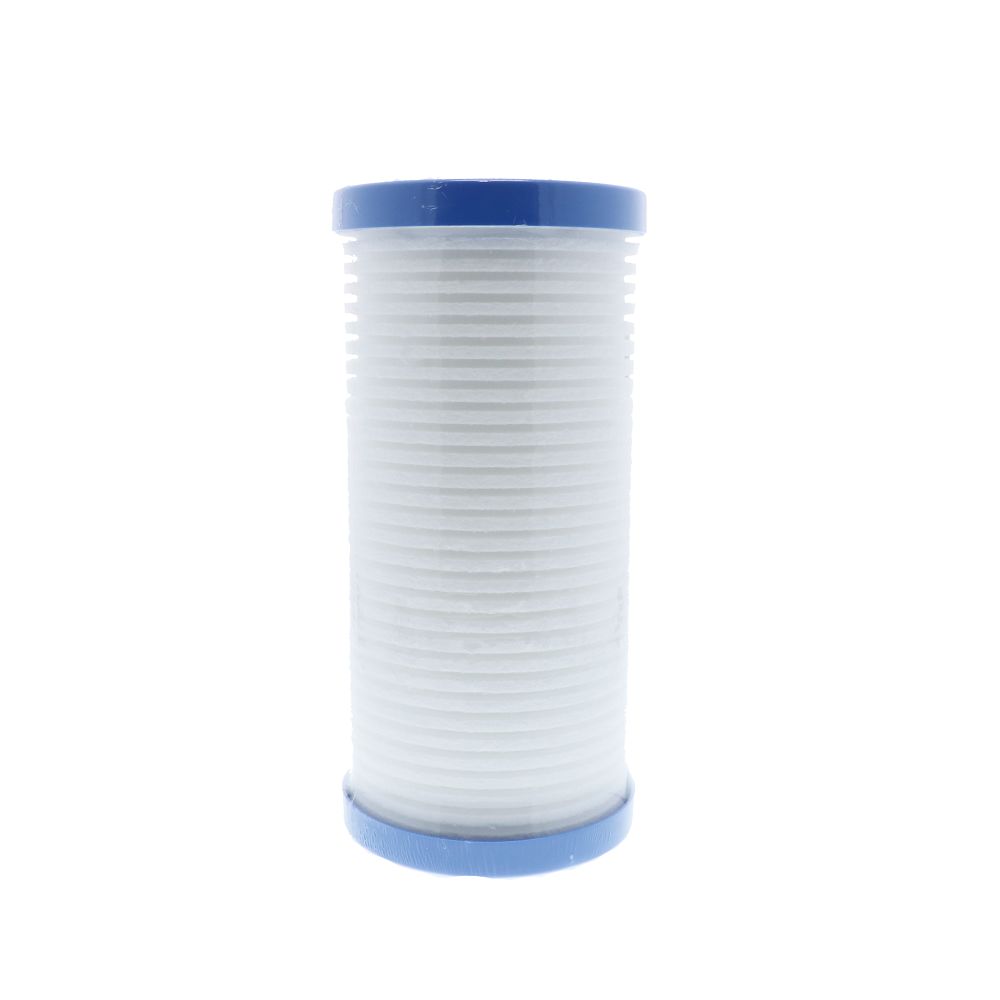

3M Aqua-Pure AP810 Filter Whole House Sediment 5 mic.

The 3M Aqua-Pure AP810 filter is a heavy duty, large diameter, graded density sediment filter cartridge. The AP810 water filter provides both rigid construction that prevents collapse under high water pressure conditions and a porous cylinder that traps contaminants efficiently without affecting water flow.

The Aqua-Pure 810 filter is for use with the Aqua-Pure AP801, AP801T, AP801T-1.5, and AP801-1.5 whole house water filter systems and any other whole house filter system that calls for a standard size large diameter filter. Replaces WHCF-GD25BB.

Features:

• Whole house water filter for rust and sediment, part number 55779-05
• Progressive porosity filter cartridges are rated for long life under extra-heavy dirt loading
• AP 810 filter is a 5 micron filter
• Maintains water pressure at a 20 GPM flow rate
• Maximum water pressure rating up to 125 PS

Aqua-Pure AP810 Filter Alternate Part Numbers:

• 55779-05
• 55779-16
• Grainger Part Number: 4LW37
• G2544141
• 3M Part Number: 5618902
• 3M ID: 70020164177
• Case Qty: 4 per case (5577915) or 8 per case (5577916)

When is it time to change an AP810 Filter?

Unlike carbon based filters, there is no set time to replace a sediment AP810 filter. There are 2 methods for helping to determine if it is time to change the filter.
1. The most accurate method is to install a water pressure gauge on both the inlet and outlet sides of the housing that holds the AP810 filter. Compare the water pressure reading from both gauges. If the difference is 10 psi or greater it is time to replace the filter.
2. If you have noticed a drop in your water pressure or flow rate from faucets and showers, it is time to replace the filter.

How to Change and Replace an AP810 Cartridge:

1. Turn off the incoming water supply by isolating the unit with existing valves.
2. Bleed the pressure from the housing by pressing the pressure relief valve. Often, this is a red button on top of the housing.
3. Remove the filter housing by sliding the wrench up towards the top of the housing. Once in place, turn the wrench to the left to unscrew the sump from the head.
4. Remove the old filter cartridge from the housing and discard.
5. Clean the empty housing with warm soap and water by wiping it clean.
6. Insert the new AquaPure AP810 cartridge into the housing.
7. Add a small amount of lubricate to the housing´s O-Ring, and then hand tighten the housing back into the head.
8. Check to make sure the housing is secure, and turn back on the water.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Temp (°F)	100
Micron Rating (Nominal)	5 µm
Recommended Flow Rate	20 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-5/8"
End Cap Type	Double Open Ended (DOE)
Filter Type	Sediment Depth
Flow Rate	20 GPM
Media Type	Polypropylene
Micron Rating	5 µm
Origin	Mexico
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	9.625
Product Width	4.625
Product Weight (lbs)	1.5
