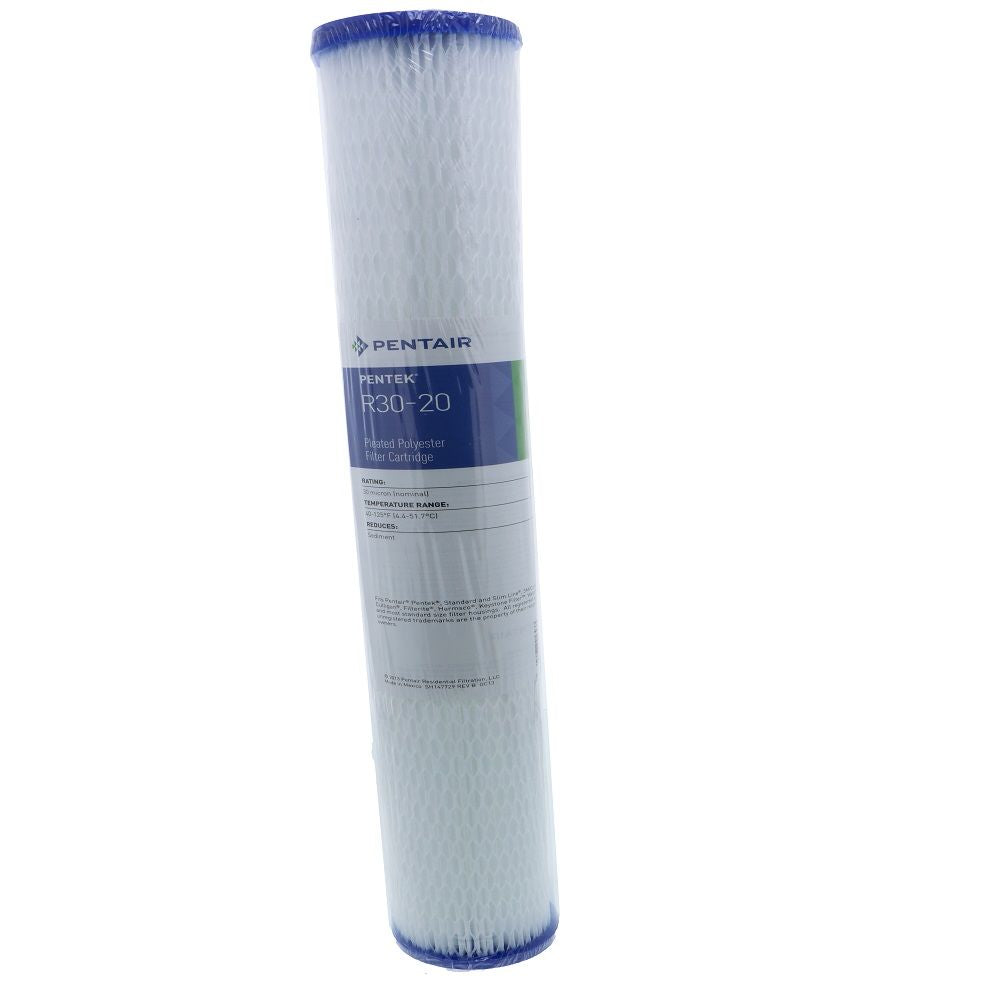

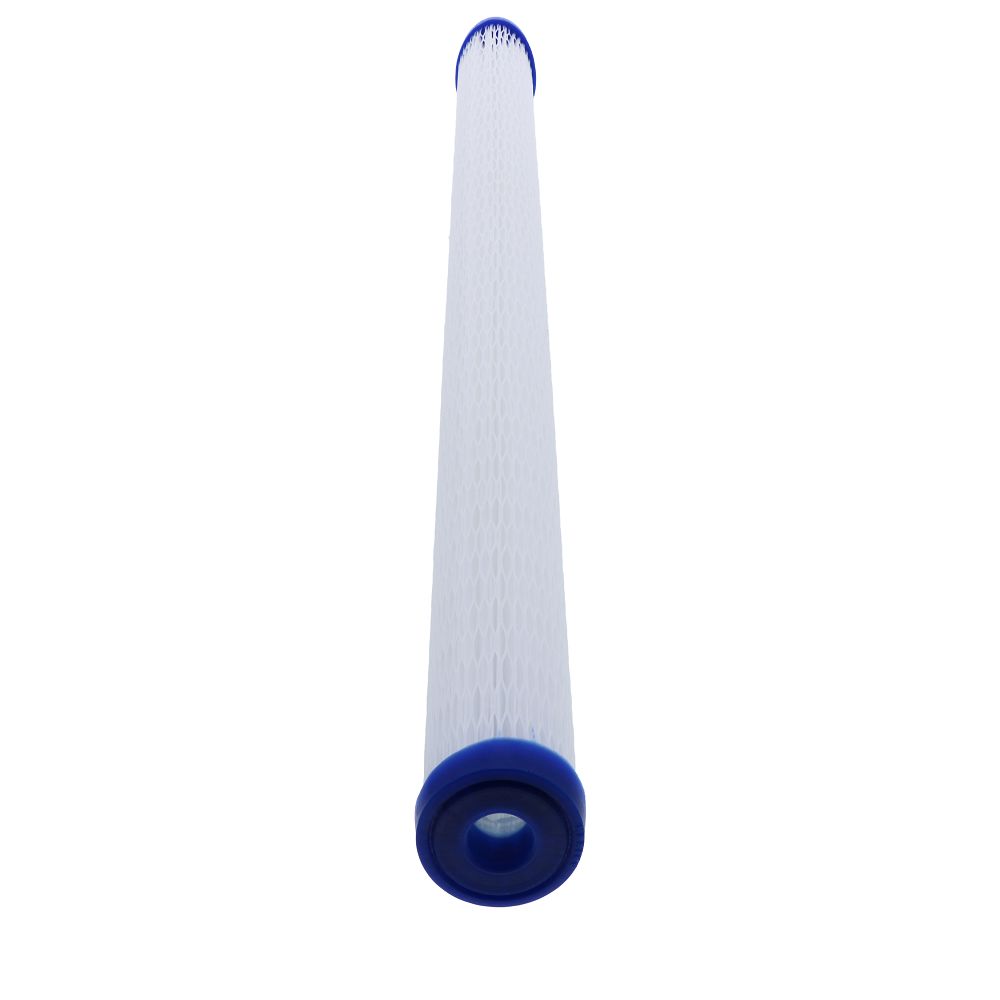

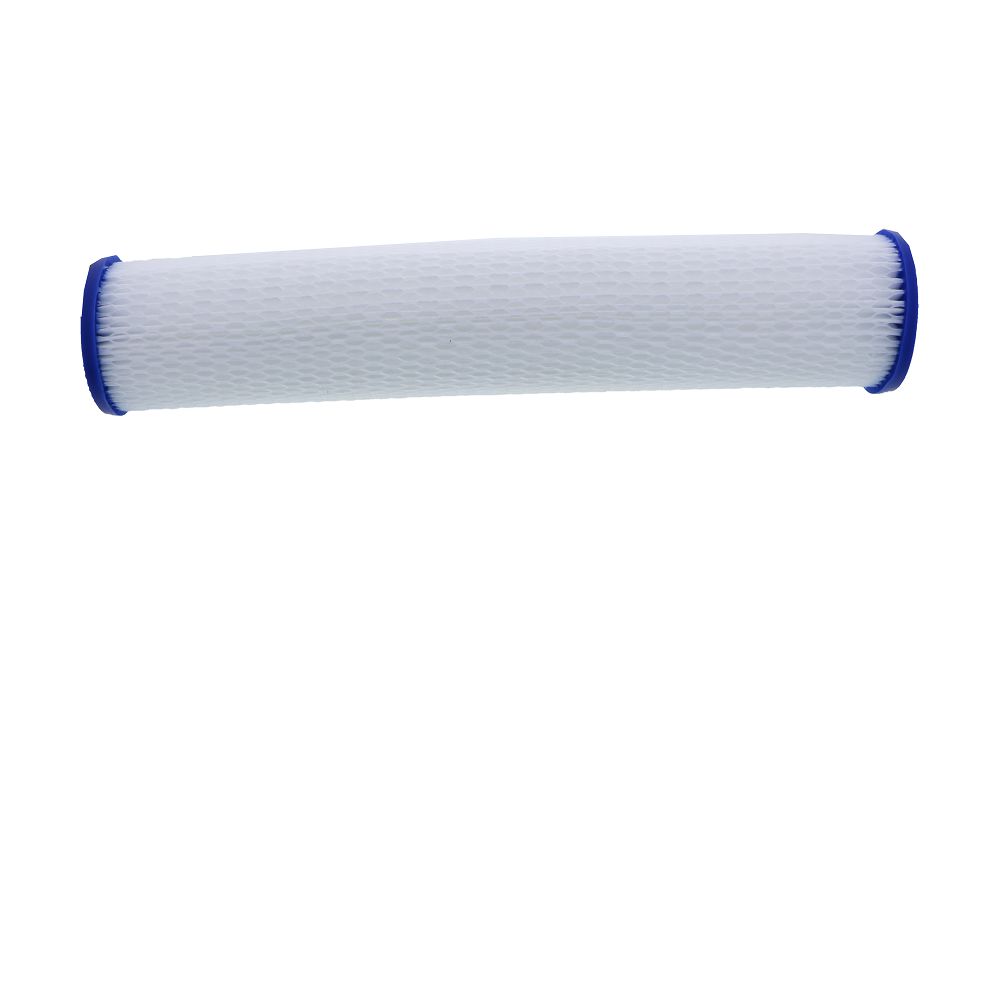

20" Pentek R30-20 Reusable Pleated Polyester 30 Micron Filter

Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Features:

• Replacement filter for most 20" Standard Housings
• Pleated design maximizes dirt-holding capacity
• Versatile and reusable, allowing for a variety of uses
• Durable non-woven polyester media is bacteria and chemical resistant
• Applications: potable water, light industrial applications, swimming pool and spa, and well water applications

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Initial Pressure Drop	1 PSI Differential
Max Temp (°F)	125
Micron Rating (Nominal)	30 µm
Min Temp (°F)	40
Psid@Flow Rate	<1 psid @ 10 GPM
Recommended Flow Rate	10 GPM
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-5/8"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Pleated
Filter Type	Pleated
Flow Rate	10 GPM
Media Type	Non-Woven Polyester
Micron Rating	30 µm
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	2.75
Product Length	20
Product Width	2.75
Product Weight (lbs)	1
