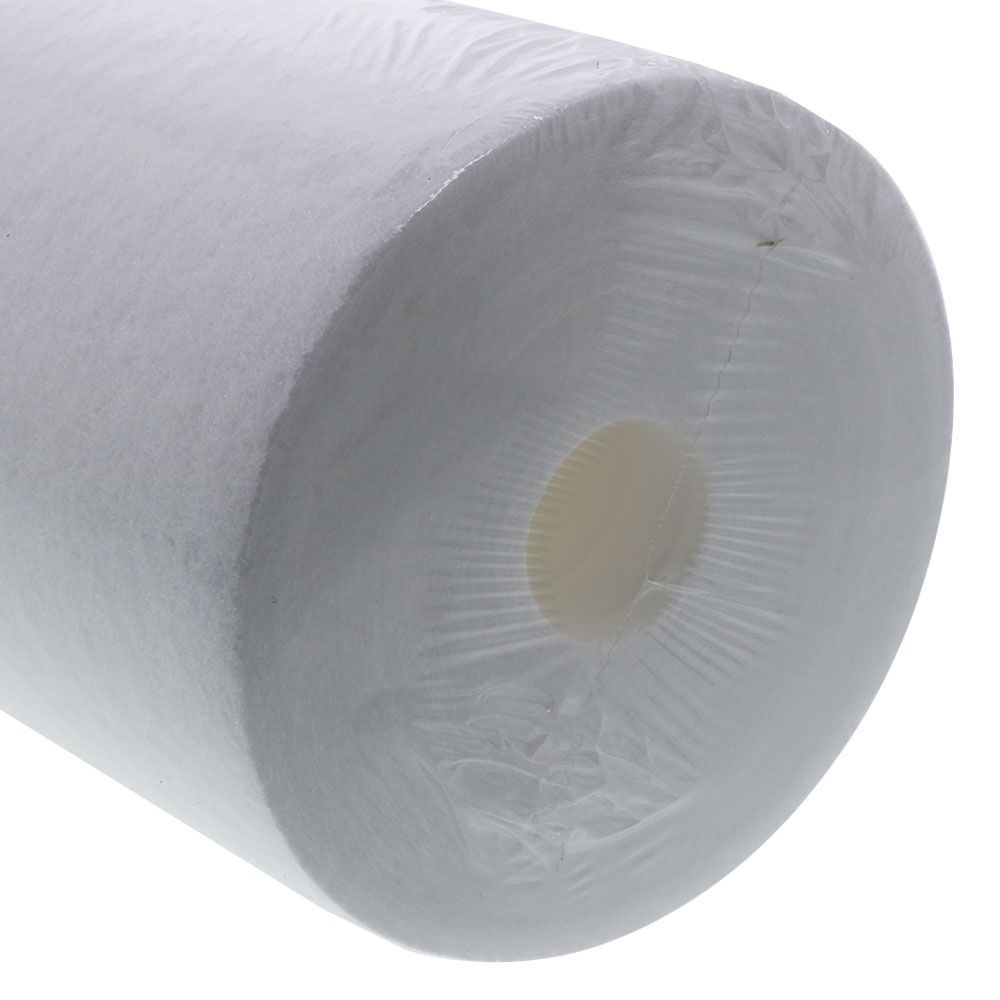

Pentair 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic

The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155356-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

Features:

• Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
• All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.
• Ensures Your Water is Pure and Clean. The outer layer is a 75 micron pre-filter that takes out larger sediment, thus reducing the load on the 25 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Additional Specifications:

• Length: 20"
• Diameter: 4-1/2"
• Micron Rating: Pre 75 μm / Post 25 μm
• NSF 42 Certified

NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Initial Pressure Drop	<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) PSI Differential
Max Temp (°F)	145
Micron Rating (Nominal)	25µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psid @ 20 GPM
Recommended Flow Rate	10 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	10 GPM
Media Type	Polypropylene
Micron Rating	25 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	20
Product Width	4.5
Product Weight (lbs)	2
