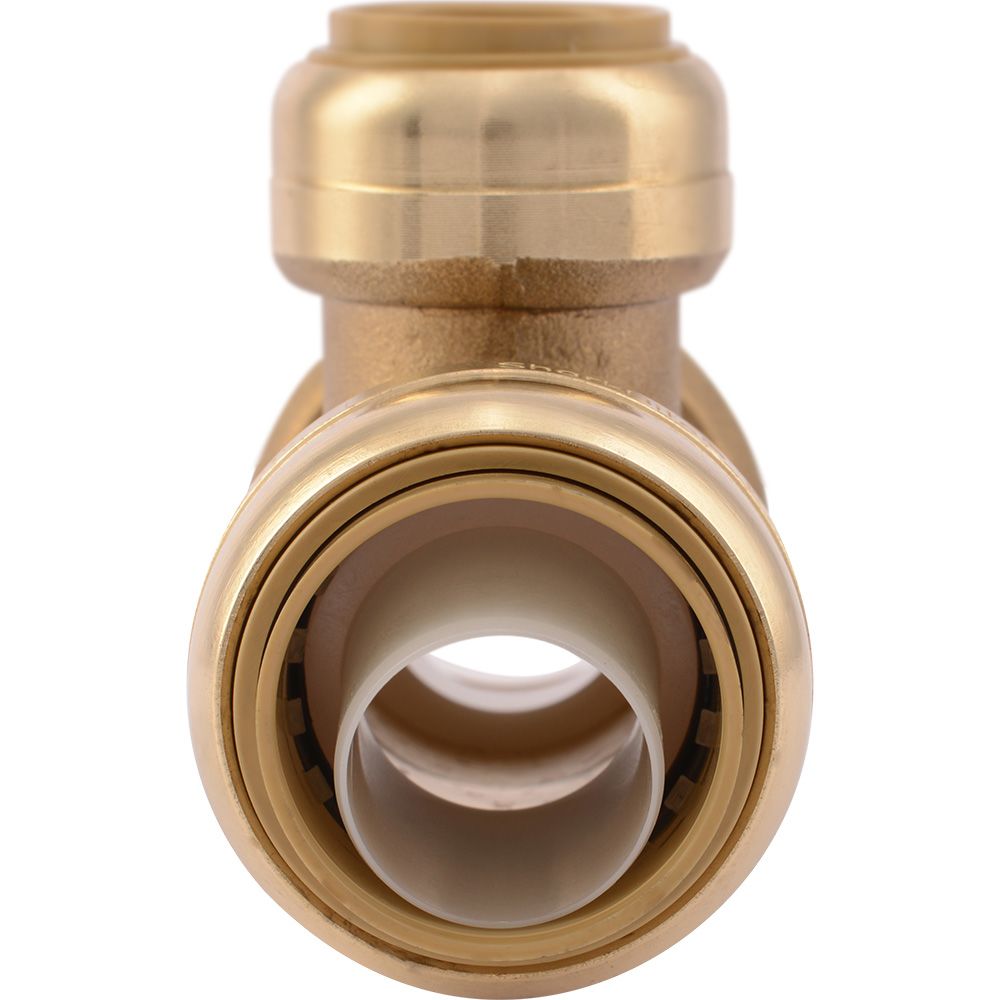

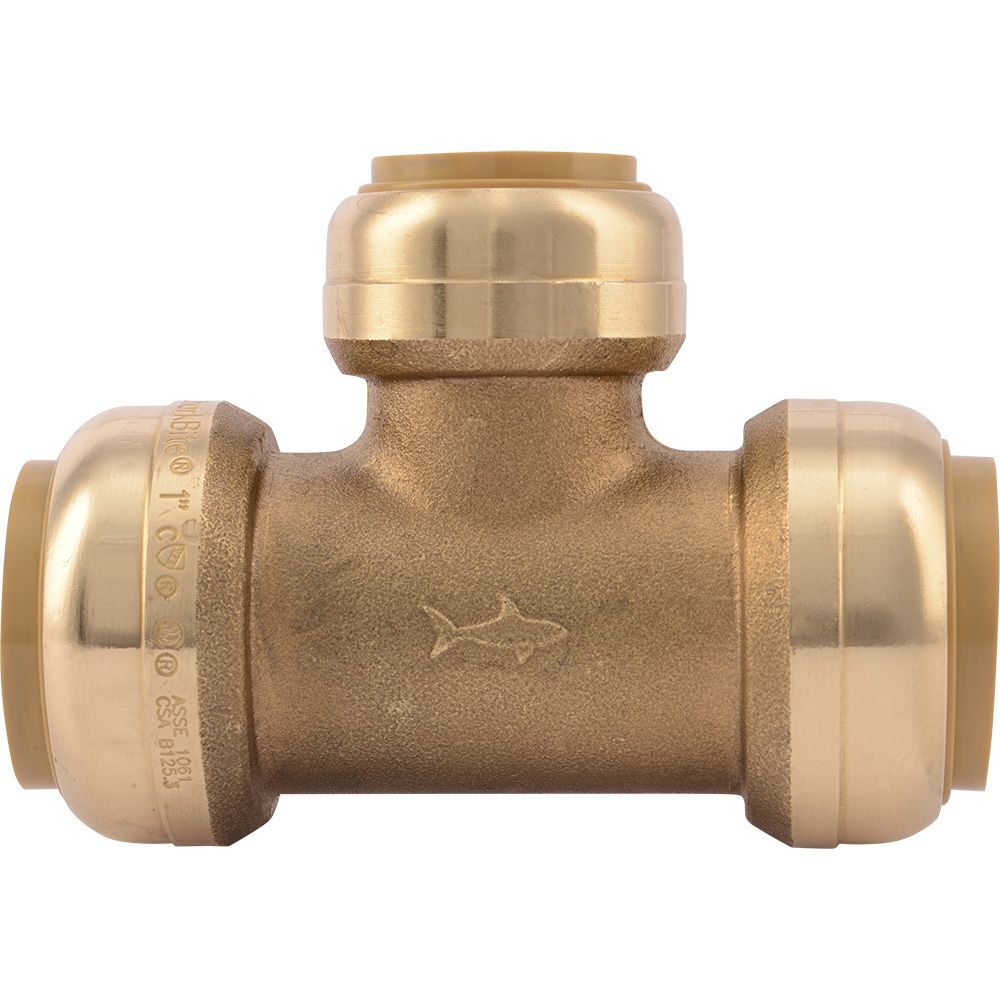

SharkBite® U416LF Lead-Free Brass Push-to-Connect Reducing Tee - 1" x 1" x 3/4"

The SharkBite® U416LF Push-to-Connect Brass Reducing Tee is designed to join piping together without the need of soldering, glue, tape, or clamps. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If the U416LF reducing tee needs to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Potable water and hydronic heating

Features:

• Innovative push-to-connect quick and reliable connection
• Lead-free construction for durability and safety
• Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
• Connect and Go - No additional securing needed
• Corrosion resistant to prolong the lifecycle of the fitting
• Demount or Disconnect Clip sold separately
• Compact and robust lead-free DZR brass body for strong corrosion resistance
• Pipe Insertion Depth for 1" Fitting: 1.313"
• Pipe Insertion Depth for 1/2" Fitting: 0.938"

NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Lead-Free Brass
Max Pressure (Psi)	200
Max Temp (°F)	200
O-Rings	EPDM
Push-In Size	1" ID 1-1/8" OD 3/4" ID 7/8" OD
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25 Year
Shipping Dimensions
Shipping Length	3.5 in.
Shipping Width	2.5 in.
Shipping Height	1.75 in.
Product Weight & Dimensions
Product Height	1.75
Product Length	3.5
Product Width	2.5
Product Weight (lbs)	0.508
