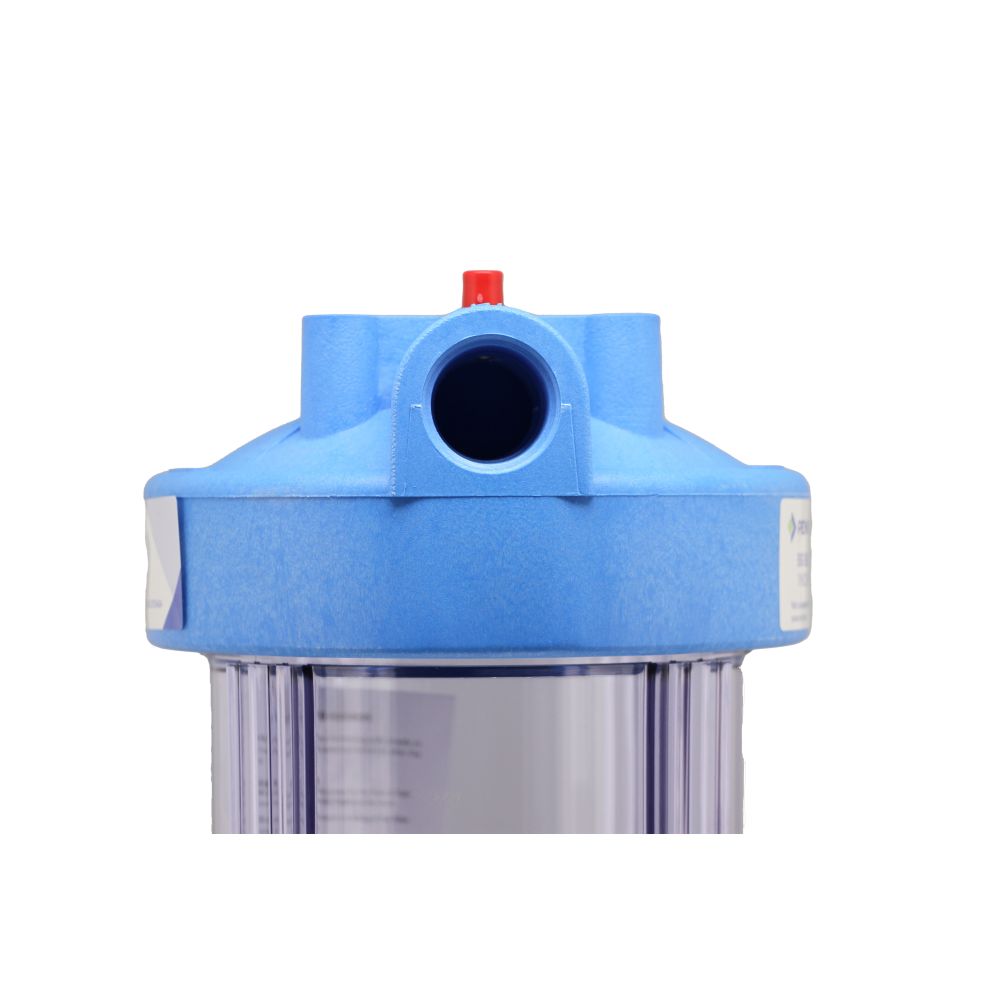

Pentek 166201 1" #20 Big Clear (SAN) Blue/Clear w/PR

This Pentek 166201 #20 Big Clear (SAN) Blue/Clear w/PR offers on-site examination of flow, performance, and cartridge life and are ideal for a variety of applications. The 1" polypropylene caps are available with a pressure-relief button on the inlet side to relieve pressure inside the housing. The cap is available with 1" NPT inlet and outlet ports. The 1-1/2" internal port allows a greater volume of liquid to pass through the cap more rapidly.

Features:

• Large capacity housing suitable for high flow applications
• Pressure relief/bleed on inlet side of cap
• Accepts up to 4-1/2" diameter cartridges

Specifications:

• Housing: SAN (#20)
• Cap: Polypropylene
• Button Assembly: 300-Series stainless steel, EPDM, and polypropylene
• O-Ring: Buna-N
• Temperature Rating: 40-100F (4.4-37.8C)
• Maximum Pressure: 90 psi (6.2 bar)

This Pentek 166201 #20 Big Clear (SAN) Blue/Clear w/PR is a single filter housing purchase. Big Clear filter housings are available in multiple sizes (as depicted in the image above)



California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	Blue
Features	Pressure Relief
Inlet Connection	1" FPT
Outlet Connection	1" FPT
Size	20"
Color / Finish	Clear
Type	Bag Filter Vessels
Shipping Dimensions
Shipping Length	7.25 in.
Shipping Width	7.25 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	7.28
Product Length	23.22
Product Width	7.28
Product Weight (lbs)	9
