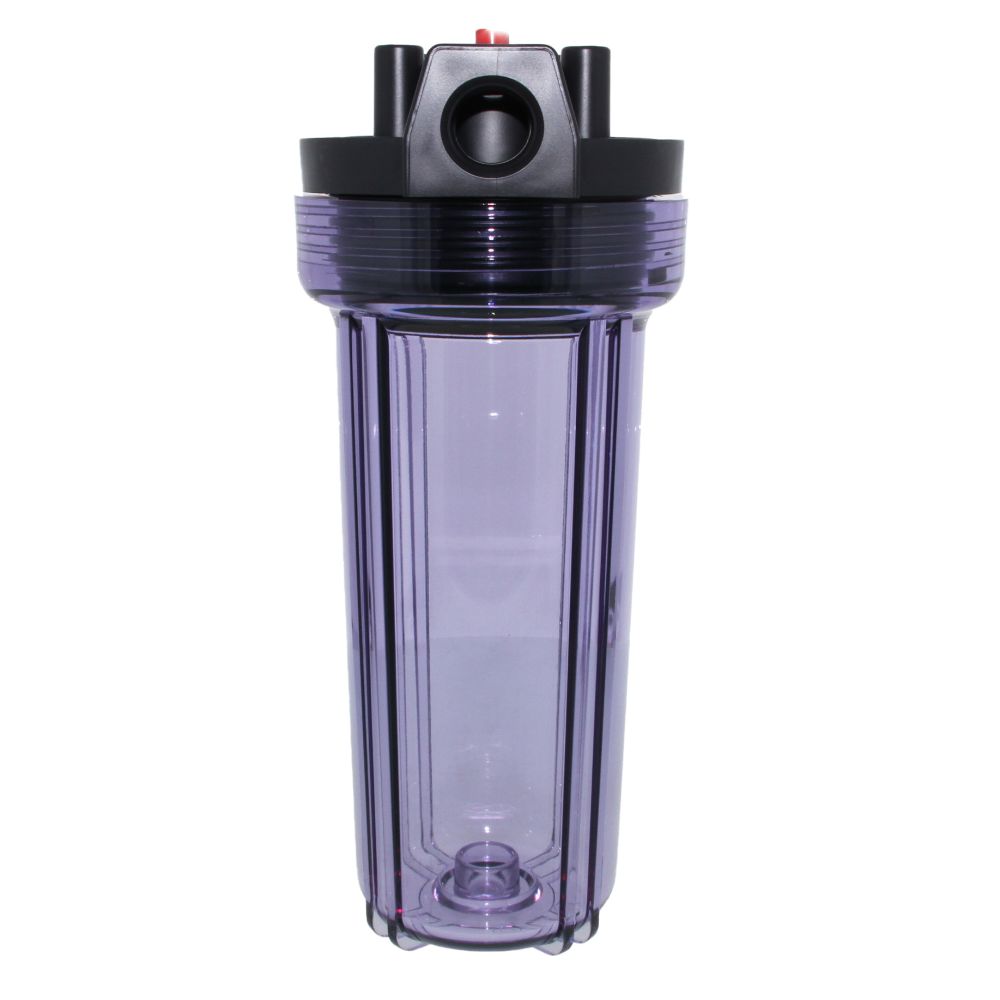

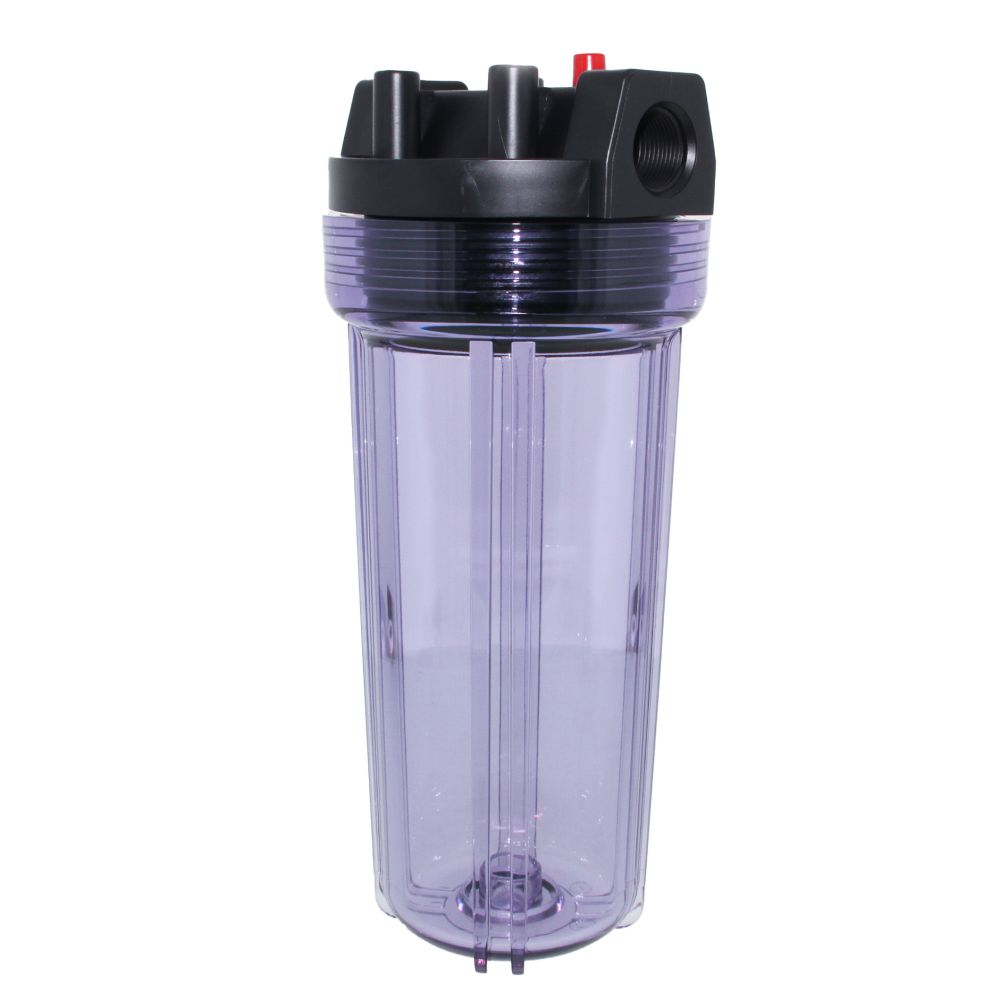

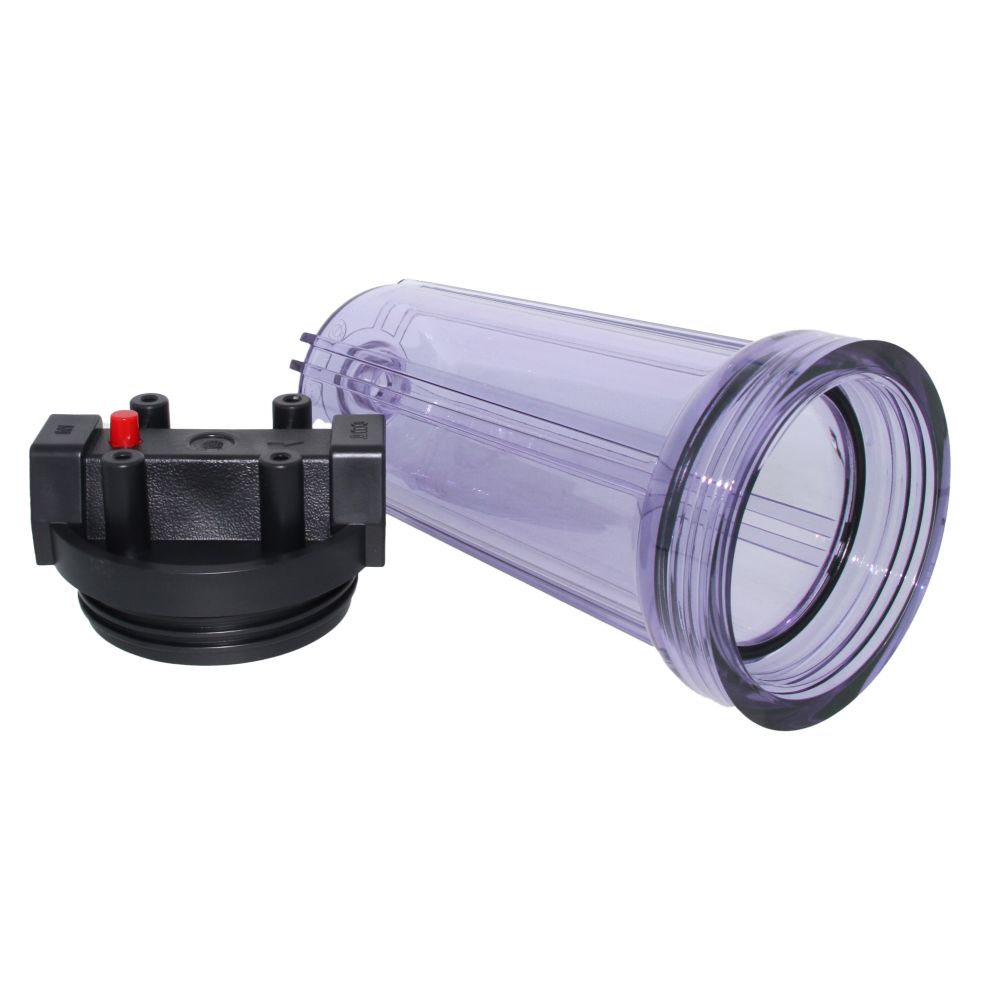

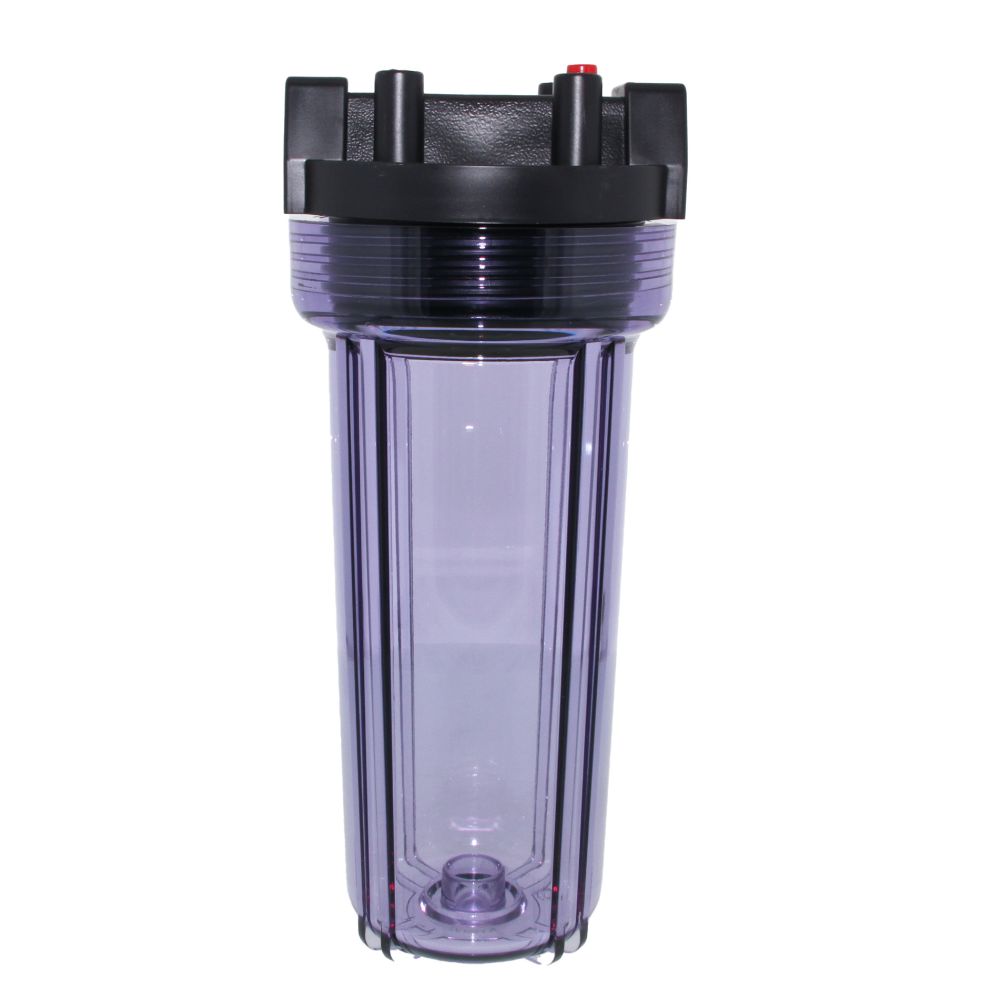

10" Neo-Pure Standard Water Filter Housing Black/Clear with Pressure Relief - 3/4" FPT

Neo-Pure Standard Water Filter Housings offer flow, performance and cartridge life and accommodate a wide range of 10" 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications. These housings are made of durable reinforced polypropylene cap and a styrene acrylonitrile (SAN) sump and come equipped with 3/4" NPT inlet and outlet ports. The clear sumps are annealed to relieve stress and to add clarity and strength.

Features:

• Ideal for a wide range of applications, including residential, commercial and industrial
• Cap features mounting bosses for a bracket (not included)
• Thick walls for increased strength
• Pressure relief/bleed button on inlet side of cap
• Leak-proof sealing with top-seated OR-FHST-N Buna-N O-ring
• Excellent chemical resistance

NOTE:
Filter & Mounting Bracket NOT Included
Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Refer to this chart for Filter Cartridge recommendations:

Size	Contaminant	Chlorine Reduction	VOC Reduction	Advanced*	Chloramine Reduction**
10"	Standard	CTO1-2510	CTOV-2510	CTOX-2510	CHLM-2510

*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Styrene Acrylonitrile
Inlet Connection	3/4" FPT
Max Pressure (Psi)	90
Max Temp (°F)	125
Mounting Options	Mounting Bosses
O-Rings	Buna-N
Outlet Connection	3/4" FPT
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	5.125
Product Length	12.375
Product Width	5.125
Product Weight (lbs)	3
