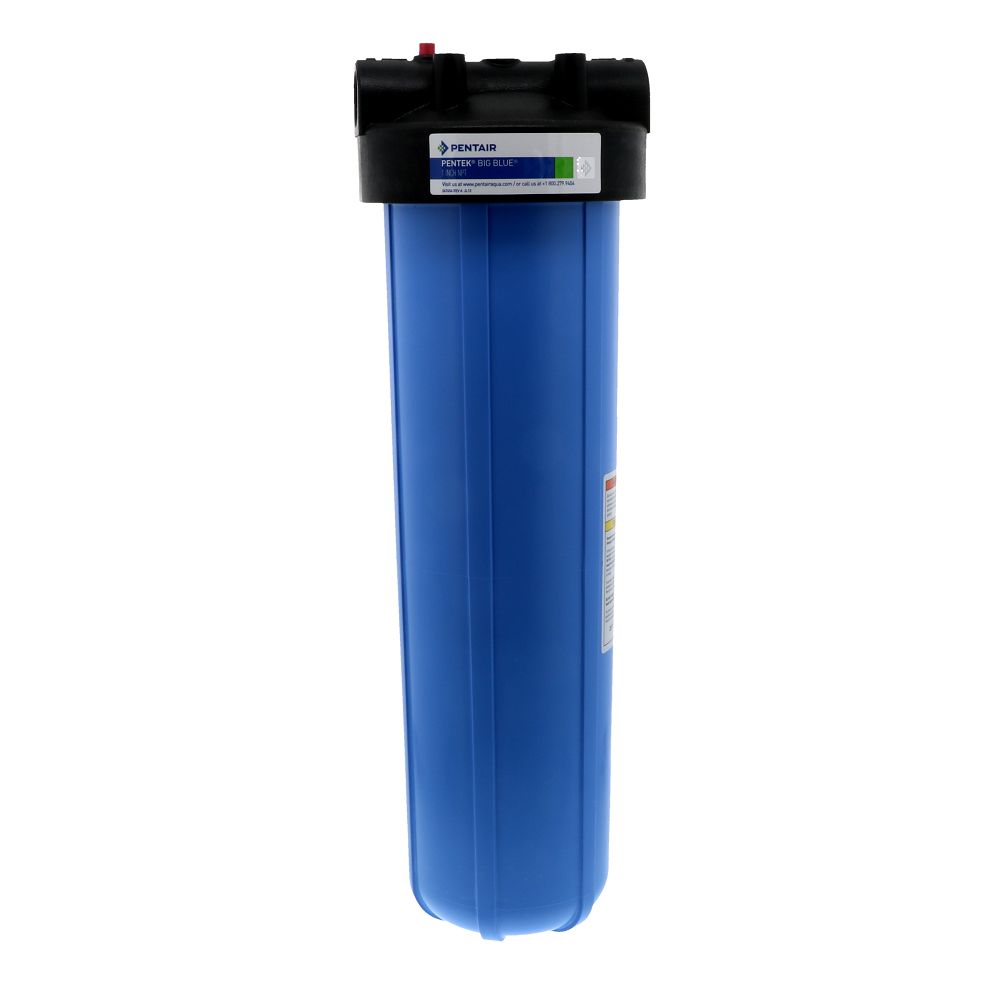

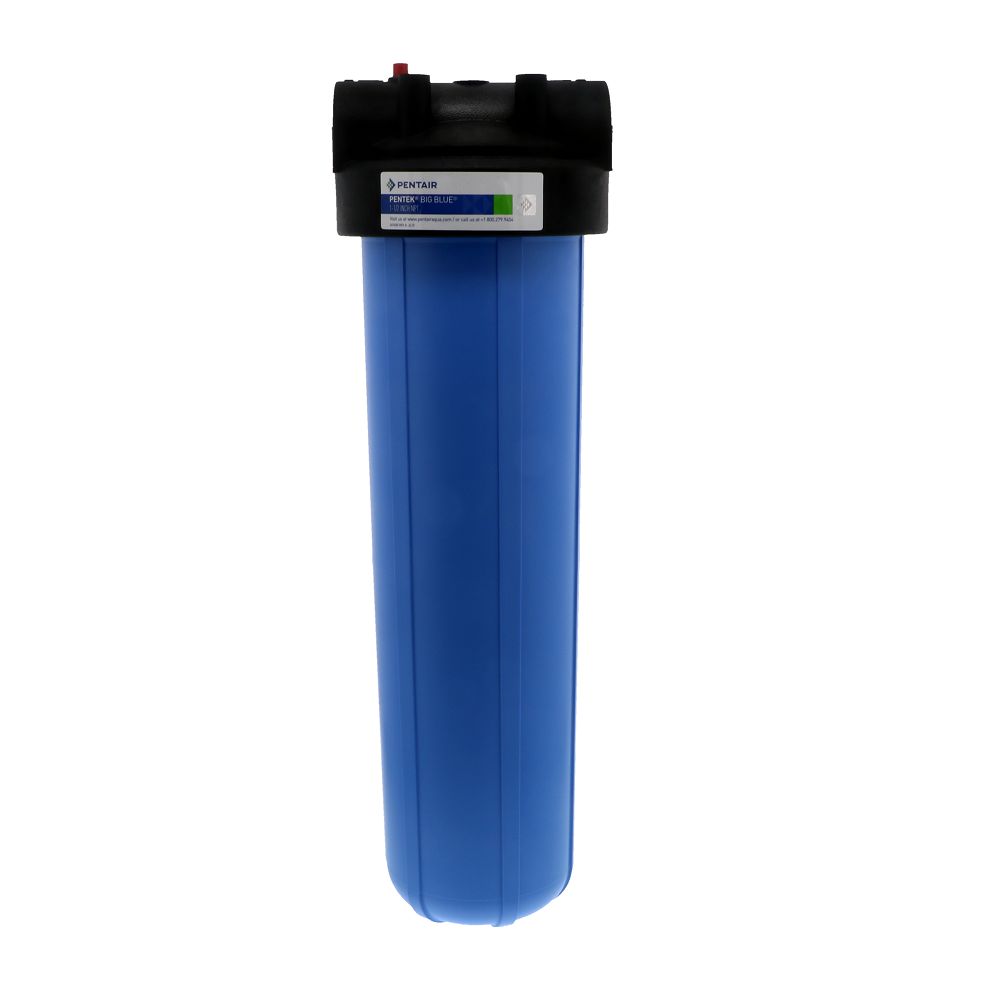

Pentek 20" Big Blue Water Filter Housing With Pressure Relief

Pentek 20" Big Blue Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big Blue Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:

• Polypropylene cap and sump
• 151122 Buna-N O-ring
• Max Temperature: 100°F
• Max Pressure: 90 psi (6.2 bar)
• NSF Certified to Standard 42

Compatible with:

Ice House America®	IHA - H00634
3M Water Filtration	AP802
Fresh Water Systems	FHAP802-1PR, FHAP802-1.5PR

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1-1/2" FPT
Max Flow Rate	15 GPM
Max Pressure (Psi)	90
Max Temp (°F)	100
O-Rings	Buna-N
Outlet Connection	3/4" FPT,1" FPT,1-1/2" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Size	20"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Origin	China
Type	Heavy Duty (Big Blue,White,Black®)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	24.75 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	23
Product Width	7.25
Product Weight (lbs)	7.507
