3M 1M Series 10" Clear Housing w/ 3/4" NPT connection

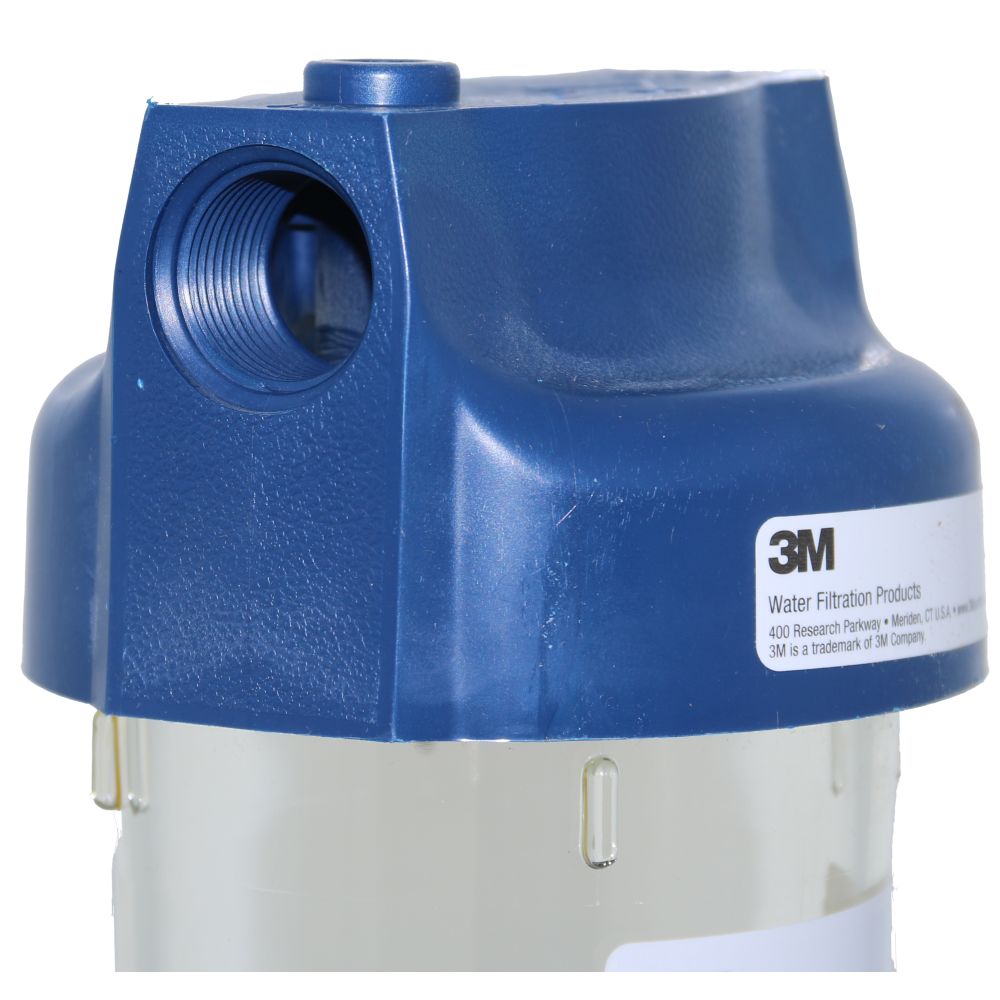

The Solventum Cuno Valved Head is a 10" filter housing replacement that features a 3/4" NPT connection with a 1/2" adapter. Its slim design and high chemical compatibility make it ideal for those challenging low-flow filtration applications.

Valve-In-Head designs relieve pressure for convenient cartridge changes: Turn to shut off water, then remove housing from head assembly.

Features:

• Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
• Also accepts standard size DOE (double open end) cartridges
• Accepts variety of cartridges.
• Leak-proof sealing with top-seated 151121 Buna-N O-ring
• Thick walls for increased strength
• Excellent chemical resistance

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Features	Valve-In-Head
Housing Material	Styrene Acrylonitrile
Inlet Connection	3/4" FPT
Max Flow Rate	8 GPM

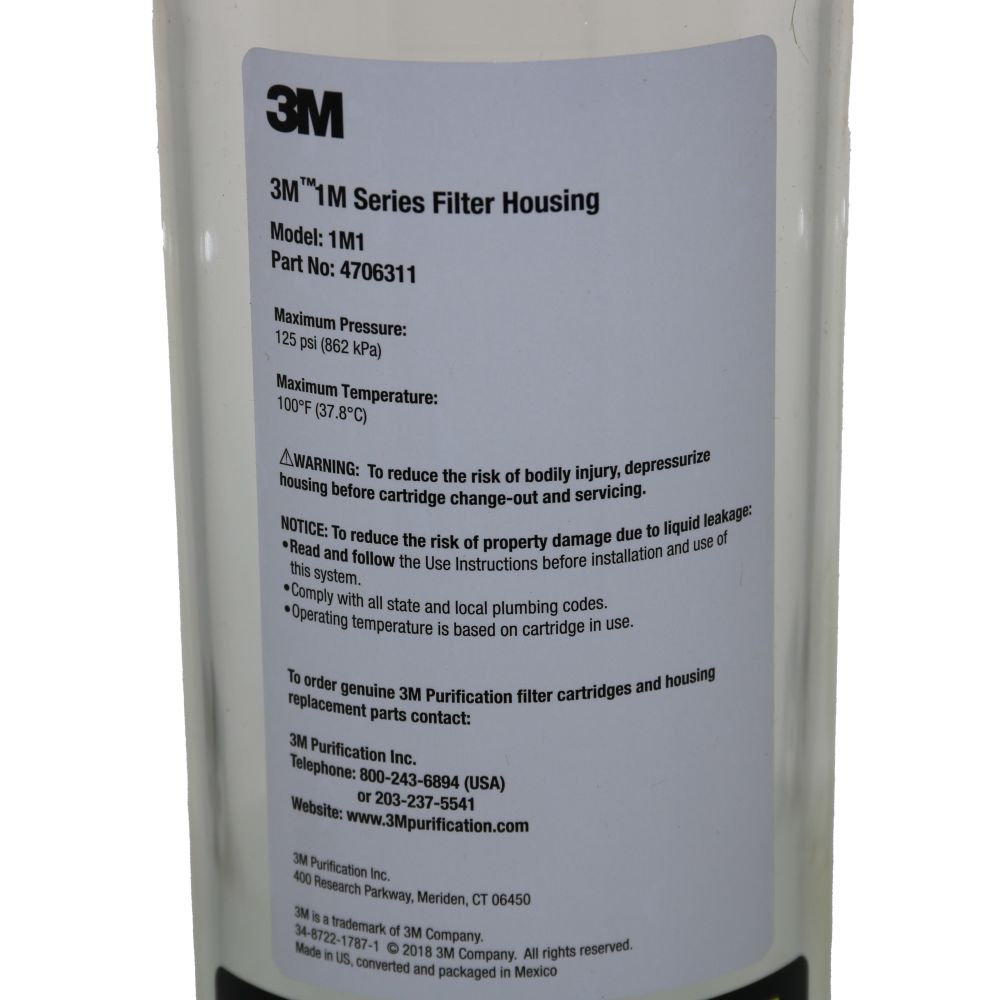

Max Pressure (Psi)	125
Max Temp (°F)	100
Outlet Connection	3/4" FPT
Size	3/4"
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Shipping Dimensions
Shipping Length	16 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	10"
Product Weight (lbs)	3.2
