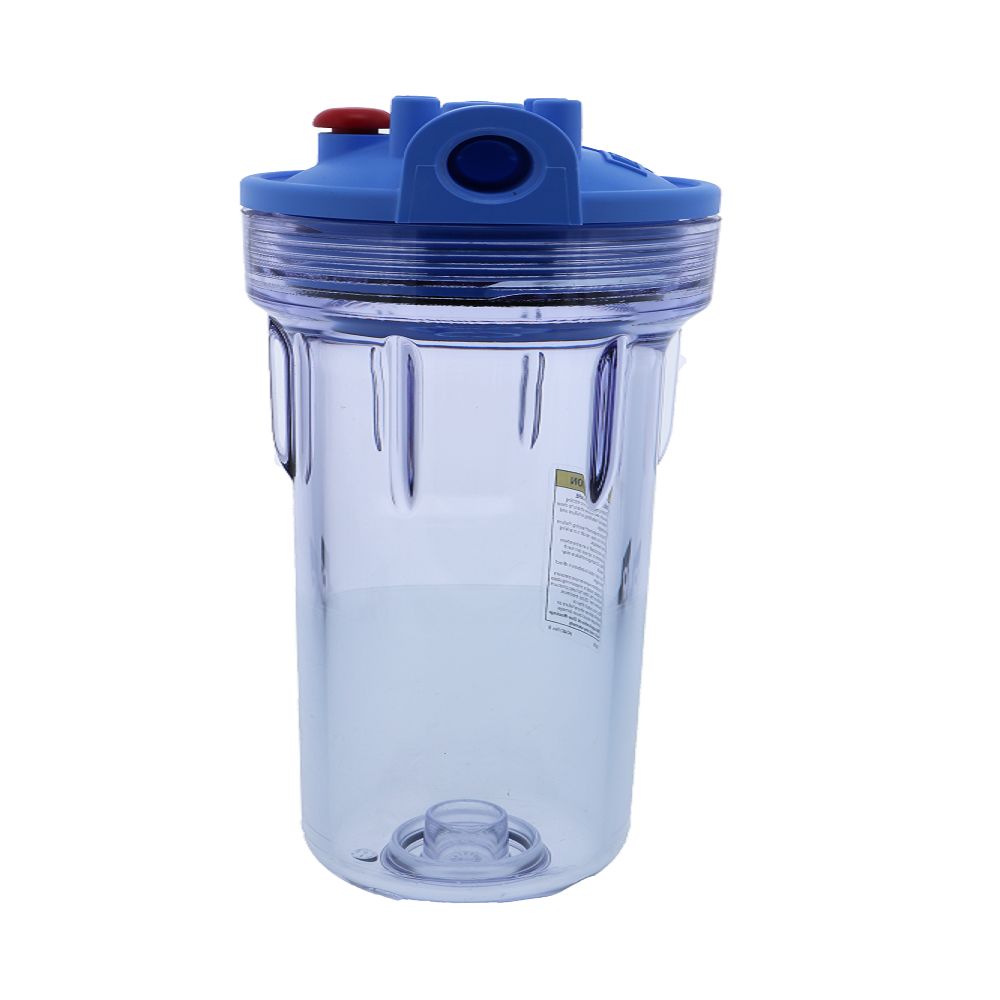

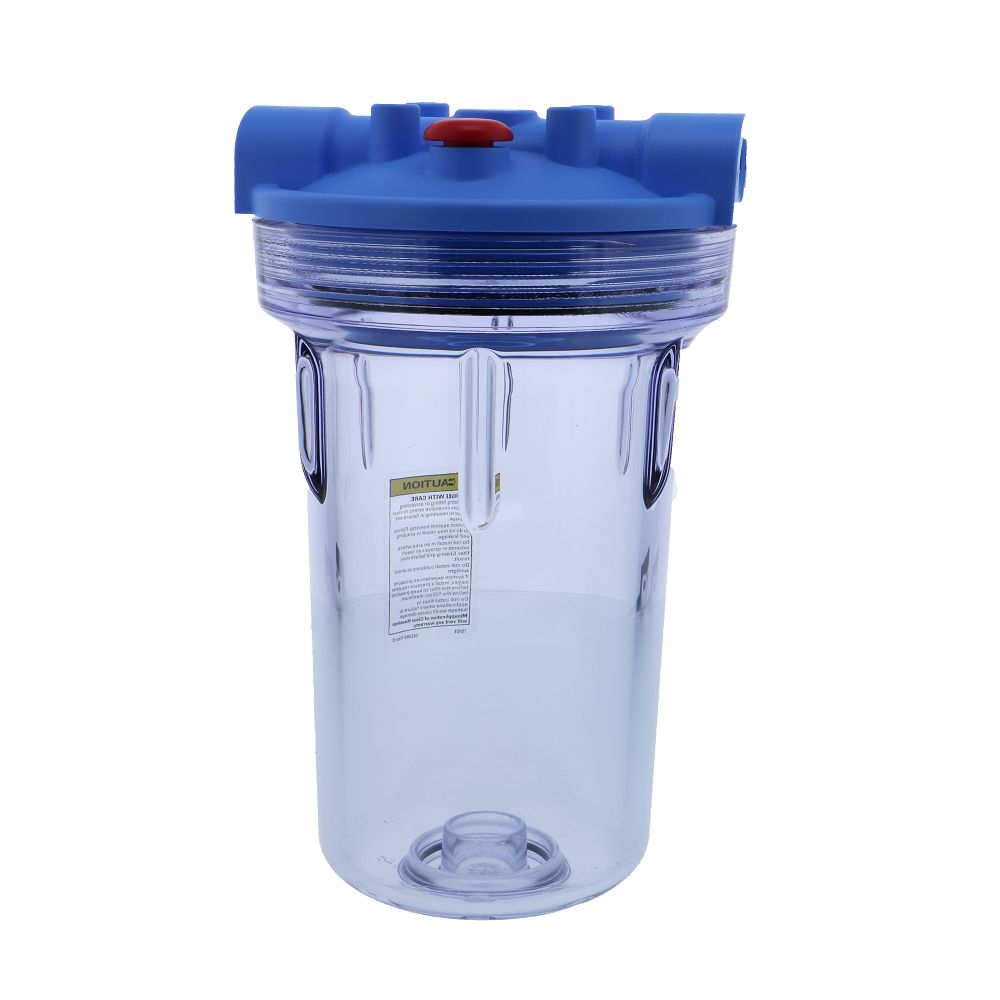

Pentek 10" 3G Slim Line Filter Housing Blue/Clear MB w/ PR - 1/2" FPT

Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.

Specifications:

• Housing accepts our proprietary Seal-Safe double o-ring sealing cartridges
• Also accepts standard size DOE (double open end) cartridges
• Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
• Buttress threads for additional strength and easier cartridge changes
• Leak-proof sealing with top-seated 151121 Buna-N O-ring
• Thick walls for increased strength
• Excellent chemical resistance
• Cap has mounting bosses for bracket (not included) and pressure relief button

Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.



Refer to this chart for Filter Cartridge recommendations:

Size	Contaminant	Chlorine Reduction	VOC Reduction	Advanced*	Chloramine Reduction**
10"	Standard	CTO1-2510	CTOV-2510	CTOX-2510	CHLM-2510

*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	Blue
Features	Pressure Relief
Housing Material	Styrene Acrylonitrile
Inlet Connection	1/2" FPT
Max Pressure (Psi)	125
Max Temp (°F)	125
Mounting Options	Mounting Bosses
O-Rings	Buna-N
Outlet Connection	1/2" FPT
Psid@Flow Rate	2 PSI @ 5 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Type	Slimline
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	12.625
Product Width	4.625
Product Weight (lbs)	2.5
