PAE TP-12P Reverse Osmosis Plasteel Storage Tank 3.2 Gal

The PAE TankPAC TP-12P is built with FDA approved materials. The water storage chamber features a virgin polypropylene liner, high-grade chlorobutyl diaphragm and stainless steel 1/4" MPT water connection. The diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free.


Note: Please refer to the chart under the documentation/videos tab for information regarding capacity. The volume stated is total capacity, not water storage volume.

Maintenance Free.

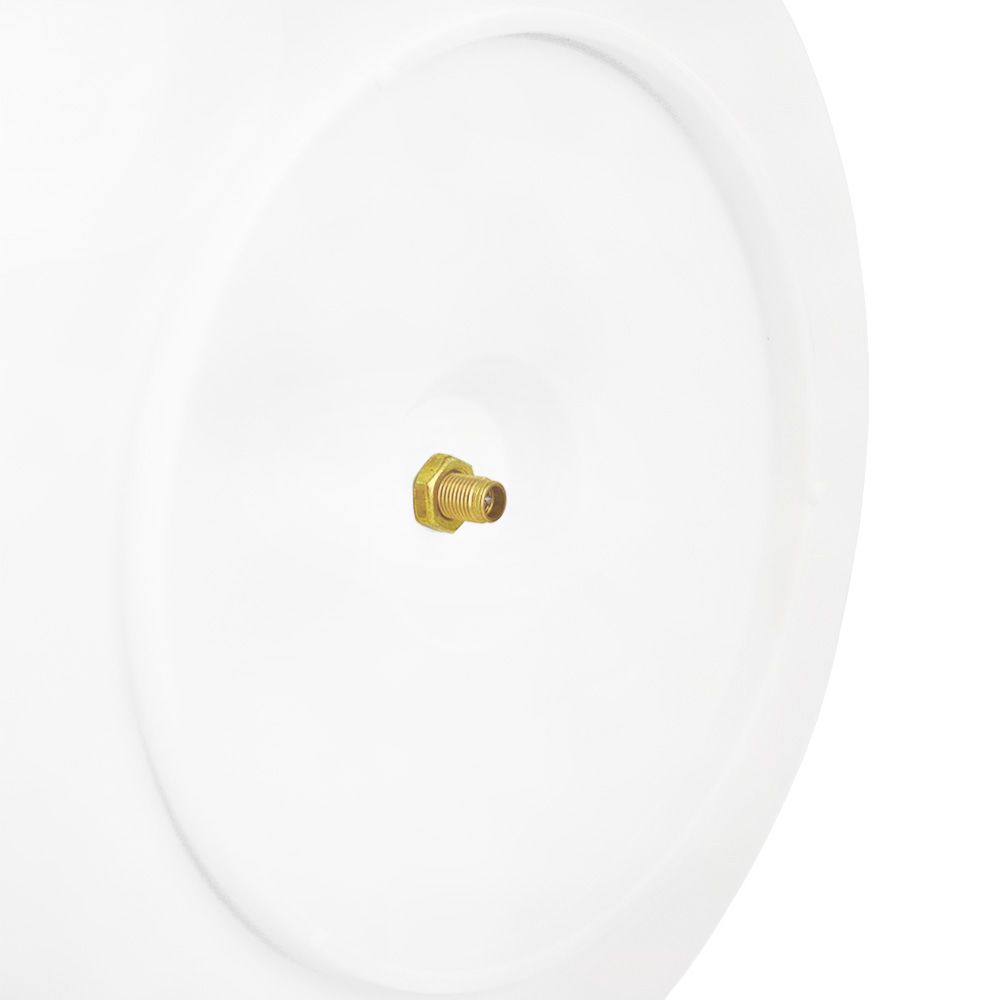

The ROT-3.2-P tank is built with a sealed brass air valve and o-ring sealed cap to ensure a leak-free air chamber, meaning no more checking the air precharge.

NSF Certified.
This product is certified to NSF/ANSI Standard 58 for the reduction of contaminants using reverse osmosis technology.

Additional Specifications:

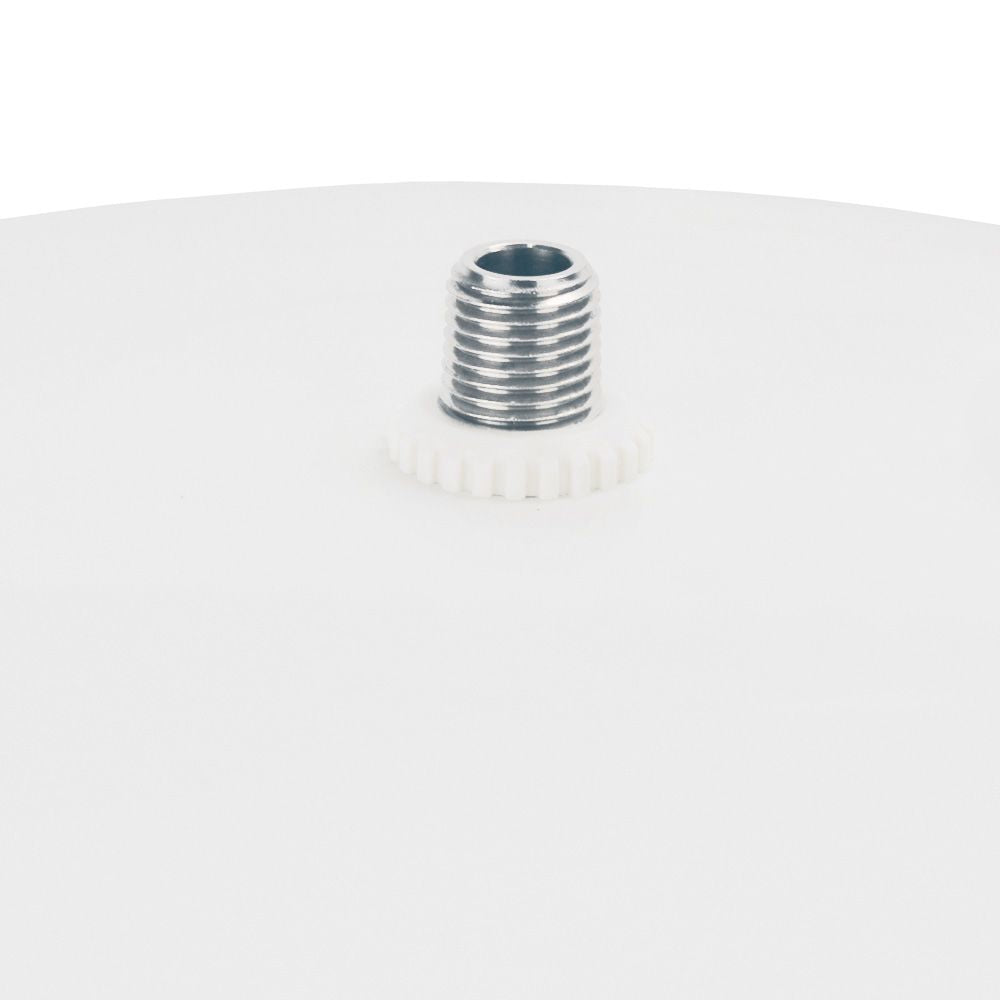

• Stainless steel water connection
• High-grade chlorobutyl diaphragm
• Virgin polypropylene liner
• CE approved
• BPA free

Reverse Osmosis Tank Maintenance and Accessories:

A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4
valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG
valve.
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge
reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.

Compatible with:

Hague®	200100
Marlo	C2000, A2225024

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	2 Gallons @ 40 psi
Diaphragm Materials	Butyl Rubber
Inlet Connection	1/4" MPT
Max Pressure (Psi)	100
Max Temp (°F)	104
Outlet Connection	1/4" MPT
Size	1/4"
Volume	3.2
Connection Type	Male (MPT)
Diameter	9.4"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	1 Year
Shipping Dimensions
Shipping Length	15.5 in.
Shipping Width	9.5 in.
Shipping Height	9.5 in.
Product Weight & Dimensions
Height W/O Stand	14.3"
Product Height	9.5 in.
Product Length	15.5 in.
Product Width	9.5 in.
Product Weight (lbs)	7
