Therm-X-Span T-12 Thermal Expansion Tank 4.4 gal

The Therm-X-Span T-12 Thermal Expansion Tank is a pre-pressurized diaphragm expansion tank. The tank is installed on the cold water supply line to the water heater to control pressure build up caused by thermal expansion. Installing the T-12 will virtually eliminate relief valves spills, protect plumbing fixtures and extend the life of your water heater.

Specifications:

• Diaphragm Material: Butyl Rubber/EPDM
• Factory Pre-Charge: 40 psig
• Max Operating Temperature: 200°F
• Max Working Pressure: 150 psig
• System Connection: 3/4" NPTM Brass

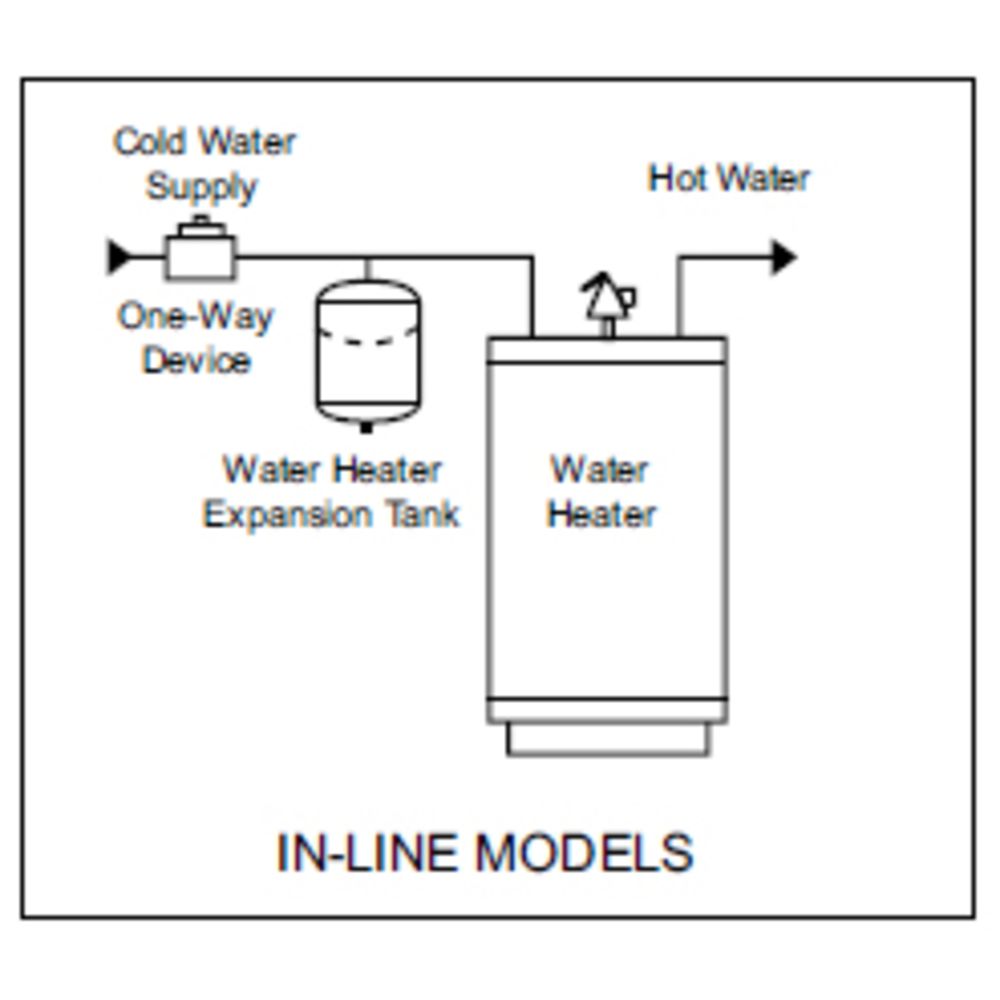

Install the expansion tank on the cold water supply line to the water heater at a point between the water heater and backflow preventer or other one-way device.

Note: Be sure to measure the system water pressure using a water pressure gauge, and make sure that the air pressure in the thermal expansion tank is the same as the system pressure. The thermal expansion tank is pre-charged to 40 psi. Verify the charge of the tank using a tank pressure gauge.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Butyl Rubber
Inlet Connection	3/4" MPT
Material Of Construction	Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	200
Outlet Connection	3/4" MPT
Size	3/4"
Volume	4.4 Gallons
Connection Type	Male (MPT)
Diameter	11"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	1 Year
Shipping Dimensions
Shipping Length	16 in.
Shipping Width	16 in.
Shipping Height	20 in.
Product Weight & Dimensions
Height W/O Stand	15"
Product Weight (lbs)	12
