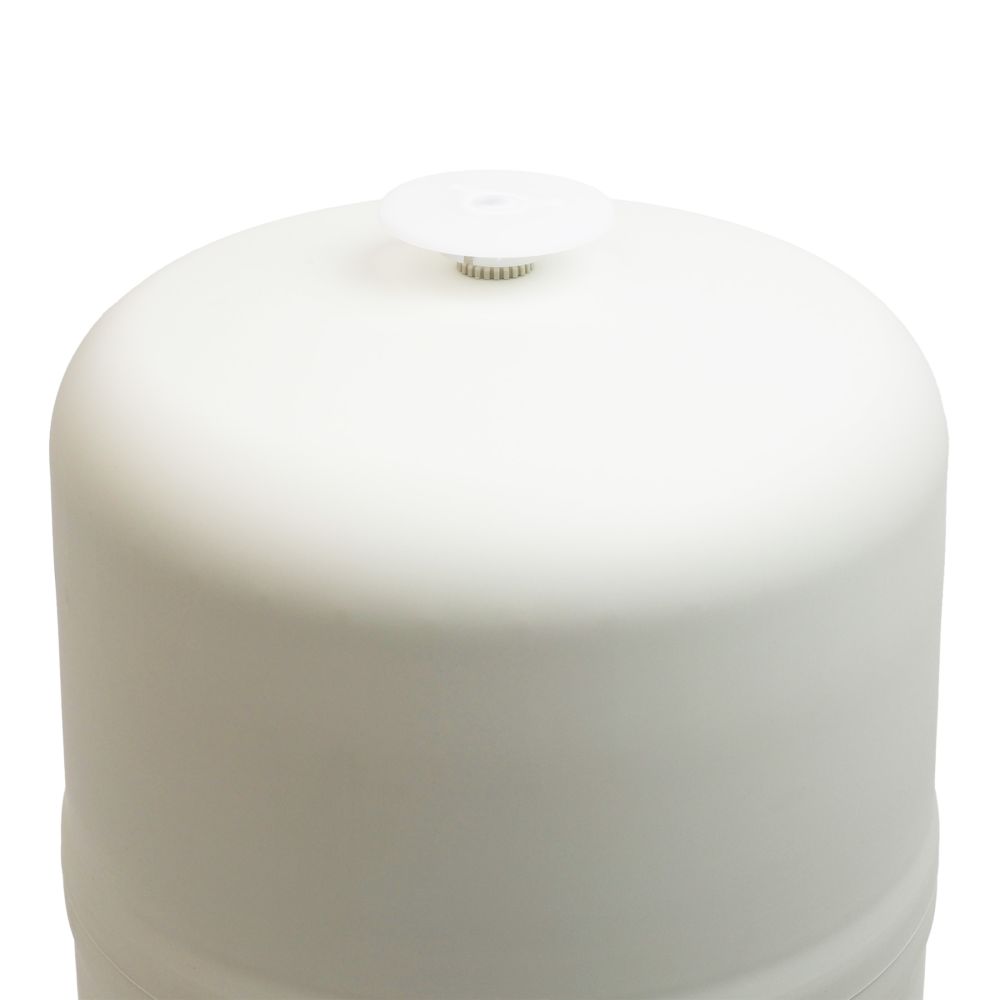

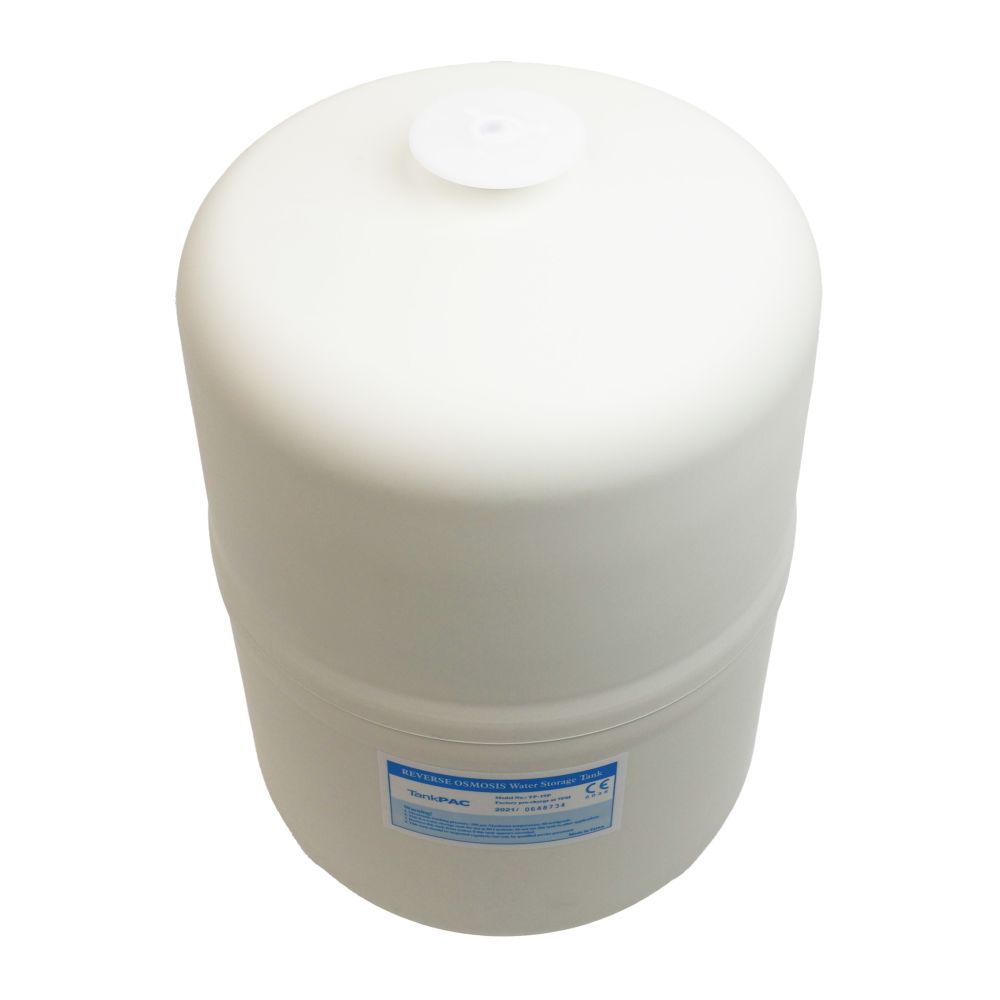

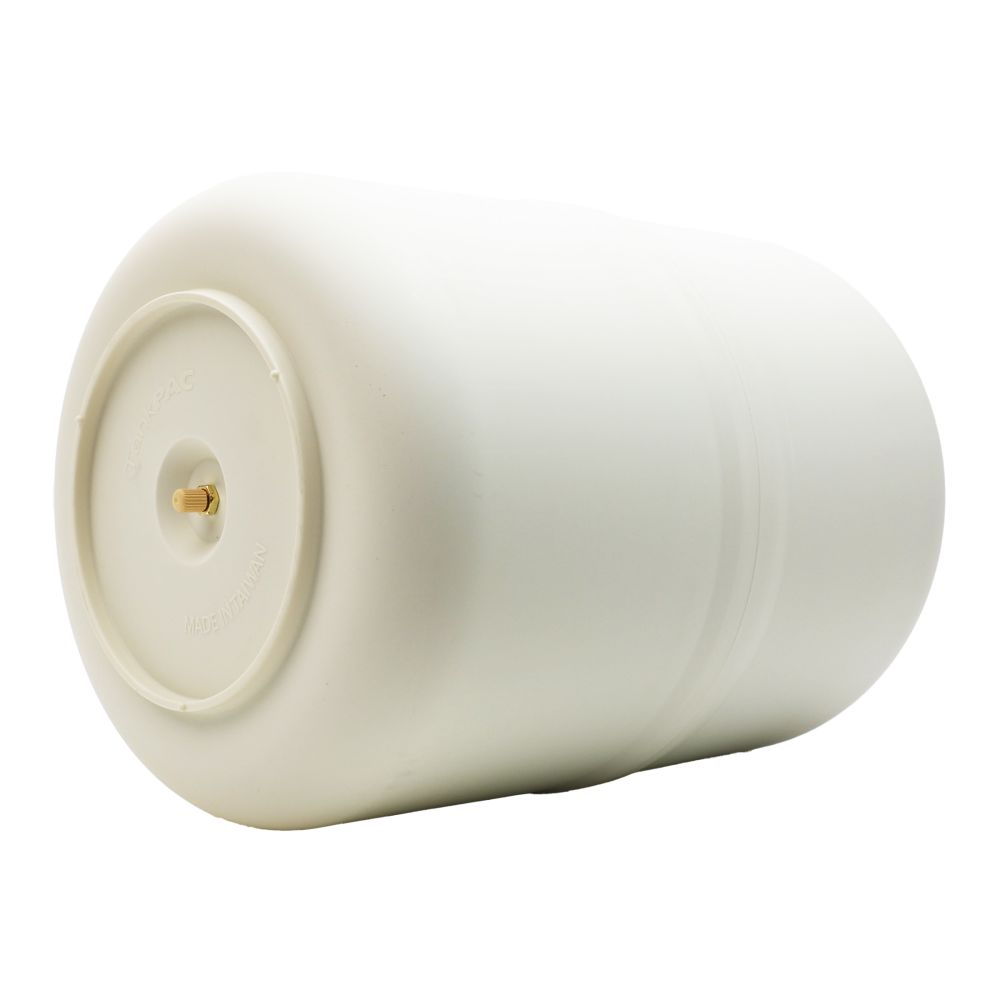

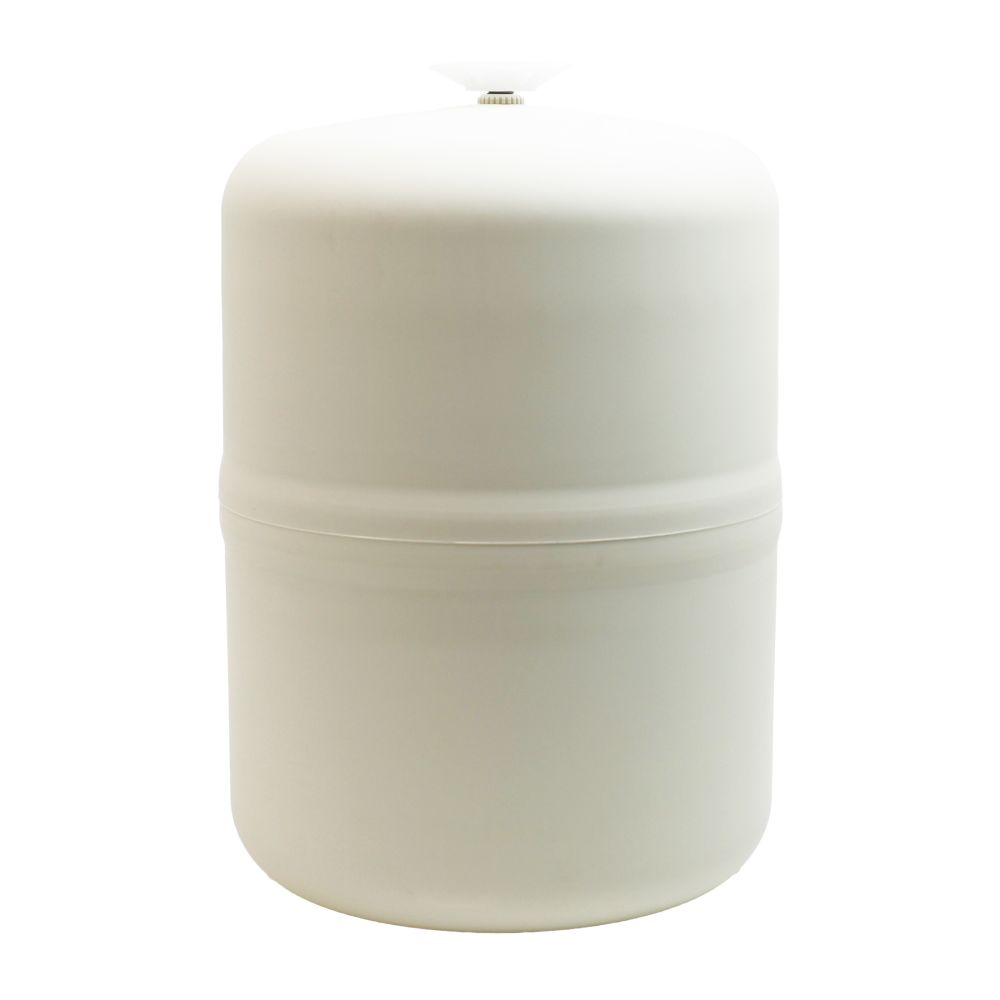

PAE TP-19P Reverse Osmosis Storage Tank Plastic Protective Shell Over Steel Tank 5 Gal

The PAE TP-19P RO Tank is a steel five-gallon reverse osmosis tank with a polypropylene outer and inner layer. The TP-19P is constructed using FDA approved materials and has been extensively tested to ensure quality. This tank is also known as the ROT-5P.

Note
: Please refer to the chart under the documentation/videos tab for information regarding capacity. The volume stated is total capacity, not water storage volume.


Specifications:

• Steel tank wrapped in a plastic polypropylene shell

• Post-cured butyl rubber diaphragm

• Inlet/Outlet size: 1/4" MPT

• Capacity: 5 gallons total

• Maximum working pressure: 100 psi

• Pre-charged at 6 psi

• Max temperature: 104°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	RO Water Storage
Capacity	5 gallons total
Diaphragm Materials	Butyl Rubber
Inlet Connection	1/4" MPT
Material Of Construction	Polypropylene Stainless Steel
Max Pressure (Psi)	100
Max Temp (°F)	104
Outlet Connection	1/4" MPT
Size	1/4"
Connection Type	Male (MPT)
Diameter	11"
Origin	Taiwan
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	16.5 in.
Shipping Width	12 in.
Shipping Height	12 in.
Product Weight & Dimensions
Height W/O Stand	15.8"
Product Weight (lbs)	9
