HydroScientific Sciclone™ SC90SB-316 Swing Bolt 90 Single Jumbo Filter Housing

This Hydronix Sciclone™ SC90SB-316 Swing Bolt 90 Single Jumbo Filter Housing provides an exceptional performance housing design that helps separate dense solids prior to water passing through the filter cartridge. The Sciclonic™ design delivers extended filter life, low cost operation, reduced maintenance costs, and increased dirt holding capacity.

Features:

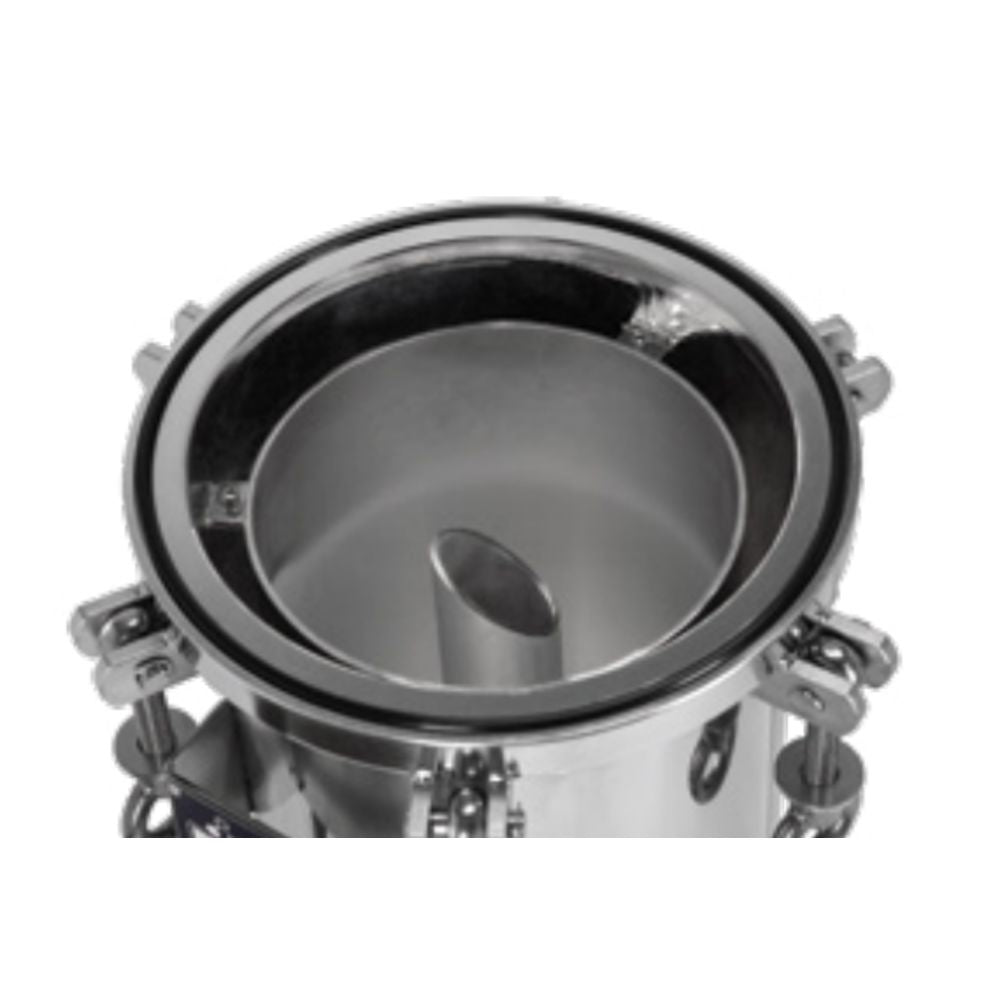

• Sciclonic™ Water Flow Design

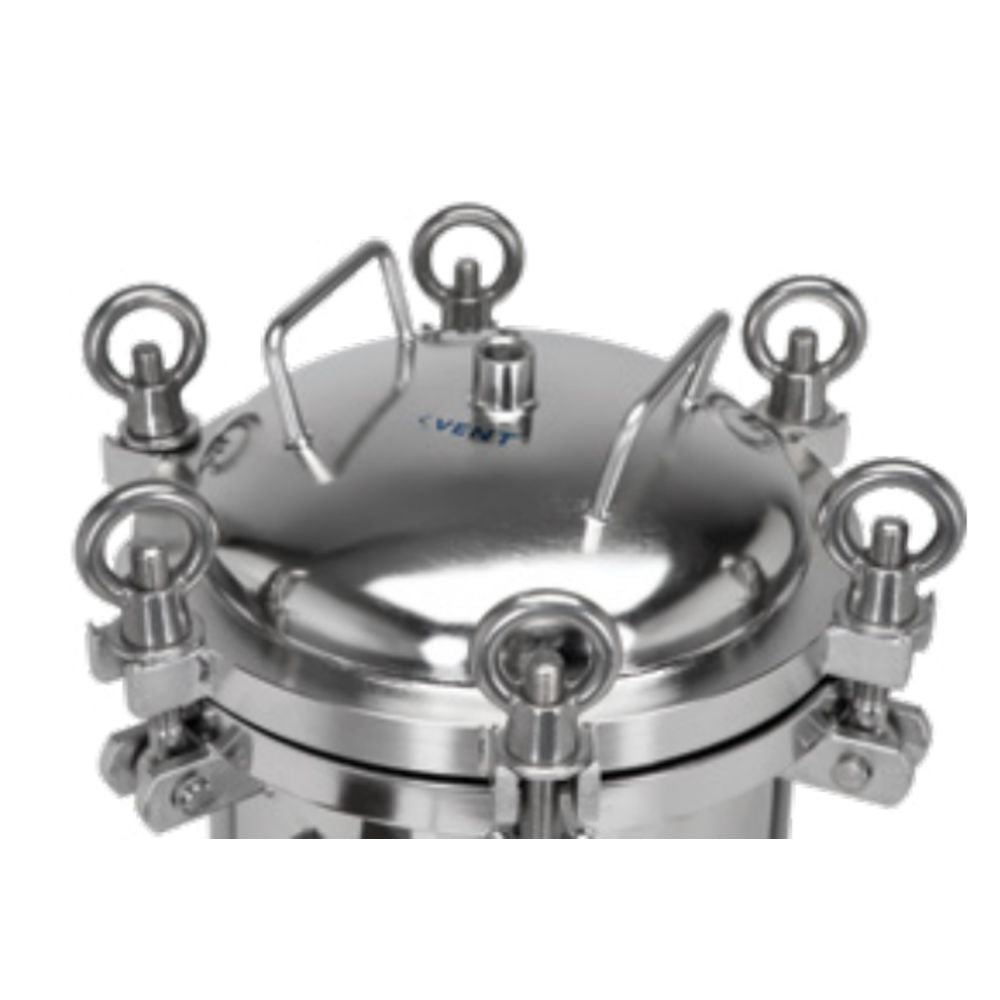

• Swing bolt closure for quick and secure filter change
• Heavy duty 316 Stainless Steel for durability
• Radial Flow Entry
• Accepts jumbo style cartridges
• NSF/ANSI/CAN 61 & NSF/ANSI 372 certified

Applications:

• Residential, Commercial, Industrial and Municipal
• Cooling Tower Filtration
• Whole House Filtration
• Process Water
• Well Water
• Small Community Compliance
• Industrial Waste Water Treatment

Materials of Construction:

• Housing Shell: 316 Stainless Steel
• Swing Bolt Lid Closure: Zinc Plated Steel
• Vent and Drain Plugs: 316 Stainless Steel
• Heavy Duty Mounting Legs: 316 Stainless Steel
• O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)

Operational Data:

• Max Working Pressure: 150 psi at 300 Deg. F (10.3 bar at 149 Deg. C)
• Max Operating Temperature: 300 Deg. F (149 Deg. C)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Commercial-Industrial Cooling Systems Whole House Well Water Pumps Waste Water
Body Material	316 Stainless Steel
Closure Type	Swing Bolt
Drain Size	3/4" FNPT
Housing Material	316 Stainless Steel
Inlet Connection	2" FL
Max Flow Rate	100 GPM 378 LPM
Max Pressure (Psi)	150
Max Temp (°F)	300
O-Rings	EPDM
Outlet Connection	2" FL
Connection Type	1/4" FNPT
Flow Rate	100 GPM 378 LPM
Warranty & Certifications
Product Certification Standard	NSF/ANSI/CAN 61, NSF/ANSI 372
Product Weight & Dimensions
Product Weight (lbs)	65
