Neo-Pure #2 Swing Bolt Bag Housing Carbon Steel 2" FNPT

Neo-Pure Stainless Steel SBSB1 #2 Bag Housing provides excellent filtration with a single standard bag filter for flow rates up to 150 gpm. The swing bolt clamp allows quick filter bag change-outs and secure sealing.

Features:

• Designed For Many Types Of Applications. The Neo-Pure Stainless Steel SBSB1 #2 Bag Housing designed for commercial and industrial filter applications.

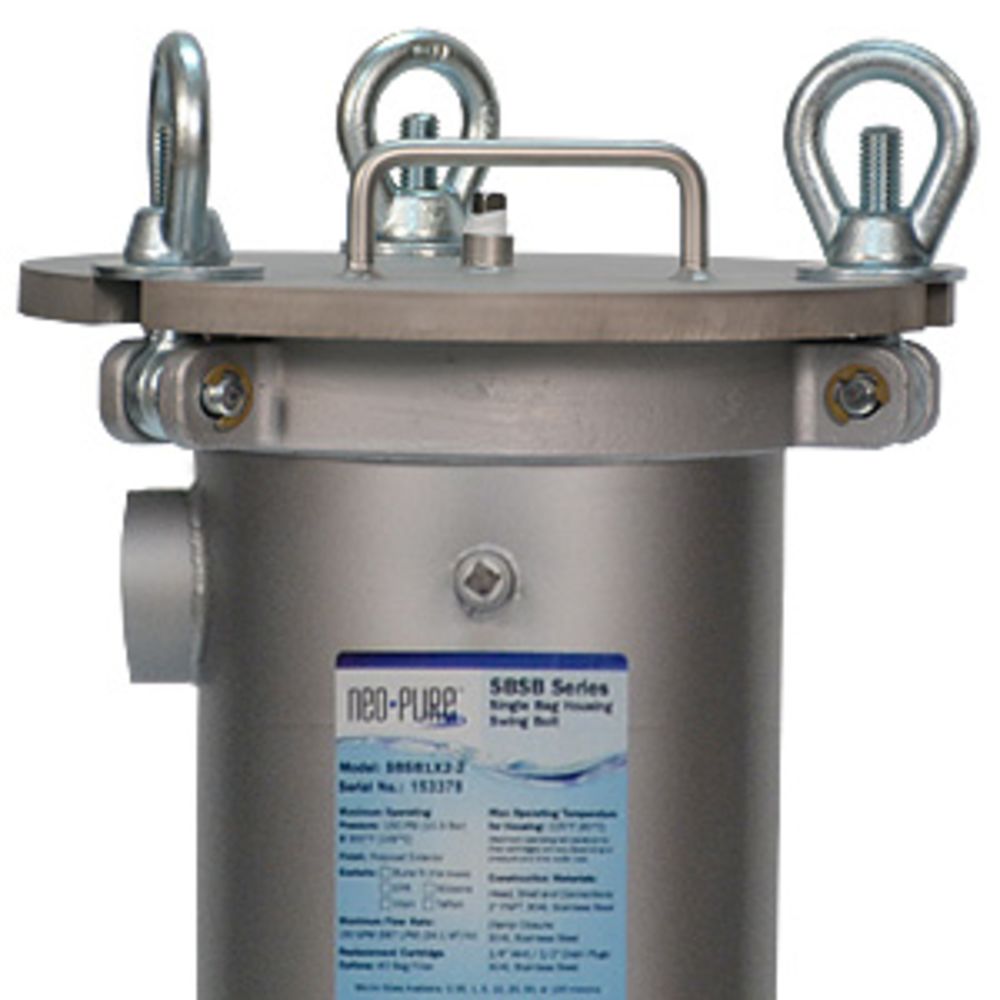

• Swing Bolt Clamp Closure. The Neo-Pure Stainless Steel SBSB2 #2 Bag Housing features a swing bolt clamp closure for quick, easy change-outs, and secure sealing.
• Accepts Standard Bag #2 Filters. The Neo-Pure Stainless Steel SBSB2 uses #2 bag filters for excellent filtration.
• Heavy-duty Stainless Steel Construction. The Neo-Pure Stainless Steel SBSB1 #2 Bag Housing features heavy-duty 304L or 316L stainless steel construction for maximum durability.

Specifications:

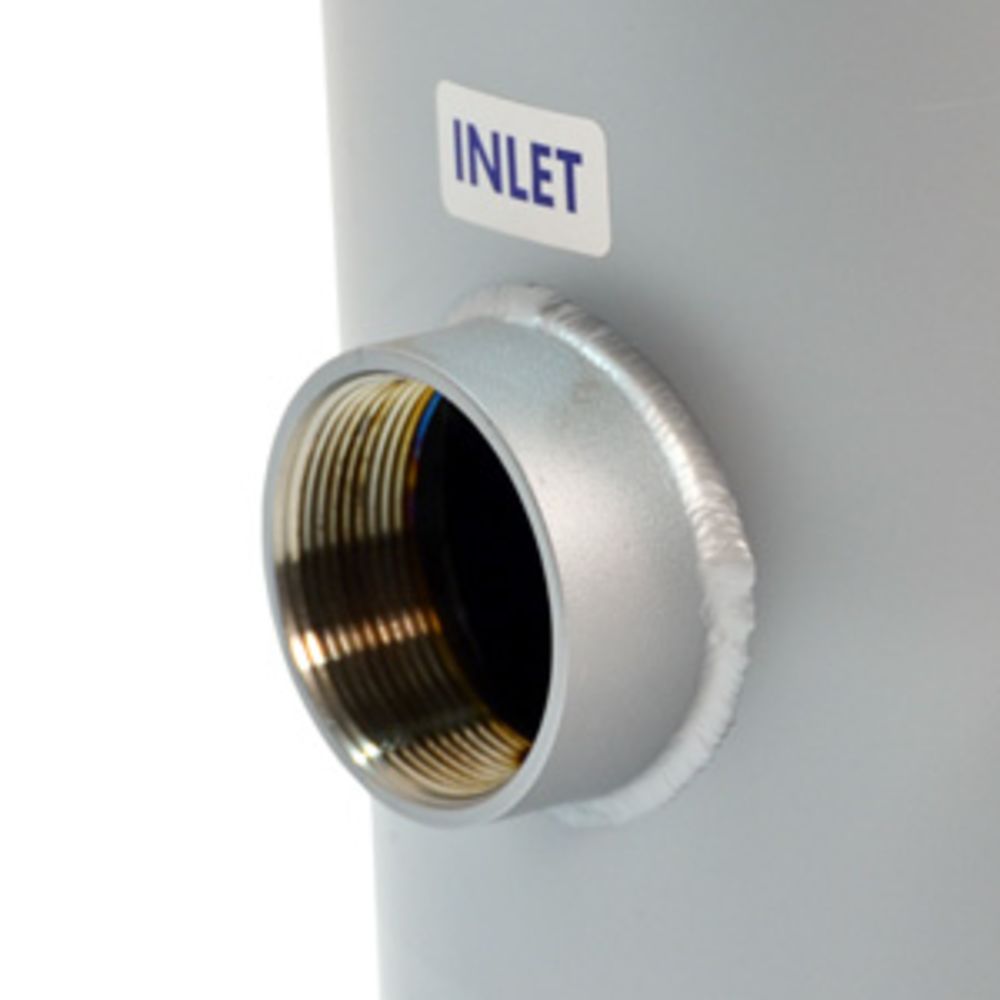

• Inlet/Outlet: 2" FNPT
• Protective poly-coat finish
• All stainless steel internals
• Flow rates up to 150 gallons per minute

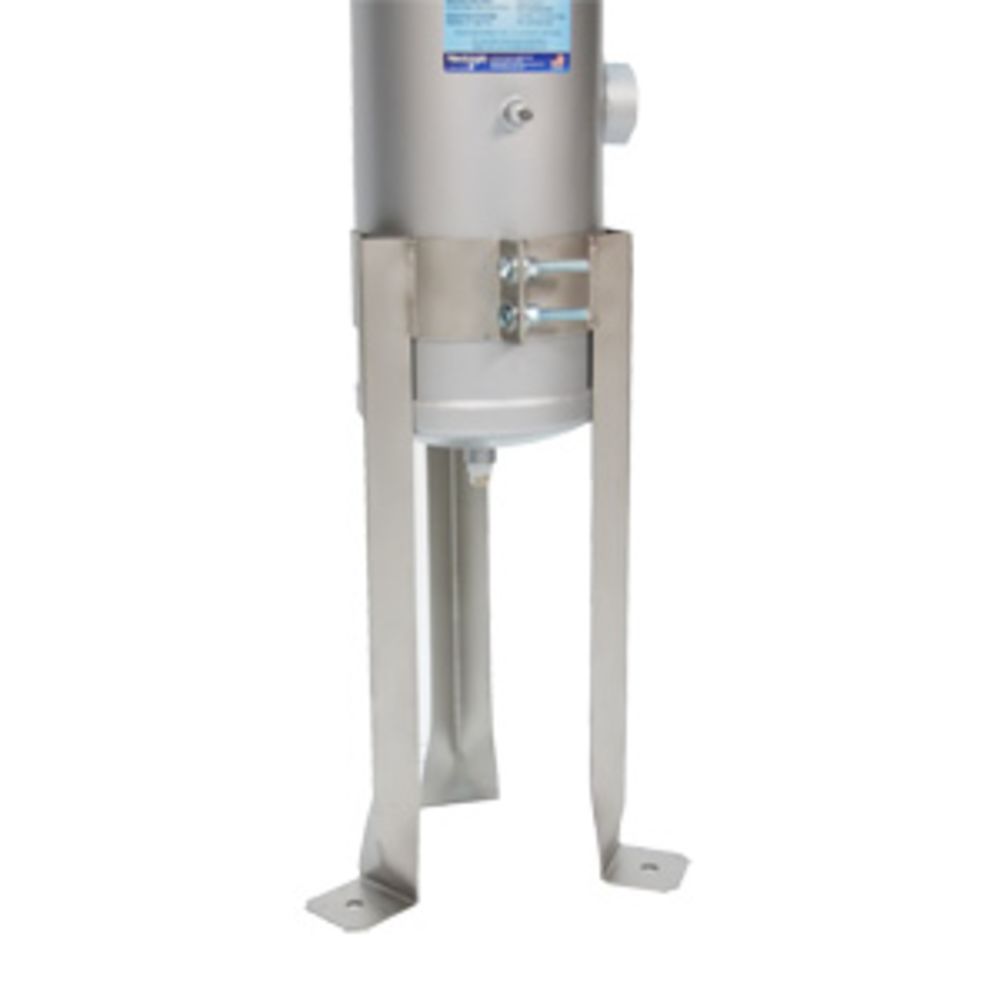

• Standard version comes with adjustable mounting legs
• Neo-Pure SB Series Single Bag Housings Specifications

NOTE: Standard option SBSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.


Applications

• Chemicals
• Coolants
• Food and Beverage
• Electronics
• Oil and Gas
• Paints, Inks, and Coatings
• Paper and Pulp
• Water

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Chemical Dispensing Cooling Systems Desalination Electronics Food & Beverage Oil Gas Water
Body Material	304L Stainless Steel
Closure Type	Swing Bolts
Gaskets	Buna-N
Inlet Connection	2" FNPT
Max Flow Rate	150 GPM
Max Temp (°F)	300
Origin	China
Shipping Dimensions
Shipping Length	18 in.
Shipping Width	18 in.
Shipping Height	44 in.
Product Weight & Dimensions
Product Height	44"
Product Length	18"
Product Width	18"
Product Weight (lbs)	81
