Neo-Pure SFR2 Series Filter Housing with Ring Nut Closure

Neo-Pure Stainless Steel SFR2 Single Filter Housing for cartridge lengths 19-1/2" to 20", provides exceptional filtration with a single filter cartridge for flow rates up to 14 gpm. The Ring Nut closure also allows quick change-outs and secure sealing.

Specifications:

• Both cartridge ends have knife-edge seals to help eliminate potential bypass
• Heavy-duty 316L stainless steel construction from maximum durability

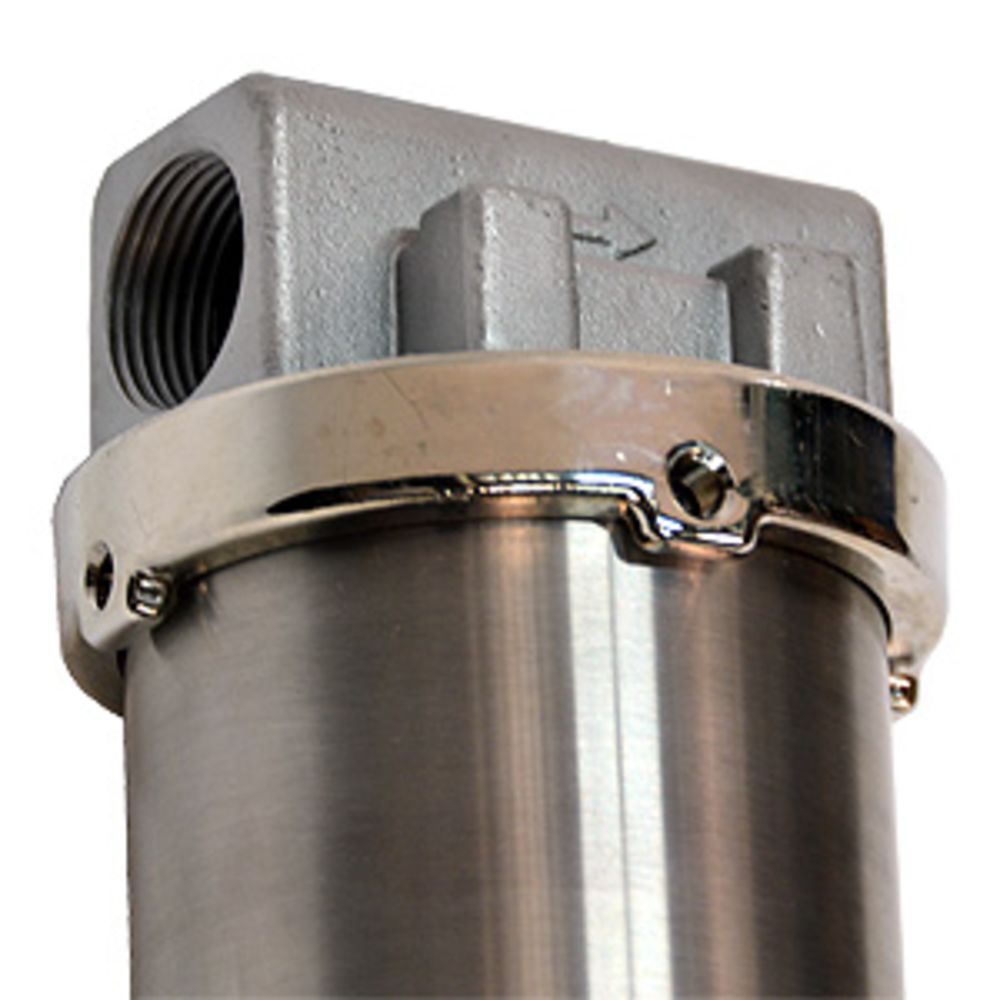

• Ring Nut closure for quick, easy change-outs and secure sealing
• Protective poly-coat finish
• Flow rates up to 14 gallons per minute
• Inlet/Outlet: 3/4" FNPT or 1" FNPT
• All stainless steel internals
• Standard version comes with mounting bracket and screws

Standard option SFR series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our  Returns Policy.
Applications:

• Coolants
• Chemicals
• Electronics
• Paper and Pulp
• Food and Beverage
• Paints, Inks, and Coatings
• Oil and Gas
• Water

Compatible with:

Graver Technologies	SCR20316L050DOE-B
Harmsco® Compatible	FSSS-2
Shelco	RHS-804A-B, RHS-806A-B, RHS-808A-B

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	316L Stainless Steel
Closure Type	Ring Nut

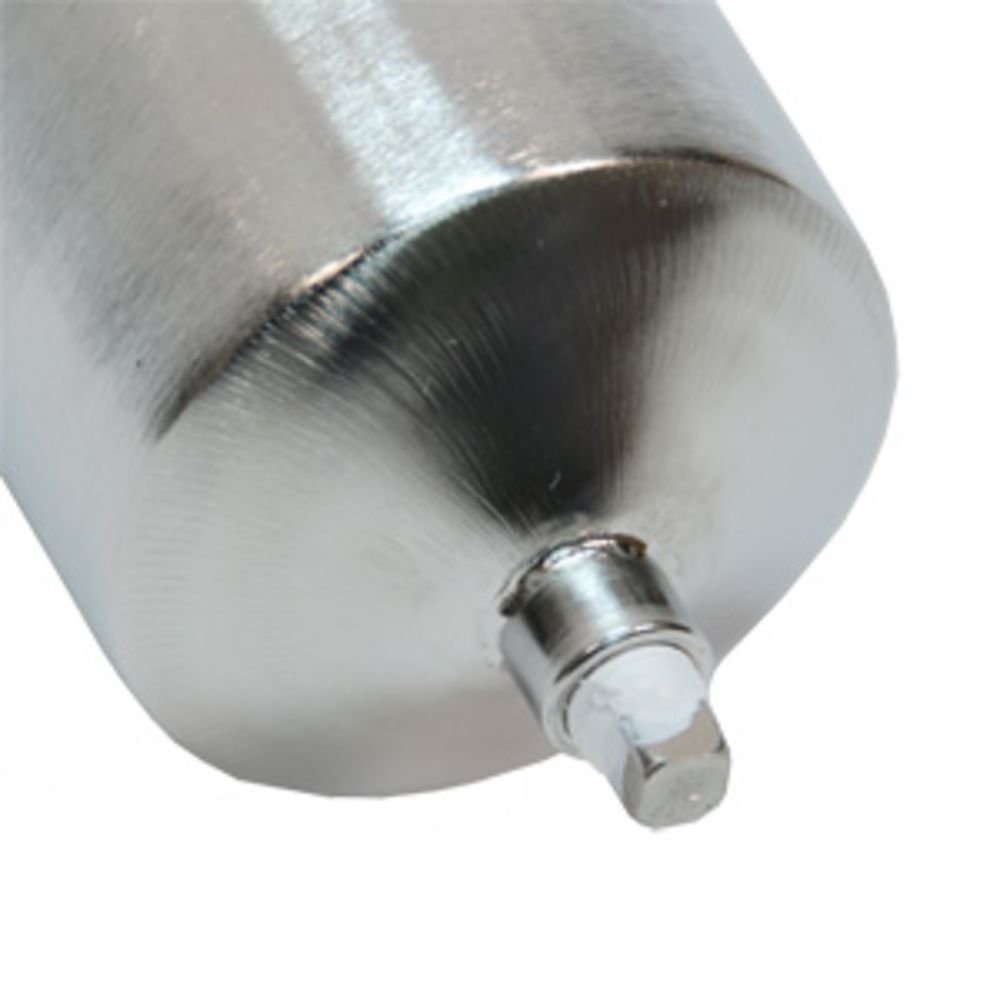

Drain Size	1/8" FPT
Housing Material	316 Stainless Steel
Inlet Connection	1/2" FPT 3/4" FPT 1" FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
Max Temp (°F)	200
O-Rings	Buna-N
Outlet Connection	1/2" FPT 3/4" FPT 1" FPT
Size	1/2" 3/4" 1"
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	4 in.
Shipping Width	4 in.
Shipping Height	25 in.
Product Weight & Dimensions
Product Height	23-9/16"
Product Length	19-1/2 - 20"
Product Weight (lbs)	9.55
