Neo-Pure SFC1 Single Filter Cup Housing

Neo-Pure SFC1 Stainless Steel Single Cup Filter Housing for 9-3/4" to 10" 222 or 226 connector cartridges provides exceptional filtration with for flow rates up to 7 gpm. The ring nut closure allows quick change-outs and secure sealing.
Features:

• Ideal for high purity commercial or industrial filter applications
• Heavy-duty 316L stainless steel construction from maximum durability
• Electro-polished sump suitable for a wide range of process requirements

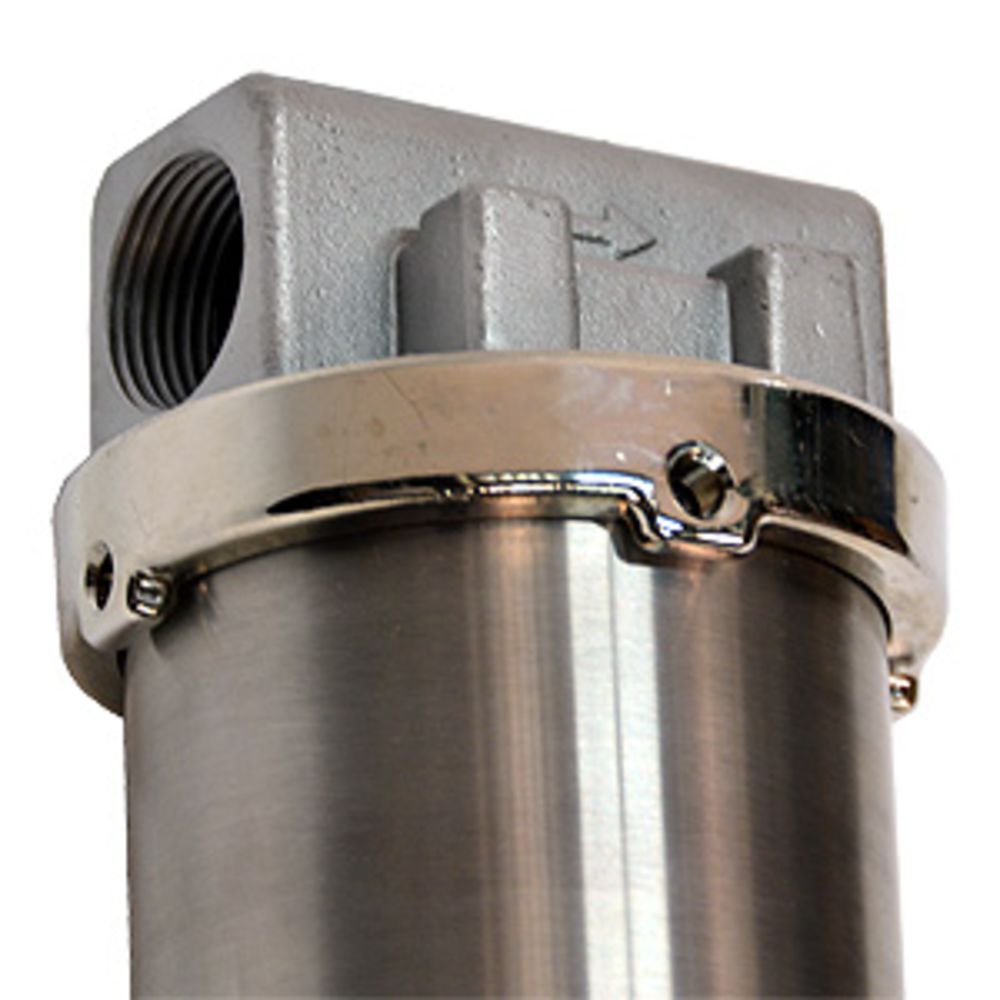

• Ring nut closure for quick, easy change-outs and secure sealing
• Accepts 9-3/4" to 10" SOE cartridges with 222 or 226 style connectors
• Flow rates up to 7 gallons per minute
• Inlet/Outlet: 3/4" FPT
• Includes mounting bracket kit and rod for opening and closing

Applications

• Coolants
• Chemicals
• Electronics
• Food and Beverage
• Oil and Gas
• Paints, Inks, and Coatings
• Paper and Pulp
• Water

NOTE: Ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.

Compatible with:

Graver Technologies	SCB10222075DOE-B
Shelco	CSF-786-222

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	316L Stainless Steel
Cap Color	Stainless Steel
Closure Type	Ring Nut

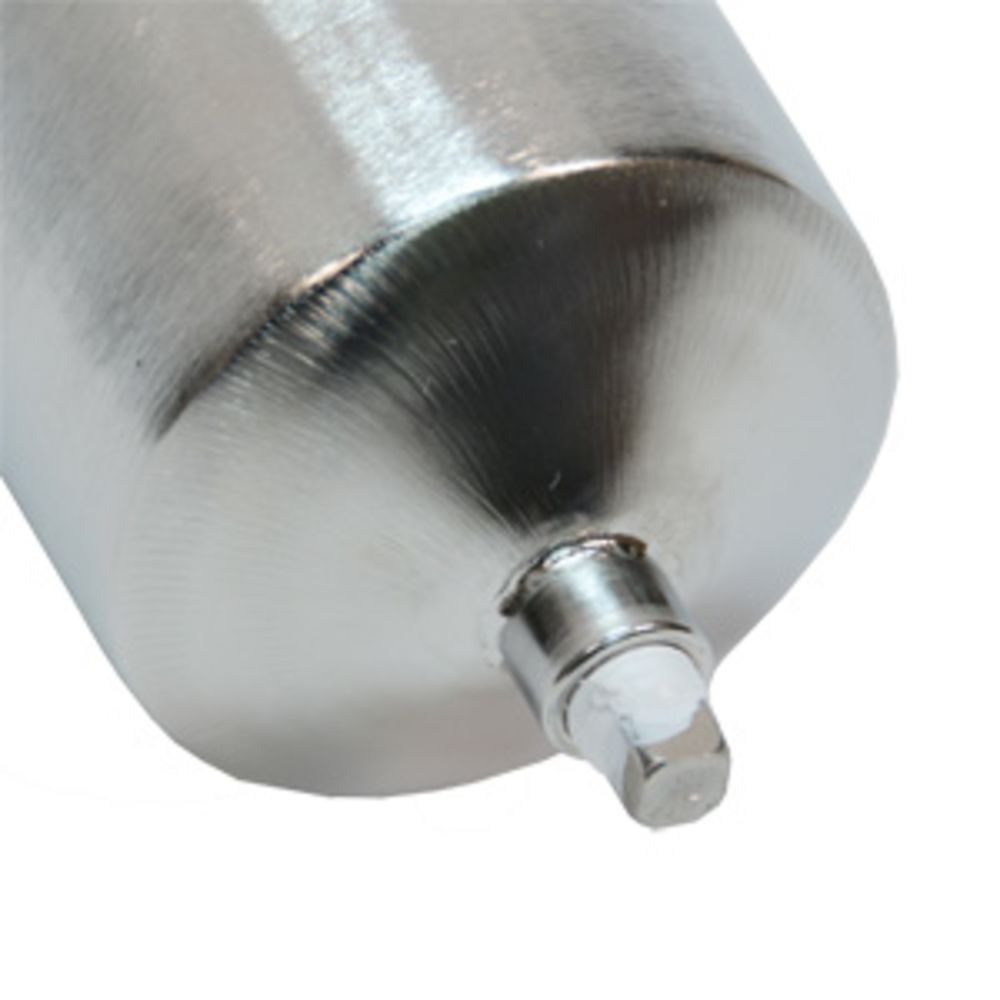

Drain Size	1/4" FPT
Housing Material	316 Stainless Steel
Inlet Connection	3/4" FPT 1" FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	7 GPM
Max Pressure (Psi)	300
Max Temp (°F)	200
Mounting Options	Mounting Bosses
Number Of Cartridges	1
O-Rings	Buna-N
Outlet Connection	3/4" FPT 1" FPT
Size	3/4" 1"
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	17-7/16"
Product Length	9-3/4 - 10"
Product Weight (lbs)	8.6875
