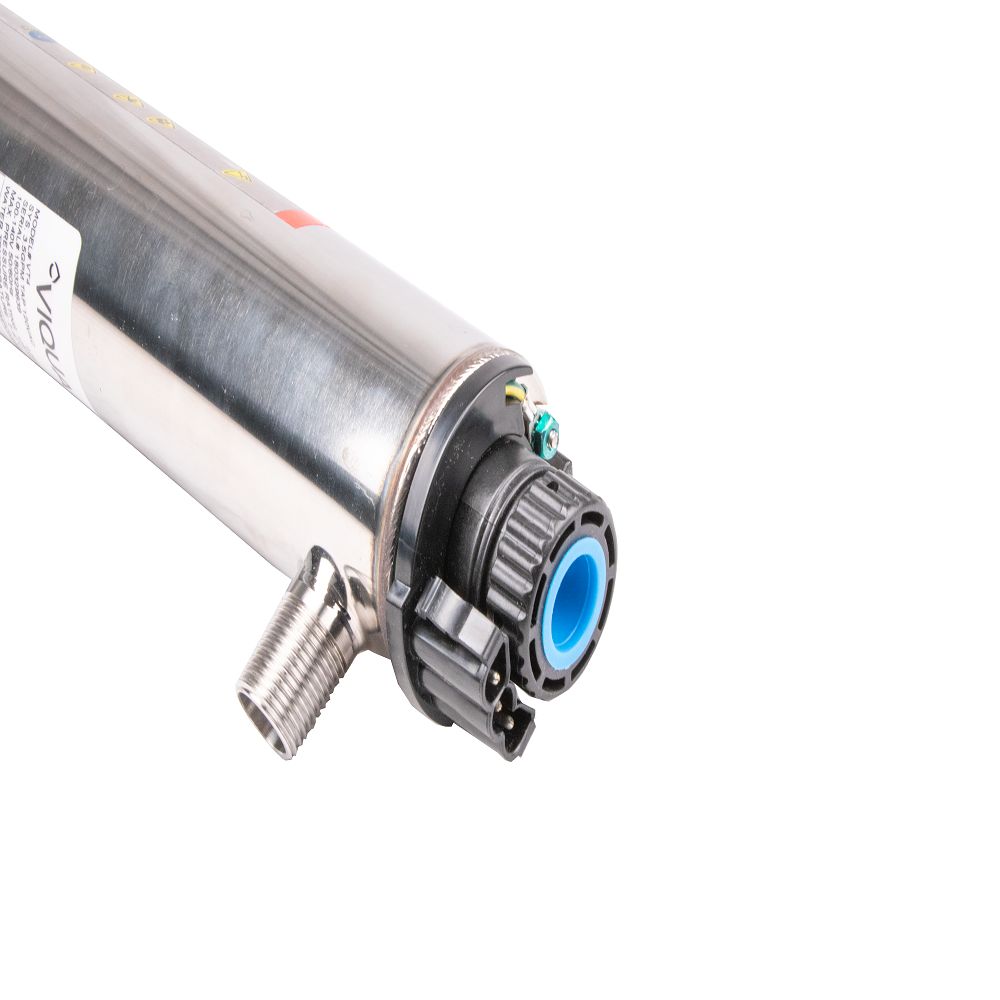

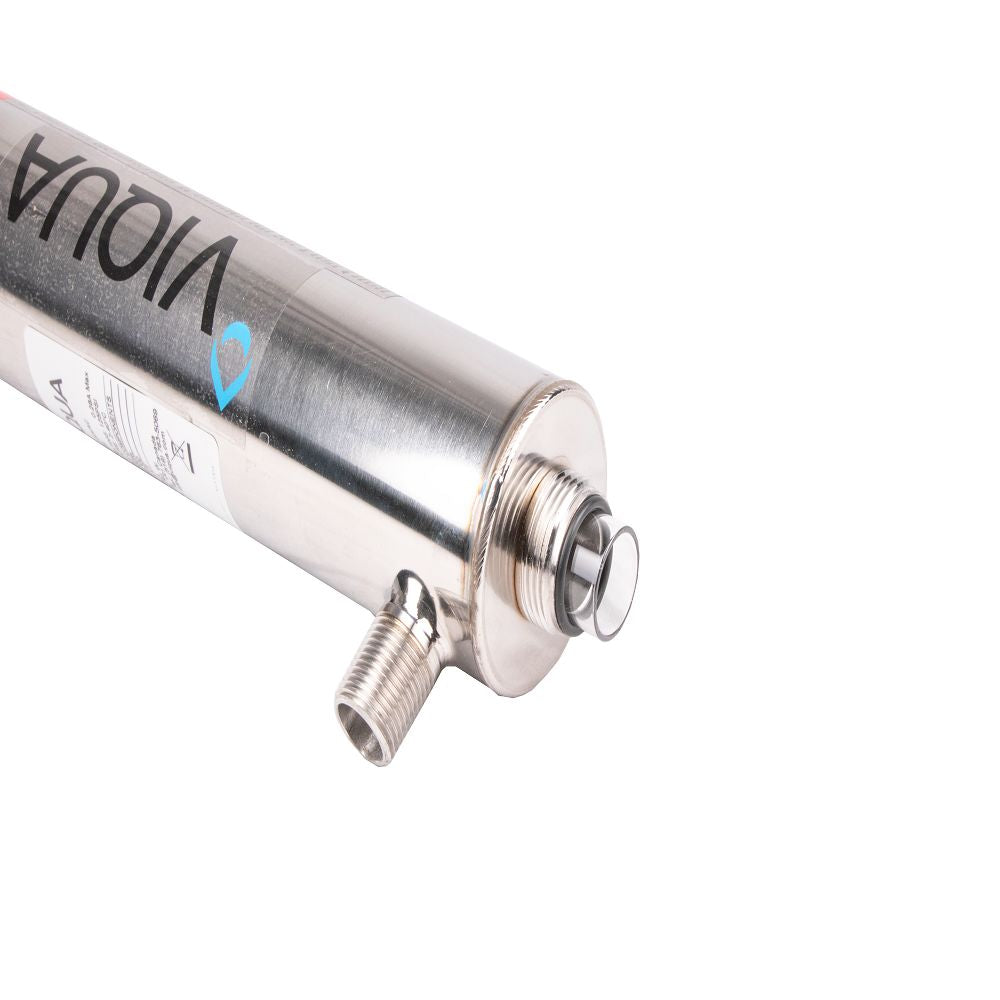

Viqua VT4 Copper Series UV System Powered By Sterilight 3.5 gpm

The Viqua VT4 Copper Series Ultraviolet System is specifically designed for point-of-use applications where microbiological control is required. The VT4 UV System controls bacteria, viruses and protozoan cyst all in one complete design.

Specifications:

• 304 Stainless Steel Reactors
• Flow Rate: 3.5 gpm
• Dimensions: 17" x 2.5" Diameter
• Max Operating Pressure: 125 psi
• Inlet/Outlet Port Size: 1/2" MPT
• Volts: 100-230V/50-60Hz

NOTE: This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VT4 includes:

• Sterilight Lamp (1): S330RL
• Sterilight Quartz Sleeve (1): QS-330D
• Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-104 °F
Body Material	304 Stainless Steel
Features	Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	1/2" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	1/2" MPT
Power	20 Watts
Size	1/2"
Connection Type	Male (MPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	2-1/2"
Flow Rate	6.5 GPM (16mJ/cm2 Dose) 3.5 GPM (30mJ/cm2 Dose) 2.5 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	6.75 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Height	7 in.
Product Length	21 in.
Product Width	6.75 in.
Product Weight (lbs)	5
