Pelican PUV-14-P UV System 18gpm

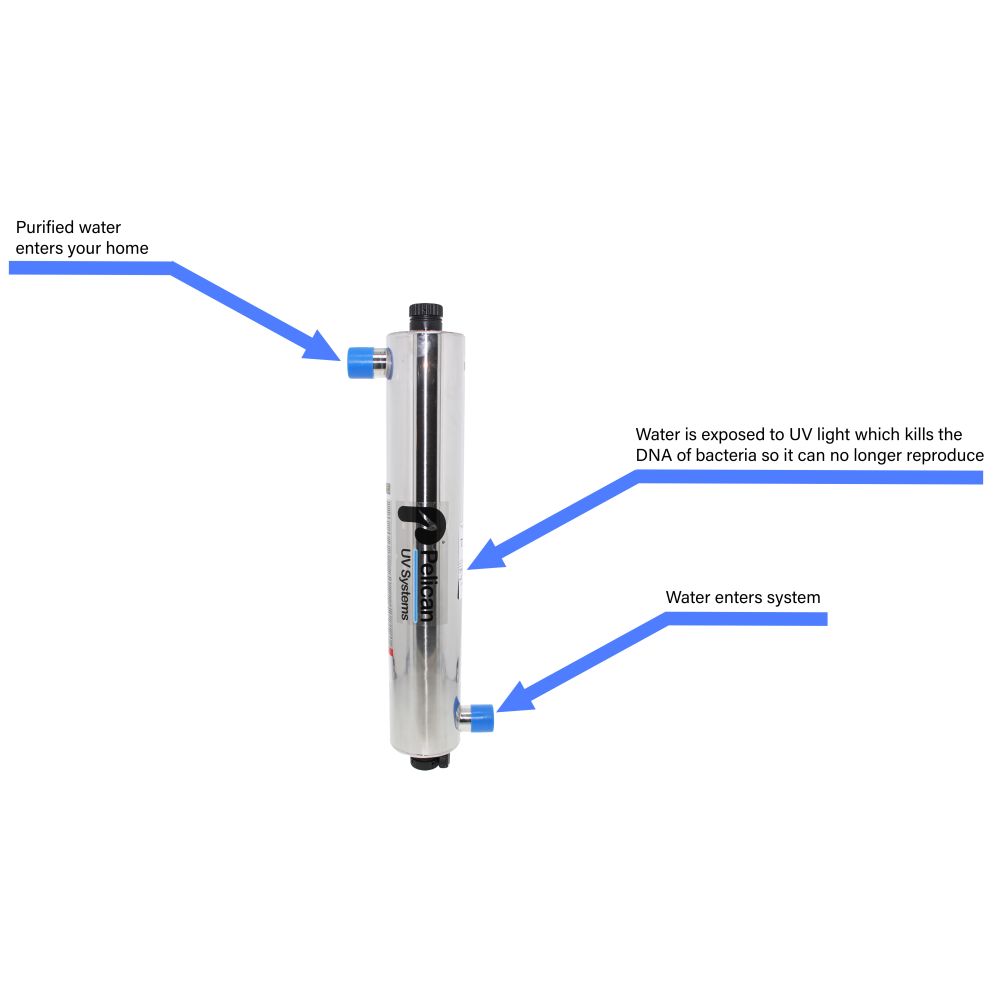

The Pelican PUV-14-P Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Features:

• 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
• Pelican controller provides constant output current and a universal power input
• Controller alerts user with alarm if UV lamp fails
• Sealed case on the controller helps to prevent damage from accidental water intrusion
• Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
• Compact design reduces installation time and takes less space
• Lamp can be changed without interrupting the water flow

This system is compatible with the S410RL-HO Sterilight Lamp and the QSO-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH410 includes:

• Sterilight Lamp (1): S410RL-HO
• Sterilight Quartz Sleeve (1): QSO-410
• Sterilight O-Rings (2): 410867

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-104 °F
Body Material	304 Stainless Steel
Inlet Connection	3/4" FPT 1" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	3/4" FPT,1" MPT
Power	60 Watts
Size	3/4" 1"
Connection Type	Male (MPT) Female (FPT)
Diameter	3-1/2"
Flow Rate	34 GPM (16mJ/cm2 Dose) 18 GPM (30mJ/cm2 Dose) 14 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Shipping Dimensions
Shipping Length	30 in.
Shipping Width	10 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Length	23.5 in.
Product Width	3.5 in.
Product Weight (lbs)	17
