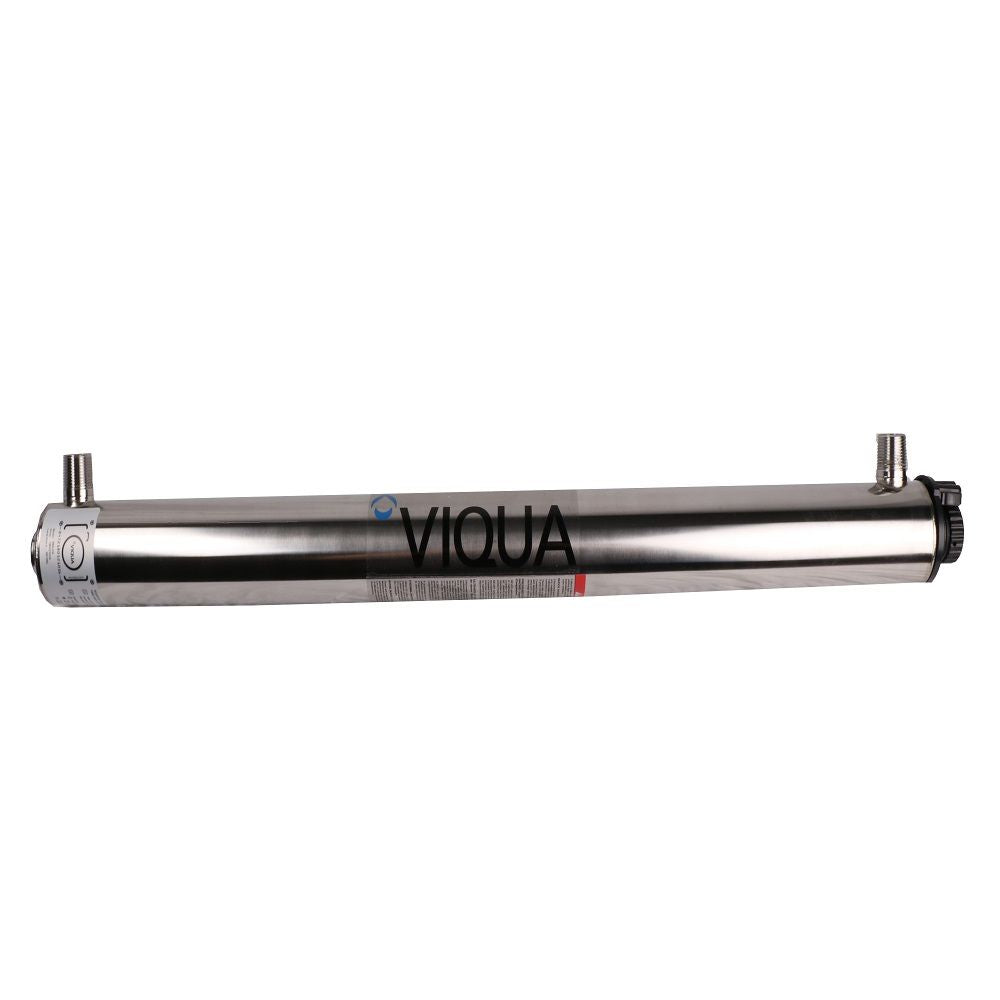

Viqua S8Q-PA Silver Series UV System Powered by Sterilight 10 gpm

The Viqua S8Q-PA is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water. The Viqua S8Q-PA is suitable for whole-home disinfection and is ideal for the average size residence. The S8Q-PA is recommended for flow rates up to 10gpm.

Specifications:

• Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
• Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
• Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
• 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
• Hard glass, low pressure mercury vapour lamps with high isolation pin design
• Natures way to protect your water without the addition of harmful chemicals
• Easy servicing - no need to disconnect water flow to change UV lamp
• Seven year warranty on reactor chamber for unparalleled protection
• Includes mounting clamp
• CSA and CE compliant

NOTE: This system is compatible with the S810RL Sterilight Lamp and the QS-810 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S8Q includes:

• Sterilight Lamp (1): S810RL
• Sterilight Quartz Sleeve (1): QS-810
• Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	36-104 °F
Body Material	304 Stainless Steel
Features	Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	3/4" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	3/4" MPT
Power	46 Watts
Size	3/4"
Connection Type	Male (MPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	2-1/2"
Flow Rate	20 GPM (16mJ/cm2 Dose) 10 GPM (30mJ/cm2 Dose) 7.7 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V,230 V
Warranty & Certifications
Warranty	7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
Shipping Dimensions
Shipping Length	37 in.
Shipping Width	5 in.
Shipping Height	10.5 in.
Product Weight & Dimensions
Power Supply Dimensions	7.3"x3.2"x2-1/2"
Product Height	10.5 in.
Product Length	37 in.
Product Width	5 in.
Product Weight (lbs)	11
