Viqua Sterilight SCM-320 Cobalt Plus System w/UV Monitor 13 gpm

The Viqua Sterilight SCM-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:

• Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
• 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals

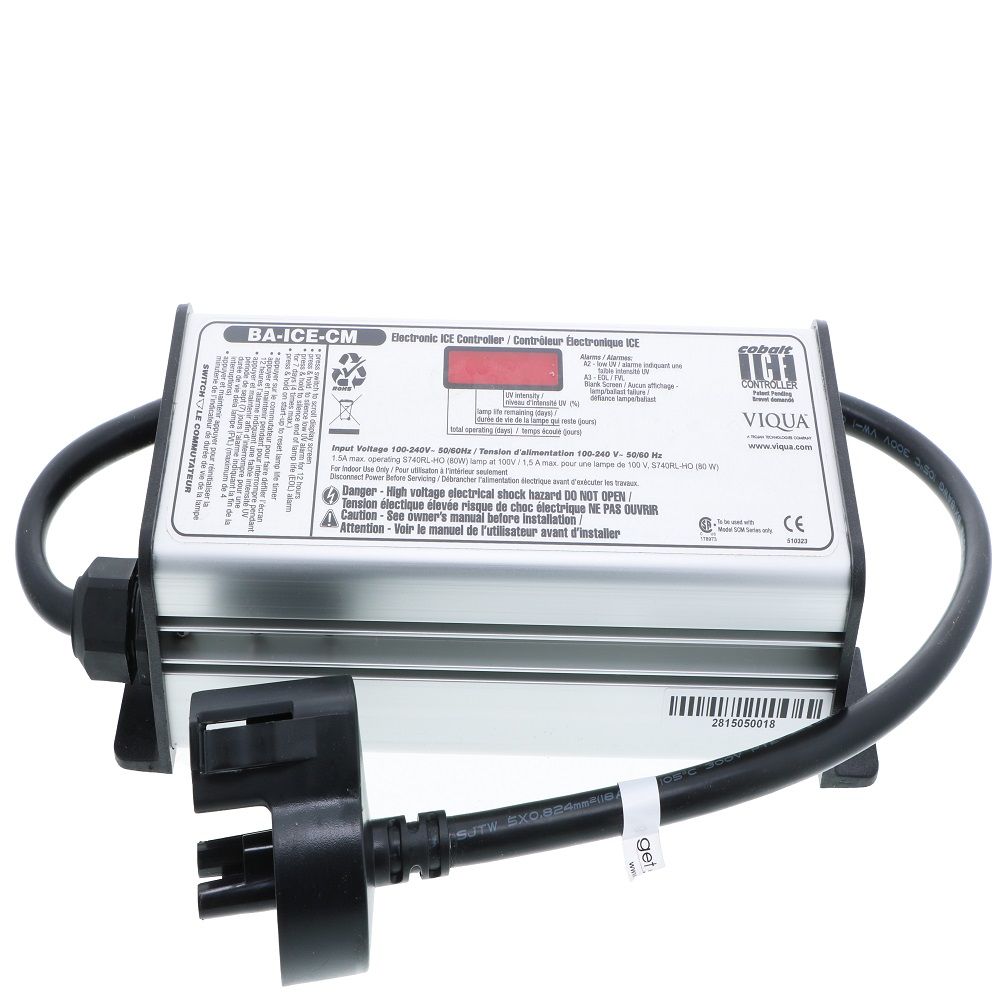

• Cobalt ICE controller provides constant output current and a universal power input.
• Controller alerts user with alarm if UV lamp fails.
• Sealed case on the controller helps to prevent damage from accidental intrusion

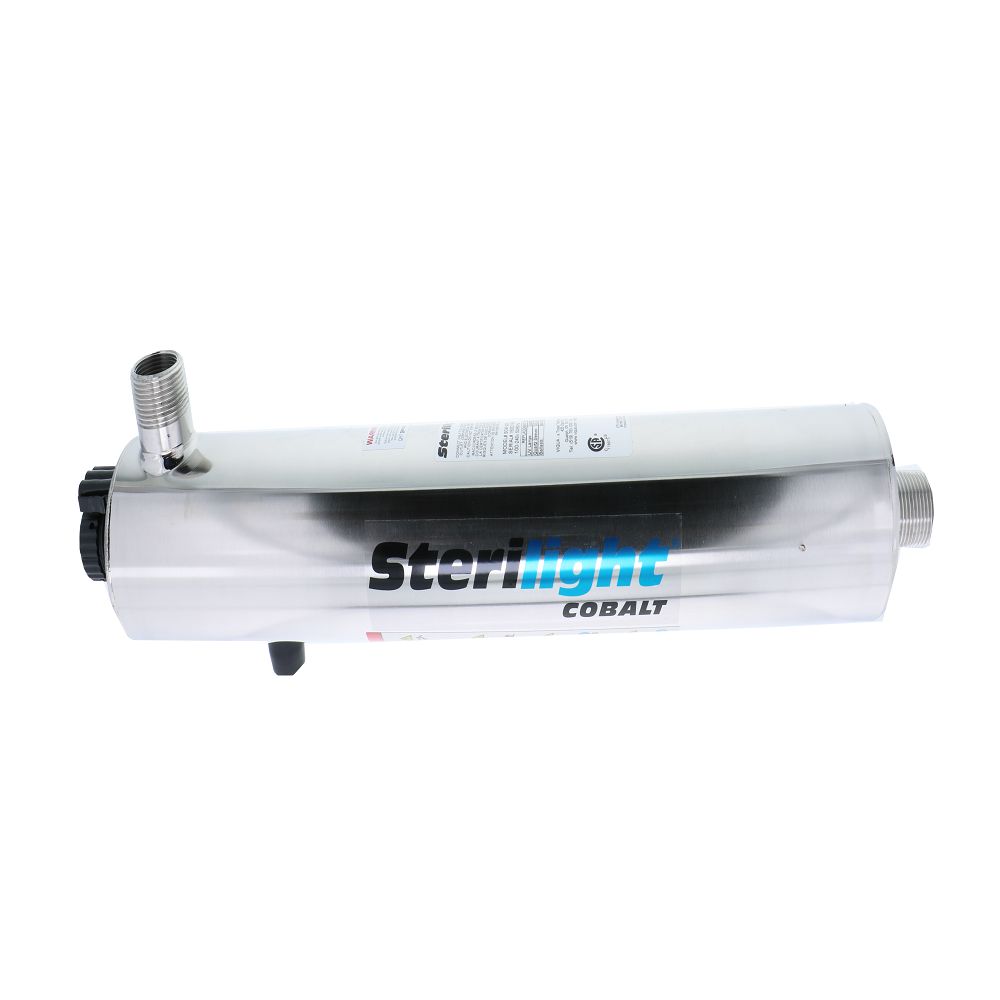

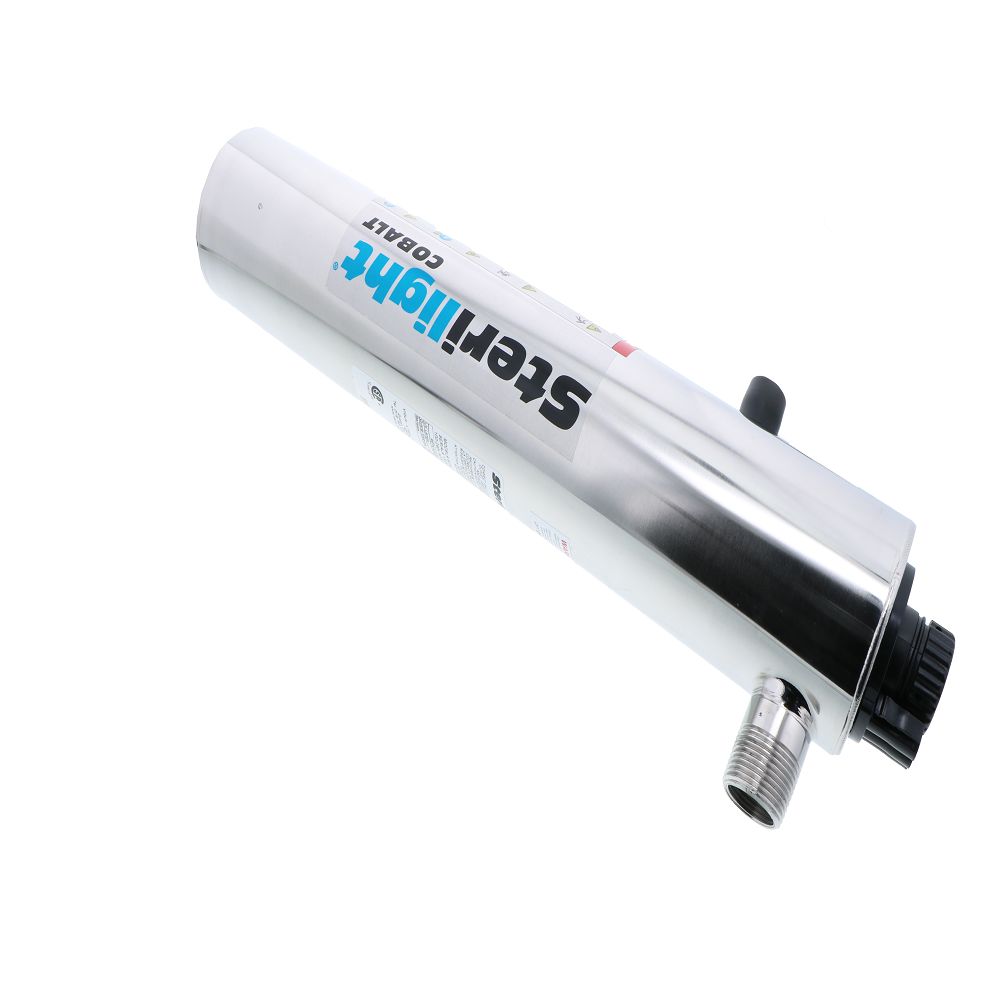

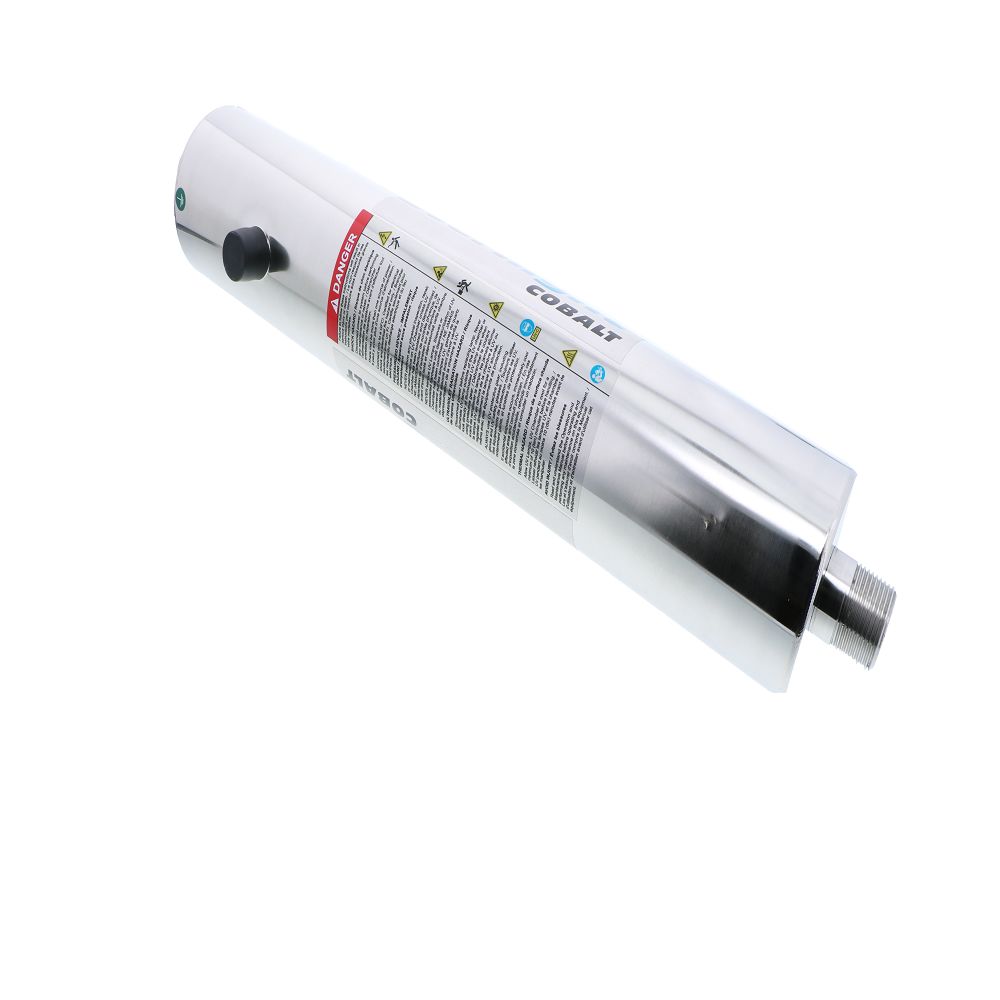

• Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
• Compact design reduces installation time and takes less space
• Lamp can be changed without interruption water flow

This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SCM-320 includes:

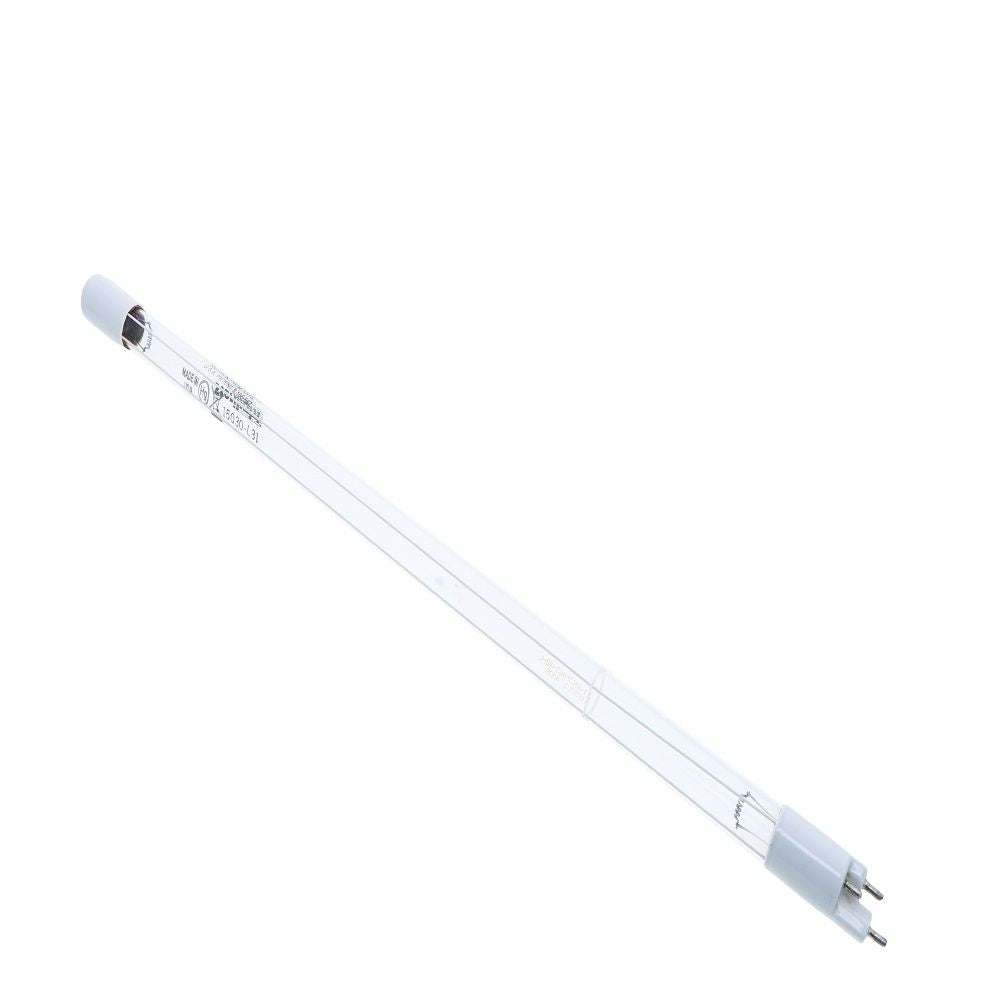

• Sterilight Lamp (1): S320RL-HO
• Sterilight Quartz Sleeve (1): QS-320
• Sterilight O-Ring (1): 410867

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	36-104 °F
Body Material	304 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	1" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	1" MPT
Power	42 Watts
Size	1"
Connection Type	Male (MPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3-1/2"
Flow Rate	13 GPM (30mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Warranty & Certifications
Warranty	7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
Shipping Dimensions
Shipping Length	29.5 in.
Shipping Width	19.5 in.
Shipping Height	9.5 in.
Product Weight & Dimensions
Power Supply Dimensions	9.4"x3.2"x2-1/2"
Product Length	22.8"
Product Weight (lbs)	31
