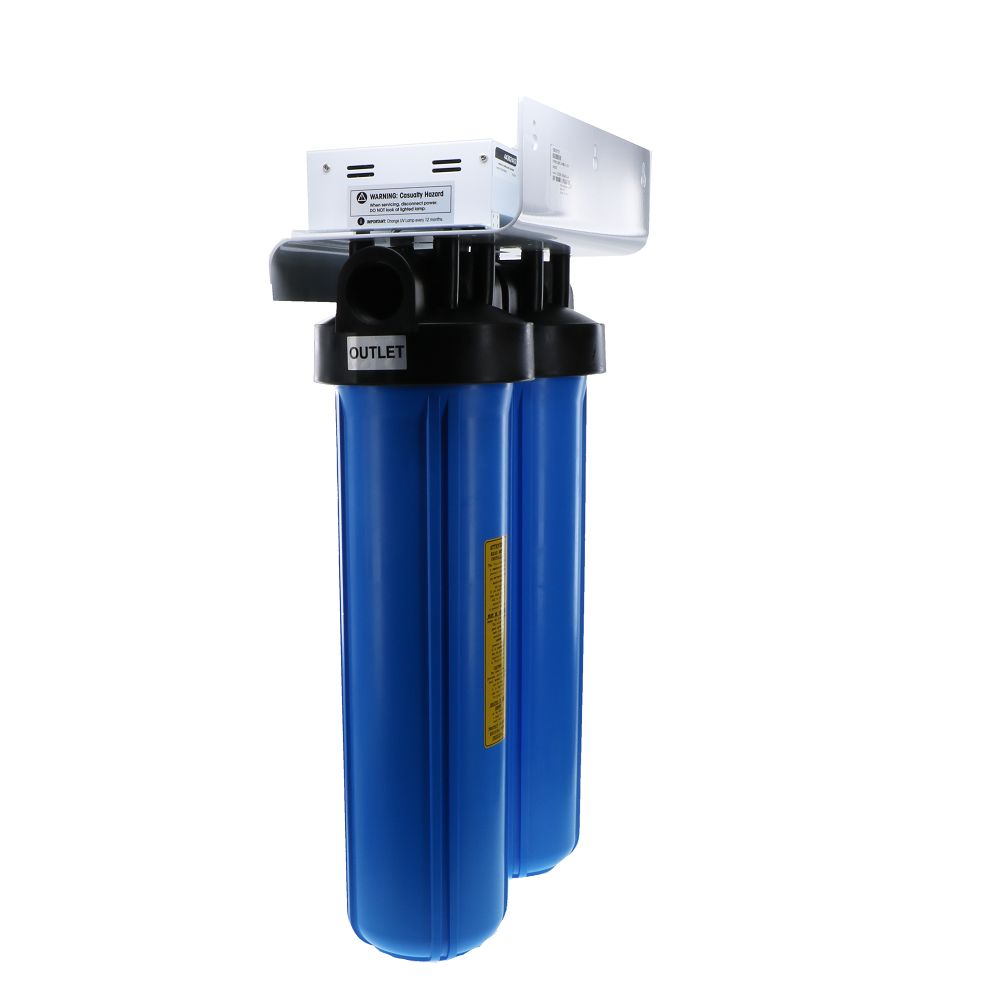

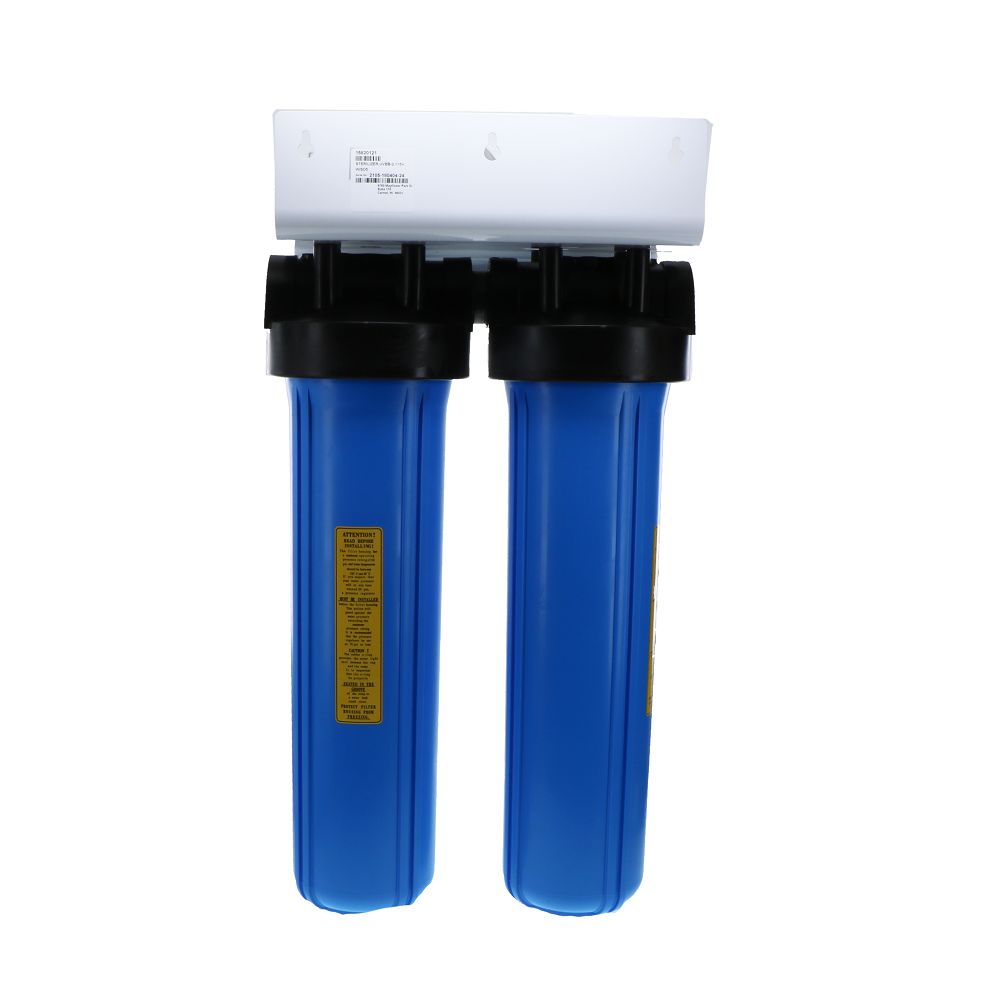

Aqua Flo UVBB-2 15820121 15 GPM Ultraviolet UV Water System

Product Discontinued and Vendor is no longer offering replacement parts

The Aqua Flo UVBB-2 is one of the most versatile commercial ultraviolet disinfection systems on the market today. The Aqua Flo 15820121 15 GPM model is manufactured with versatility in mind, and is virtually unlimited in the possible filter configurations and manifold sequences. System uses filter  WPP-45200-05.
Specifications:

• Commercial, residential, and industrial applications
• Reliability at an affordable cost
• String-wound sediment prefilter
• Easy installation
• Water disinfection greater than 99.9% kill rate
• Standard LED lamp monitor provides a visual verification that the lamp is in operation
• No chemicals added to the water
• Electronic lamp indicator (LED)
• 2 choices for optional Lamp Out Circuit (LOC):
• Normally Open (NO) to control an audible alarm
• Normally Closed (NC) to control a solenoid shut off valve
• 15820121 (115V/60Hz with American plug)
• 15820221 (220V/50Hz with 2-prong Euro plug)
• 15820421 (115V with Lamp Out Circuit Normally Closed)
• 15820622 (220V with Lamp Out Circuit Normally Closed)
• 15820521 (115V with Lamp Out Circuit Normally Open)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	38-105 °F
Frequency Rate	50/60 Hz
Inlet Connection	1-1/2" FPT
Max Pressure (Psi)	75
Min Pressure (Psi)	20
Outlet Connection	1-1/2" FPT
Power	22 Watts
Size	1-1/2"
Connection Type	Female (FPT)
Contaminants Reduced	Bacteria Chlorine/Taste/Odor
Flow Rate	15 GPM (16mJ/cm2 Dose) 7.5 GPM (30mJ/cm2 Dose) 6 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	100-240 V
Warranty & Certifications
Warranty	3 yrs on non-electrical, 1 yr electrical
Shipping Dimensions
Shipping Length	28 in.
Shipping Width	15 in.
Shipping Height	9 in.
Product Weight & Dimensions
Dimensions	28" x 15" x 9"
Product Height	9 in.
Product Length	28 in.
Product Width	15 in.
Product Weight (lbs)	35
