Aqua Flo UV1-EPCB 15910311 1 GPM Ultraviolet UV Water System 12V

The Aqua Flo UV1-EPCB is a great example of Aqua Flo´s all-in-one concept. The Aqua Flo UV001 is a single slimline undersink vessel with Aqua Flo´s Extended Pass Carbon Block filter and UV lamp. It combines both ultraviolet disinfection with carbon filtration all in a very attractive and compact system.

Specifications:

• Compact size
• Rated as a 1 gallon per minute filter
• 0.5 micron EPCB carbon block prefilter
• Provides excellent chemical reduction
• Easy installations
• Hard glass lamp and quartz
• Easy lamp and filter changing
• Lamp and ballast matched for quality
• 15910111 (115V/60Hz with American plug)
• 15910211 (220V/50Hz with 2-prong Euro plug)
• 15910311 (12V AC)

What´s included in the box?

• UV Housing with Mounting Bracket
• UV Lamp
• Quartz Sleeve
• 0.5 micron Carbon Block Filter
• Teflon Sleeve - inserts inside the carbon block

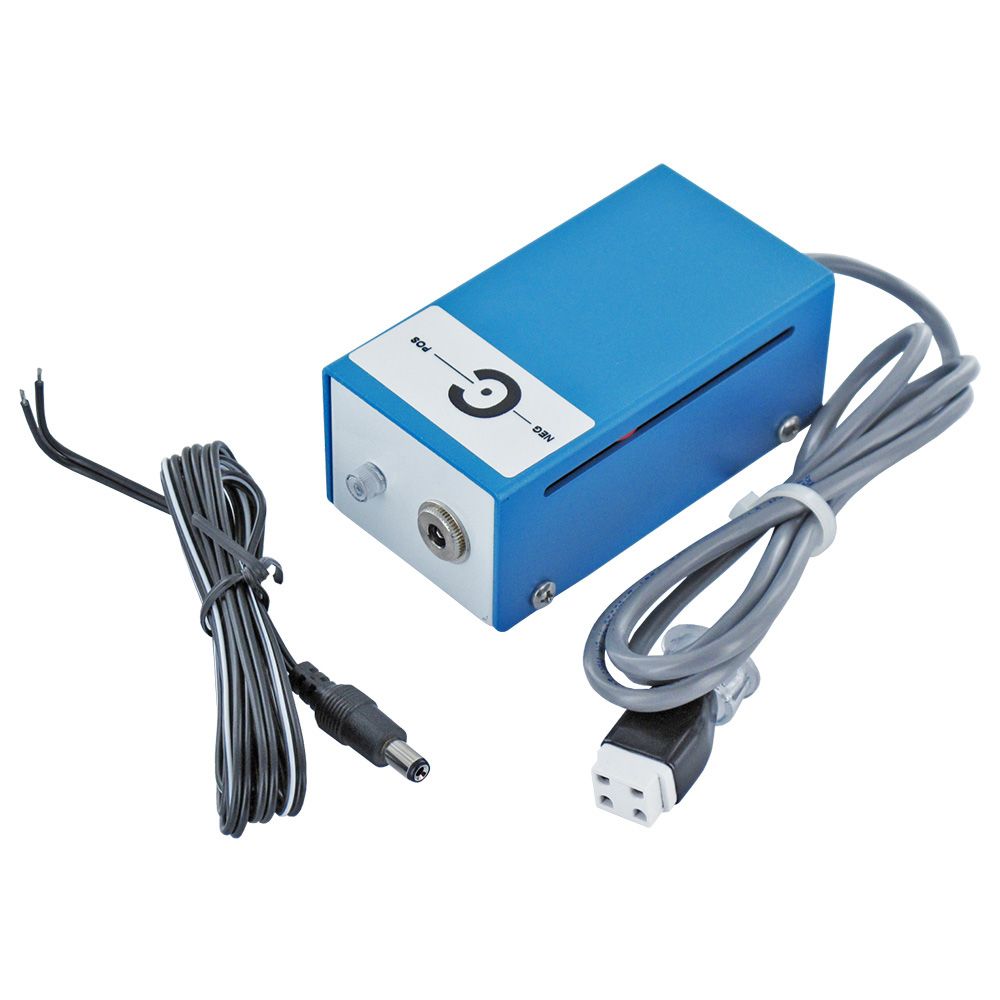

• 12V UV Control Module with Wire Harness
• Transformer - gives the option to power the system from a 120V outlet
• Filter Wrench
• Owner´s Manual

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	38-105 °F
Inlet Connection	1/2" FPT
Max Pressure (Psi)	75
Min Pressure (Psi)	20
Outlet Connection	1/2" FPT
Power	10 Watts
Size	1/2"
Connection Type	Female (FPT)
Contaminants Reduced	Bacteria Chlorine/Taste/Odor
Flow Rate	1 GPM (16mJ/cm2 Dose)
Type	Single UV System
Voltage	12 VAC
Warranty & Certifications
Warranty	3 yrs on non-electrical, 1 yr electrical
Shipping Dimensions
Shipping Length	4.75 in.
Shipping Width	4.75 in.
Shipping Height	13 in.
Product Weight & Dimensions
Dimensions	13-1/2" X 5" X 5"
Product Weight (lbs)	8.25
