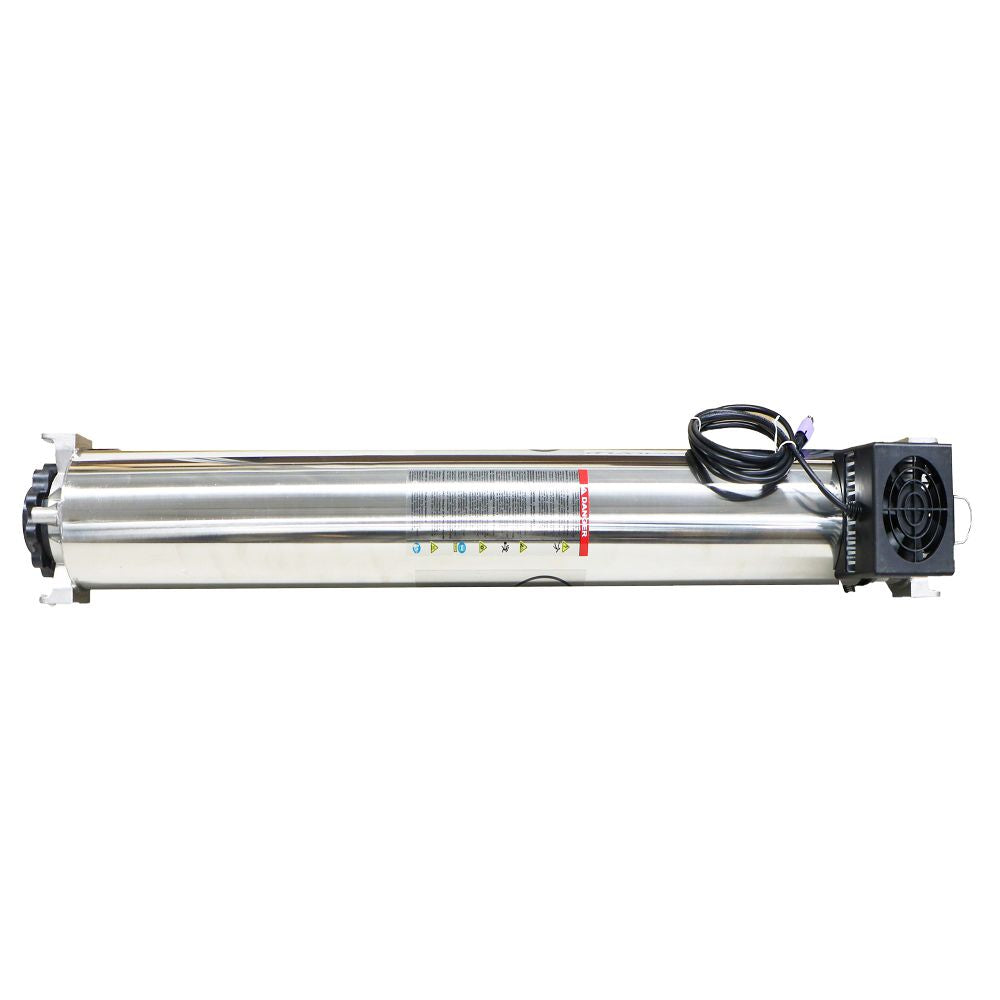

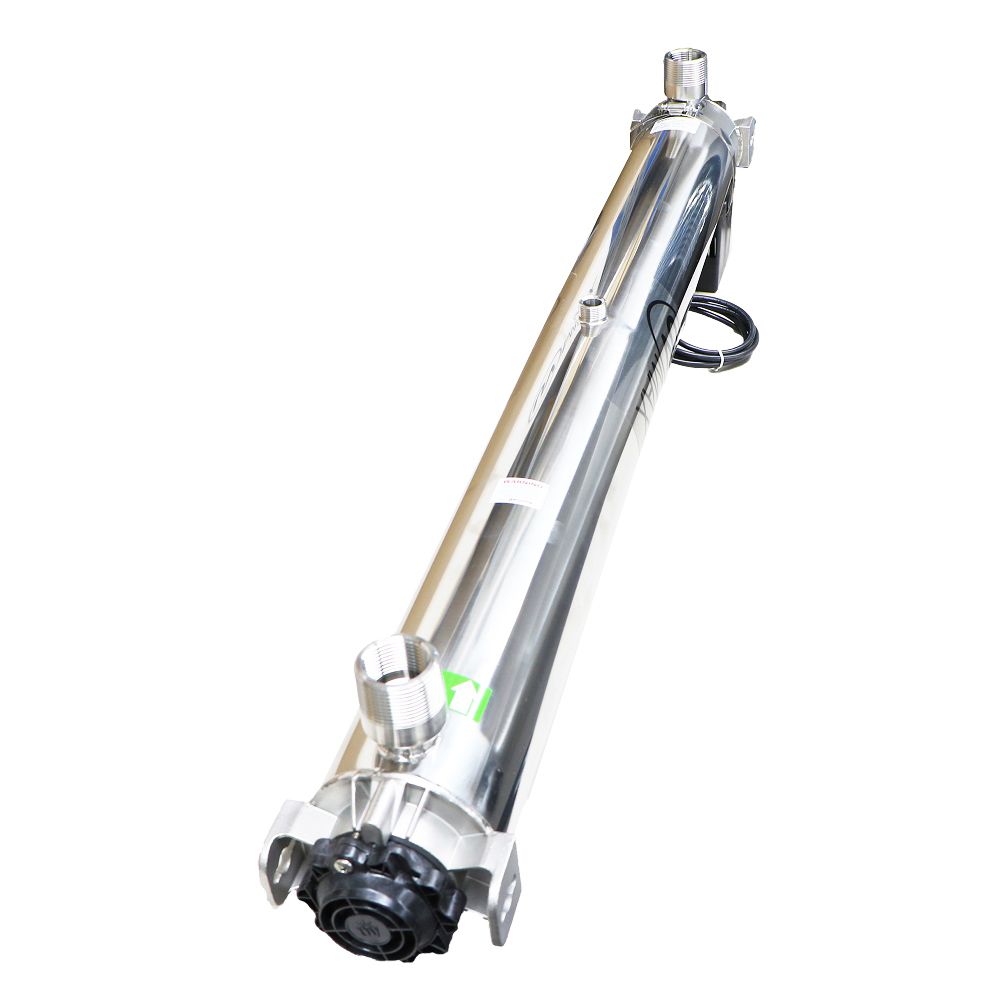

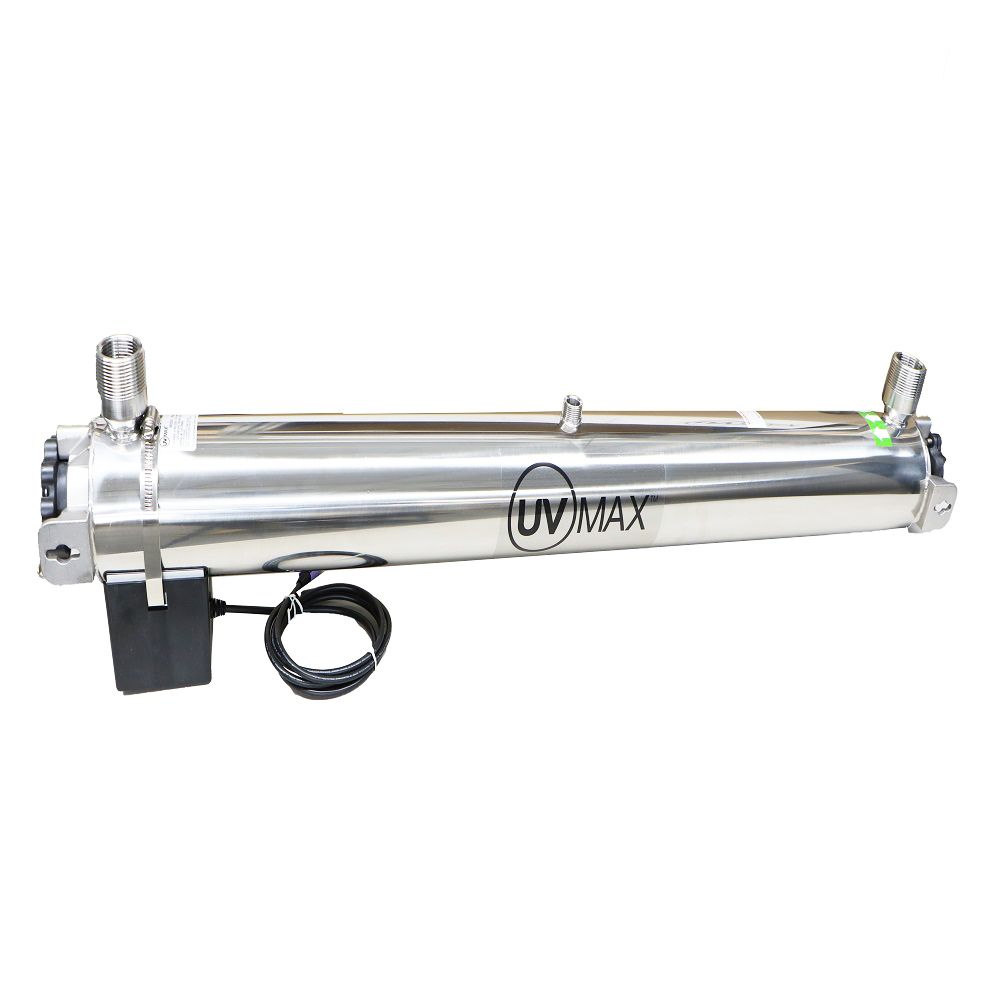

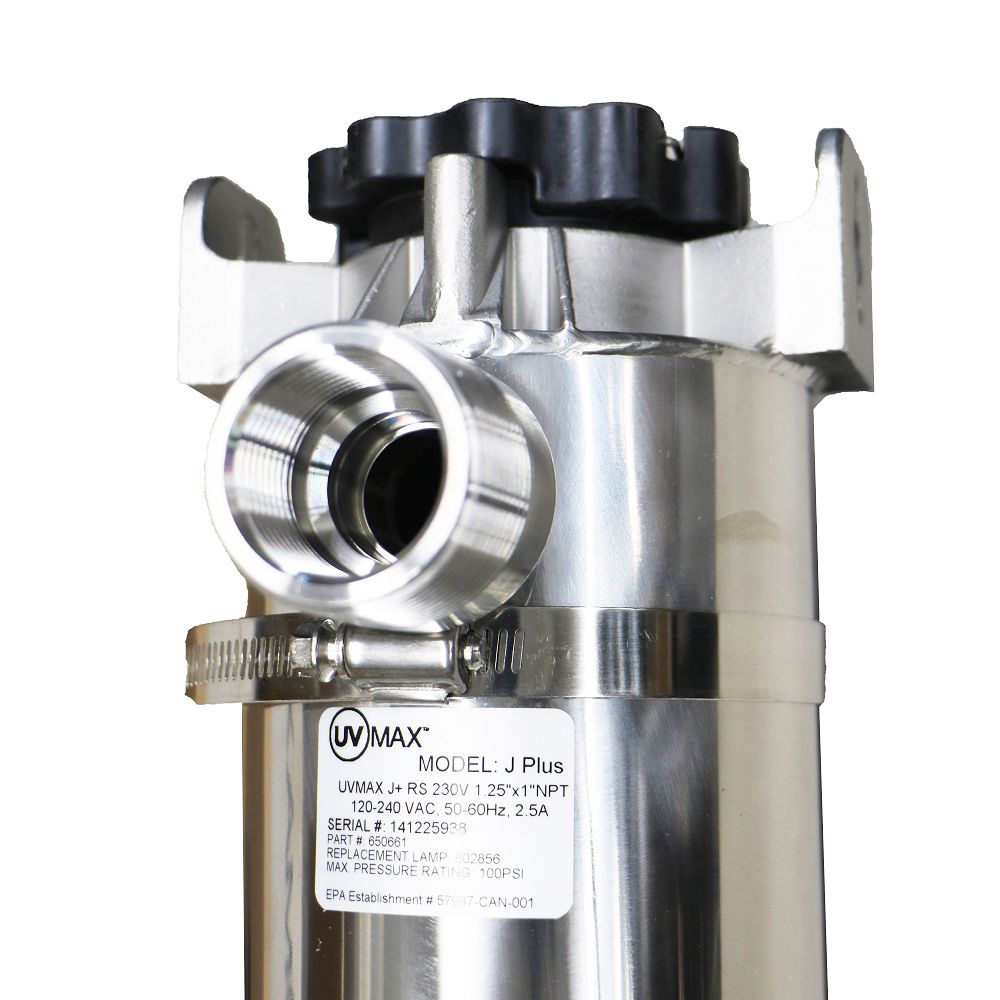

Viqua UVMax J Plus Ultraviolet Water Systems 44.9 gpm

The Viqua UVMax J Plus UV Water System is designed using the most advance UV technology available, providing a system with years of trouble free operation and minimum maintenance required.

Features:

• Type 316 stainless steel reactor
• Viqua UVMax J Plus UV purification water system has color coded plug and play connections

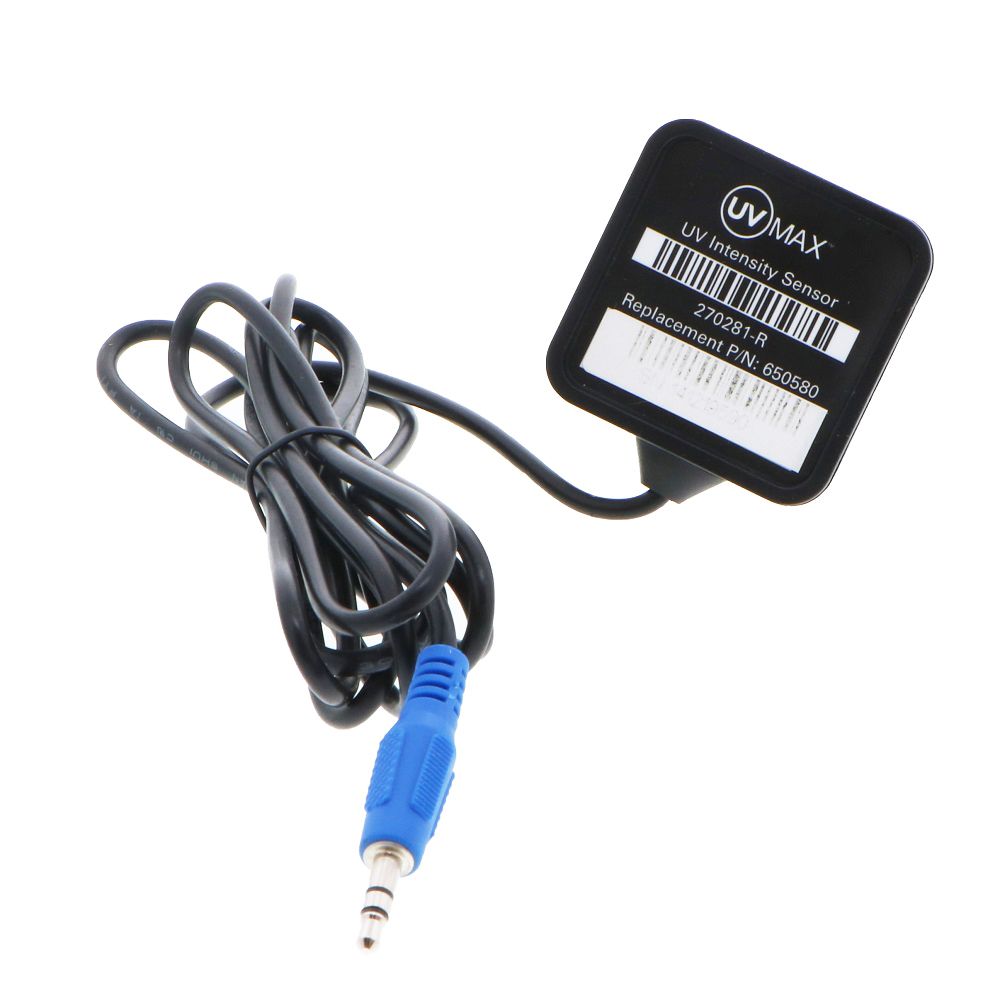

• UV intensity monitor with diagnostic test
• CoolTouch fan
• Flow Rate: 44.9 gpm
• Inlet/Outlet: Combo 1.25" NPT, 1" MPT
• Voltage: 120-240V (50-60Hz)
• Chamber Material: 316L SST
• Power Consumption: 230 watts
• Chamber Dimensions: 40.6" x 3.9"

This system is compatible with the 602856 Trojan Lamp and the 602976 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for J Plus includes:

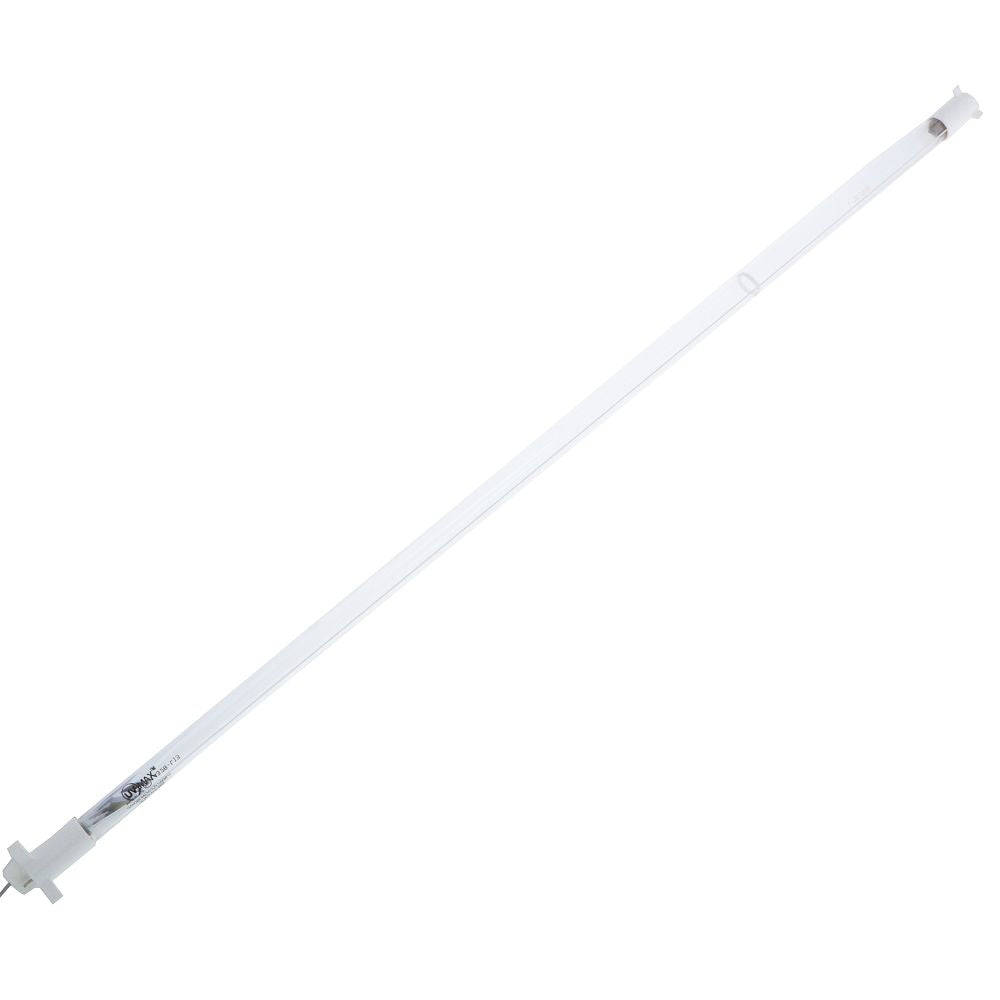

• Trojan Lamp (1): 602856
• Trojan Quartz Sleeve (1): 602976
• Trojan O-Rings (2): 2233

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-104 °F
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	10
Outlet Connection	1-1/4" MPT 1" FPT
Power	230 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3.9"
Flow Rate	44.9 GPM (30mJ/cm2 Dose) 44.1 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Shipping Dimensions
Shipping Length	44 in.
Shipping Width	9.5 in.
Shipping Height	10.5 in.
Product Weight & Dimensions

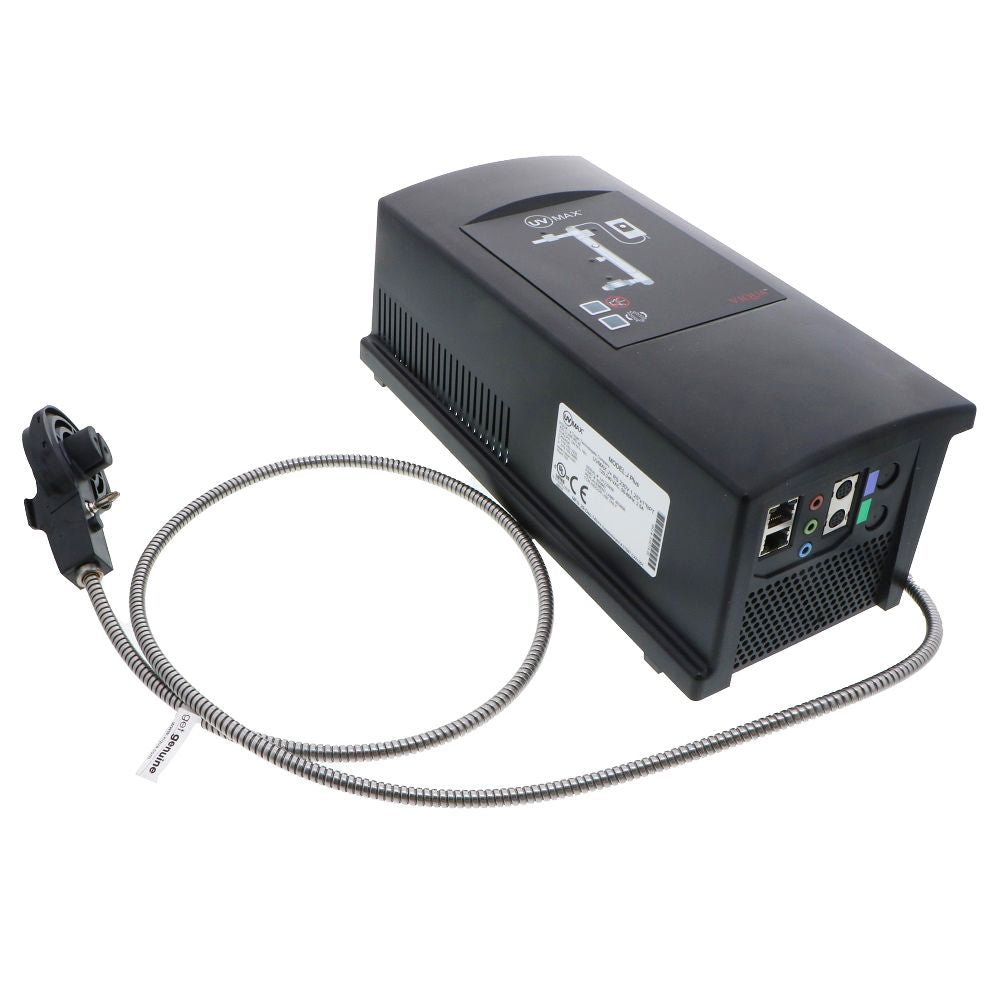

Power Supply Dimensions	13" x 6-1/2"
Product Weight (lbs)	18
