Viqua Sterilight SCV-320 Cobalt Series UV System 6.9 gpm

The Viqua Sterilight SCV-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:

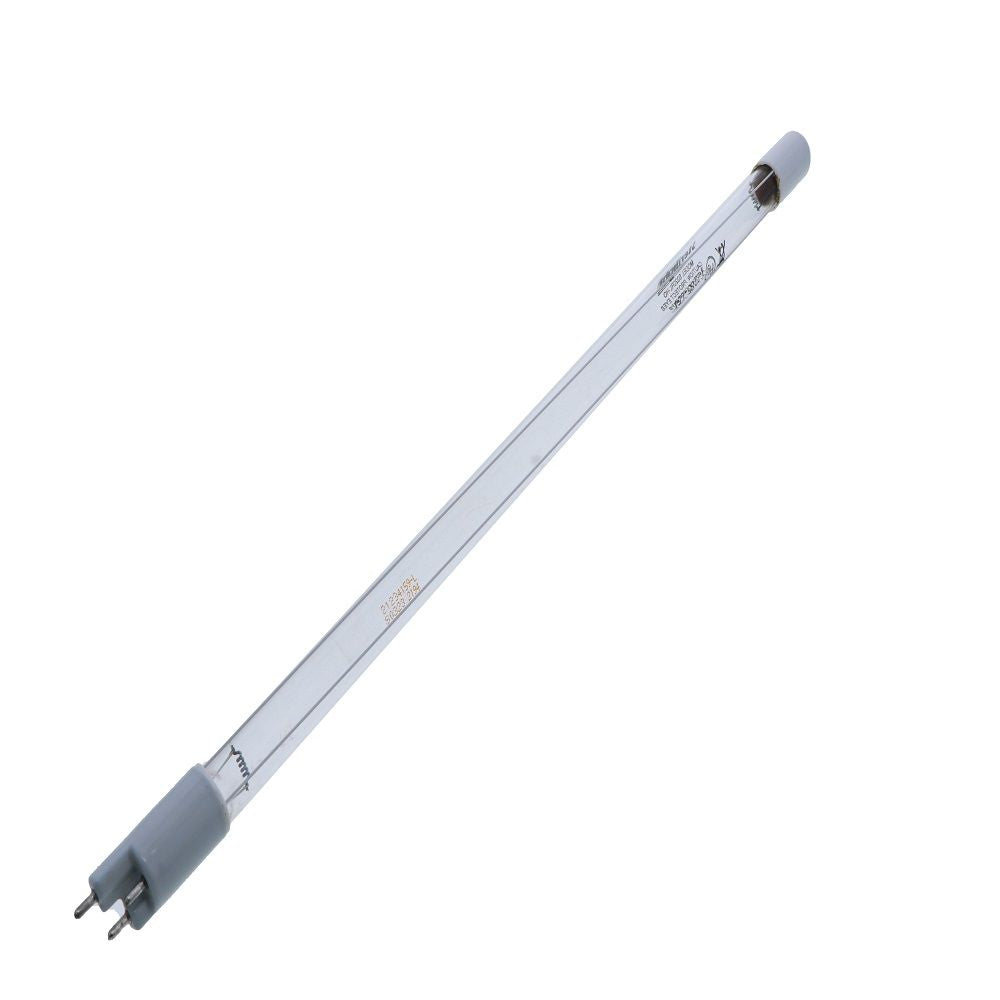

• Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
• 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals

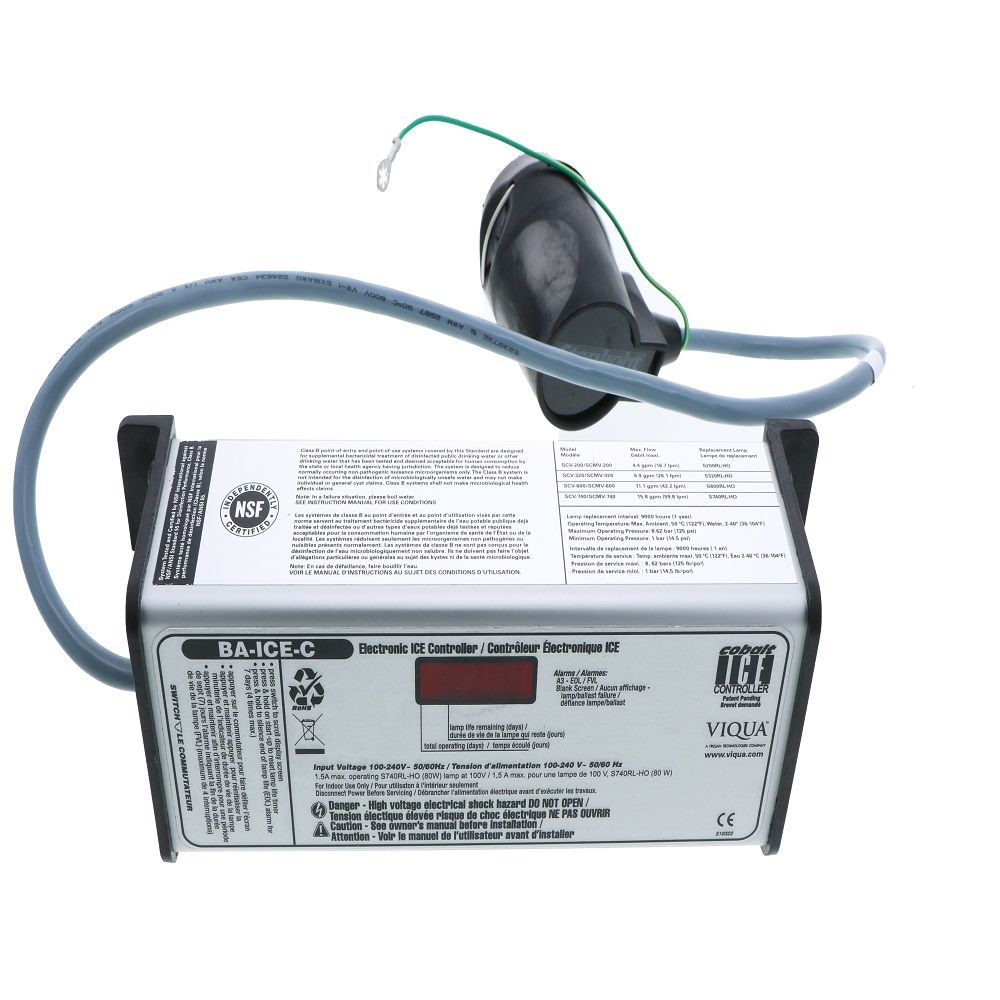

• Cobalt ICE controller provides constant output current and a universal power input.
• Controller alerts user with alarm if UV lamp fails.
• Sealed case on the controller helps to prevent damage from accidental intrusion

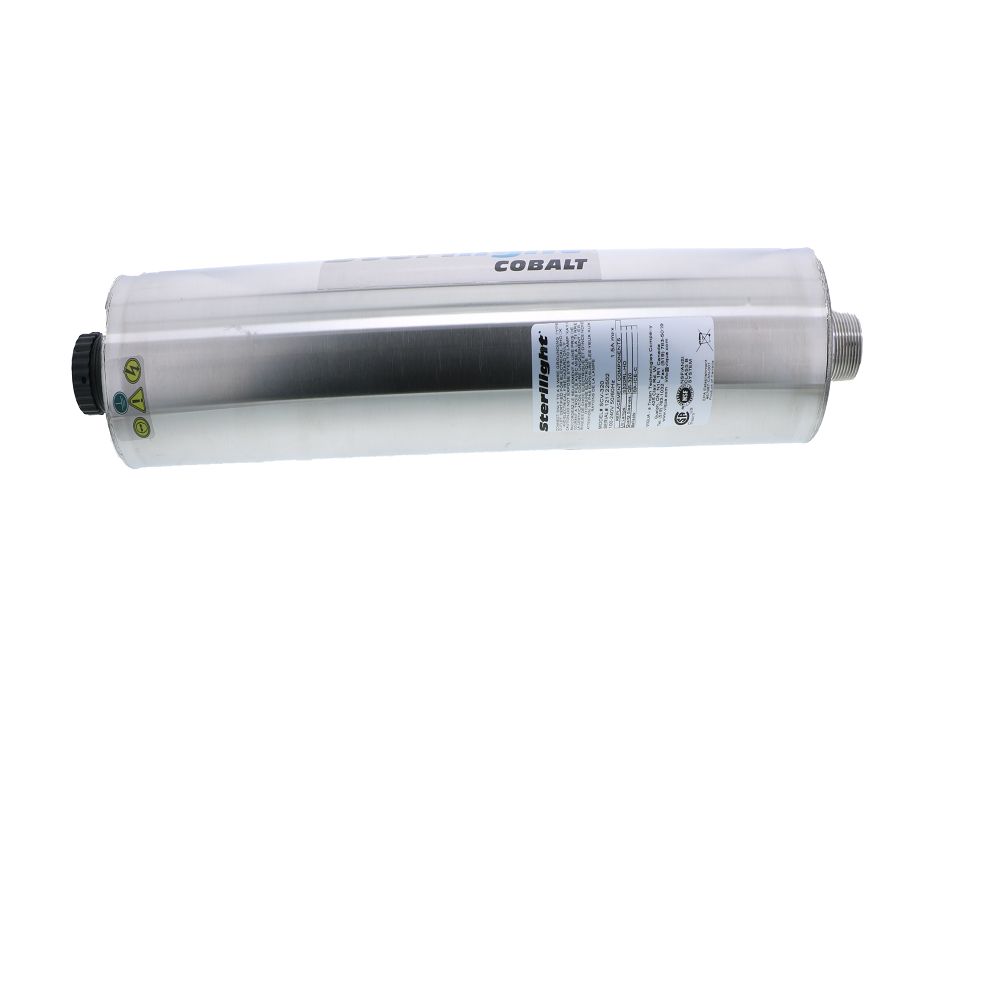

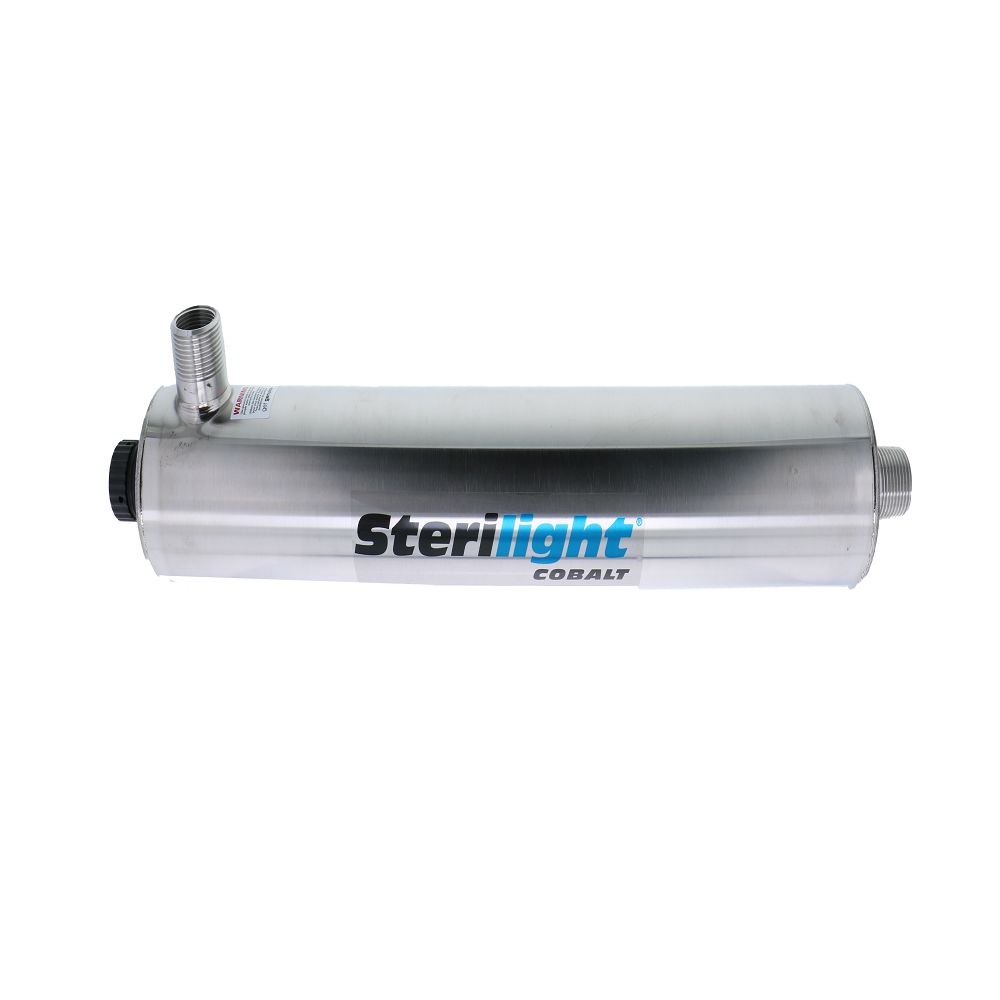

• Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
• Compact design reduces installation time and takes less space
• Lamp can be changed without interruption water flow

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	36-104 °F
Body Material	304 Stainless Steel
Features	Audible Lamp Failure Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	1" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	1" MPT
Power	42 Watts
Size	1"
Connection Type	Male (MPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3-1/2"
Flow Rate	6.9 GPM (16mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Warranty & Certifications
Warranty	7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Length	22.8"
Product Weight (lbs)	11.5
