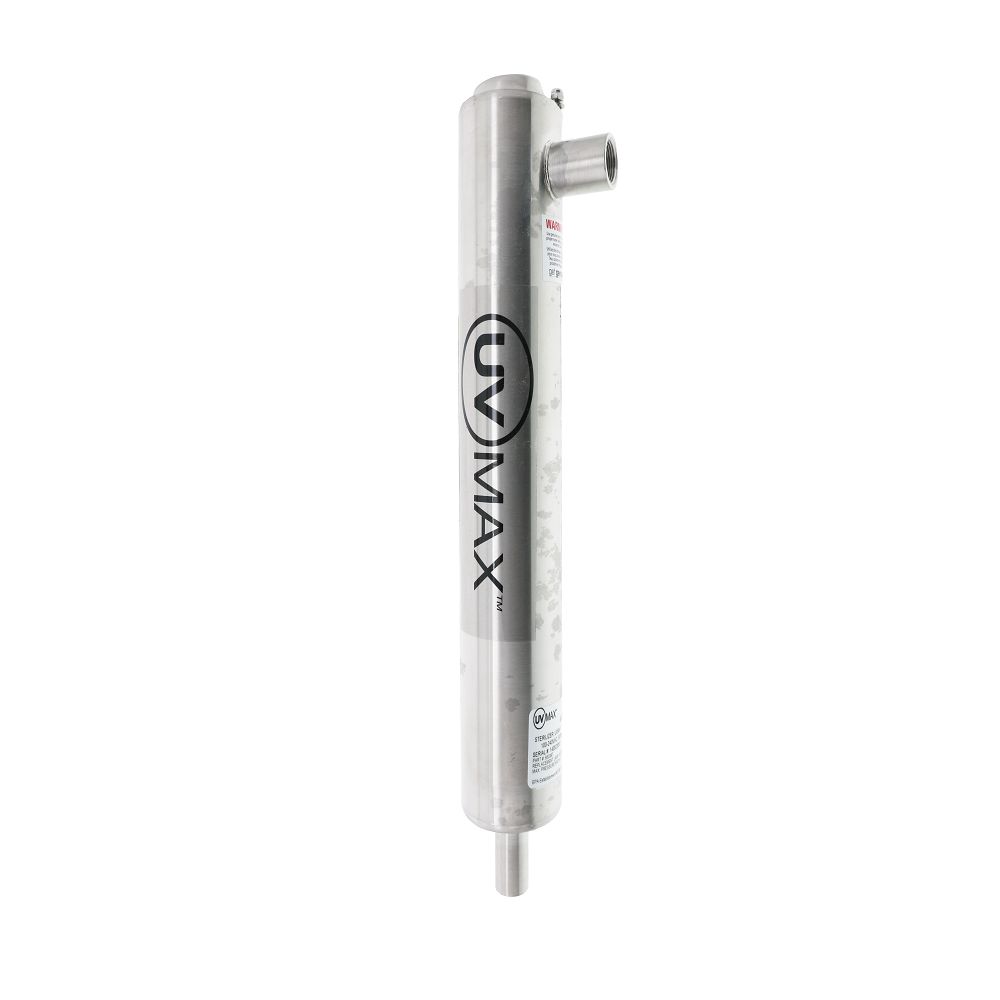

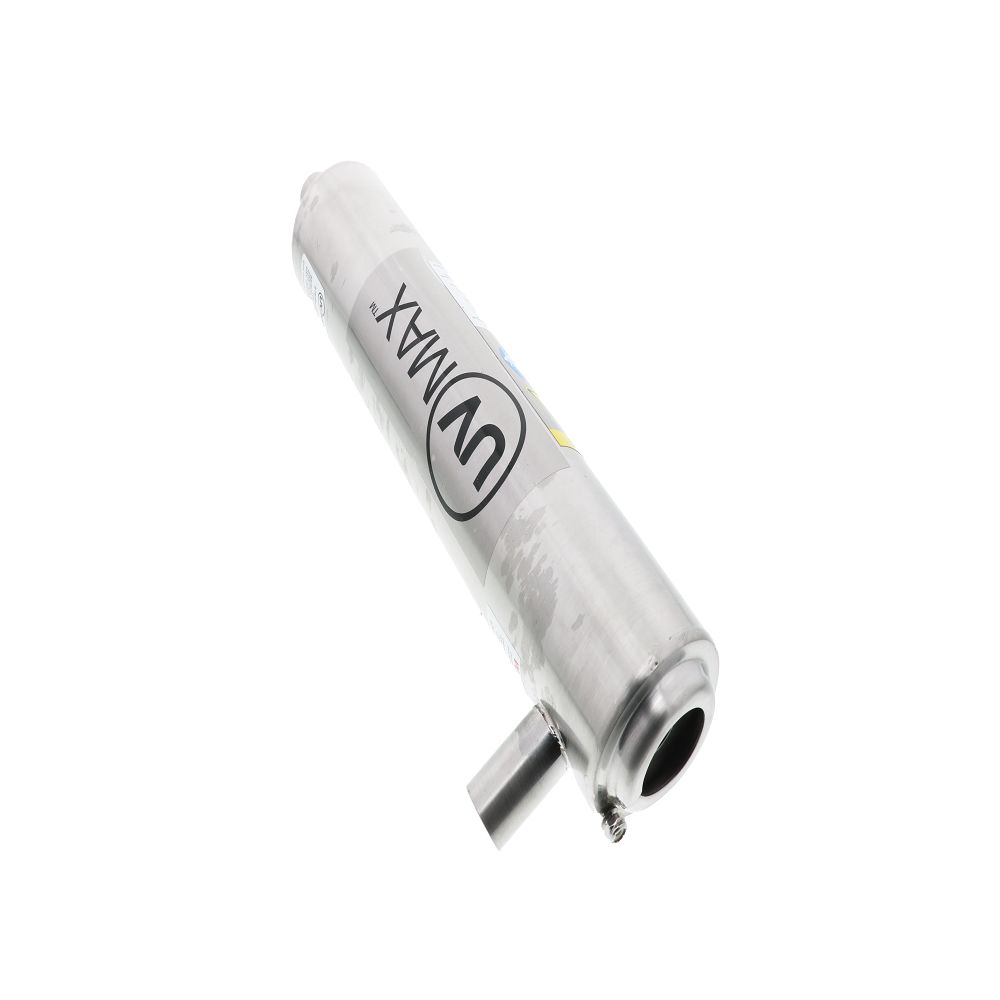

Viqua UVMax Model A Ultraviolet Water System 2 gpm - 230 Volt

Install a Viqua UVMax Model A Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax Model A is a point-of-use ultraviolet disinfection water treatment system offers a 2 gpm water flow rate. The UVMax Model A compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua´s quality and reliability from its 2 gpm high-output ultraviolet water purification system the Viqua UVMAX Model A.

Features:

• Stainless steel chamber with safety cap
• Universal power input
• High-output UV lamp
• Environmentally-friendly
• Full 3 Year Warranty

This system is compatible with the 602803 Trojan Lamp and the 602730 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for UVMAX A includes:

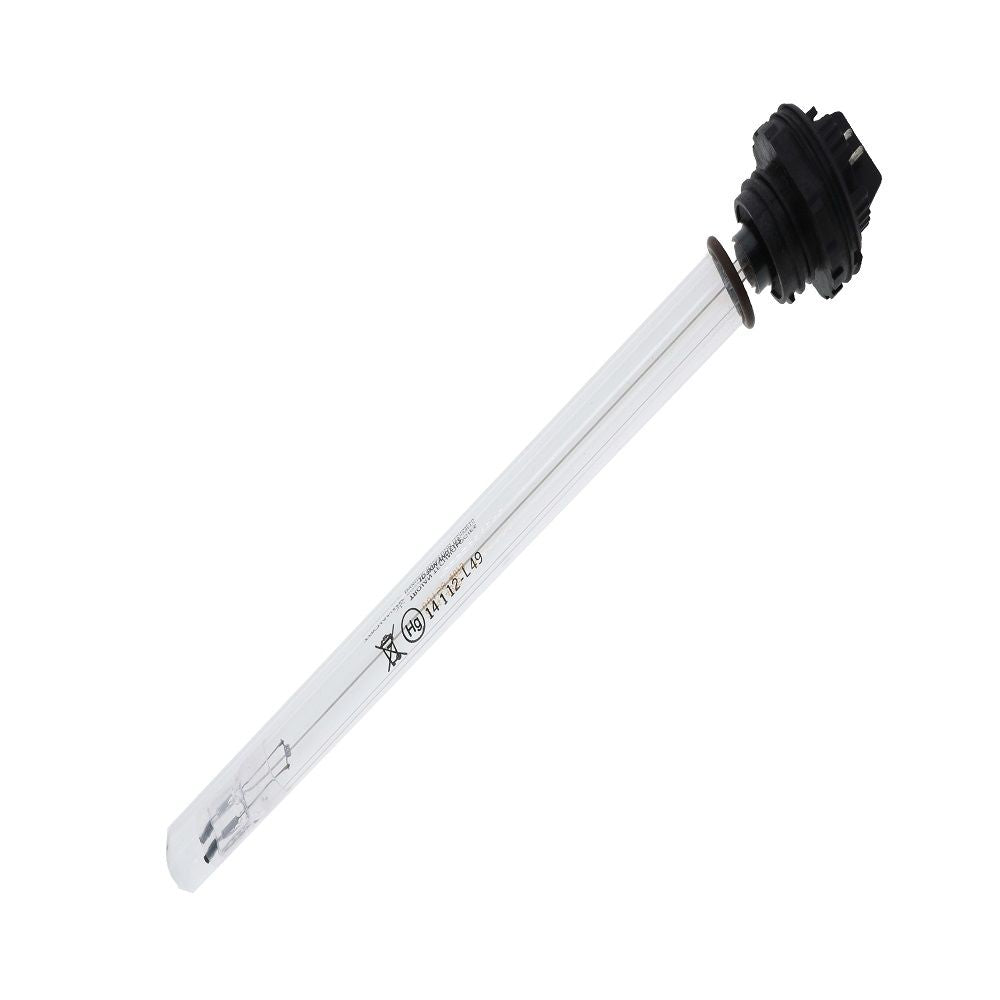

• Trojan Lamp (1): 602803
• Trojan Quartz Sleeve (1): 602730
• Trojan O-Rings (2): 2045

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-122 °F
Body Material	304 Stainless Steel
Frequency Rate	50/60 Hz
Inlet Connection	3/8" FPT 3/4" FPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	3/8" FPT 3/4" FPT
Power	22 Watts
Size	3/8" 3/4"
Connection Type	Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	2-1/2" 15-1/2" X 2-1/2"
Flow Rate	4 GPM (16mJ/cm2 Dose) 2 GPM (30mJ/cm2 Dose) 1 GPM (40mJ/cm2 Dose) 2 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	230 V
Warranty & Certifications
Warranty	3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	6.75 in.
Shipping Height	7 in.
Product Weight & Dimensions

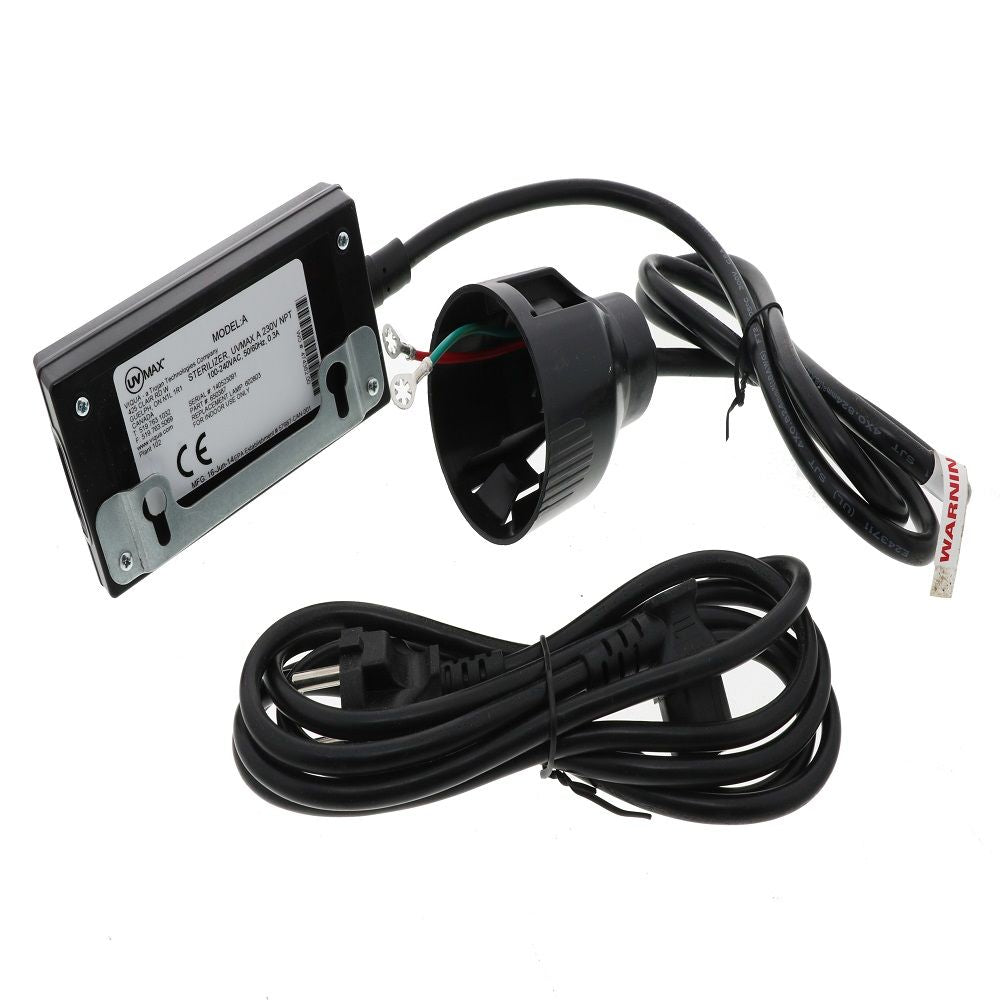

Power Supply Dimensions	2.8"x3.3"
Product Length	15-1/2"
Product Weight (lbs)	5
