Neo-Pure UV Disinfection Systems for Vending Machines

The Neo-Pure UV disinfection systems for Vending Machines are designed to assimilate with vending machines that connect to a water supply. They destroy illness-causing bacteria, viruses, and cysts like Giardia and Cryptosporidium at 99.99% efficiency. By stopping these microorganisms from reproducing, the NPV units eliminate their ability to make your customers sick. These units feature integral dry contacts, making installation of the commercial UV system quick and easy. The monitor provides output data to make sure your system is working consistently by indicating a green LED status showing the lamp is on, a red LED status indicating that the power is on but the UV lamp is not connected, and no light shown indicating that the power is off. Ensuring that water used in your vending machine is free from harmful bacteria gives you and your customers that the product provided has been delivered with the utmost care.
System Features:

• Vending Platform with integral dry contacts (NO, NC, COMMON)

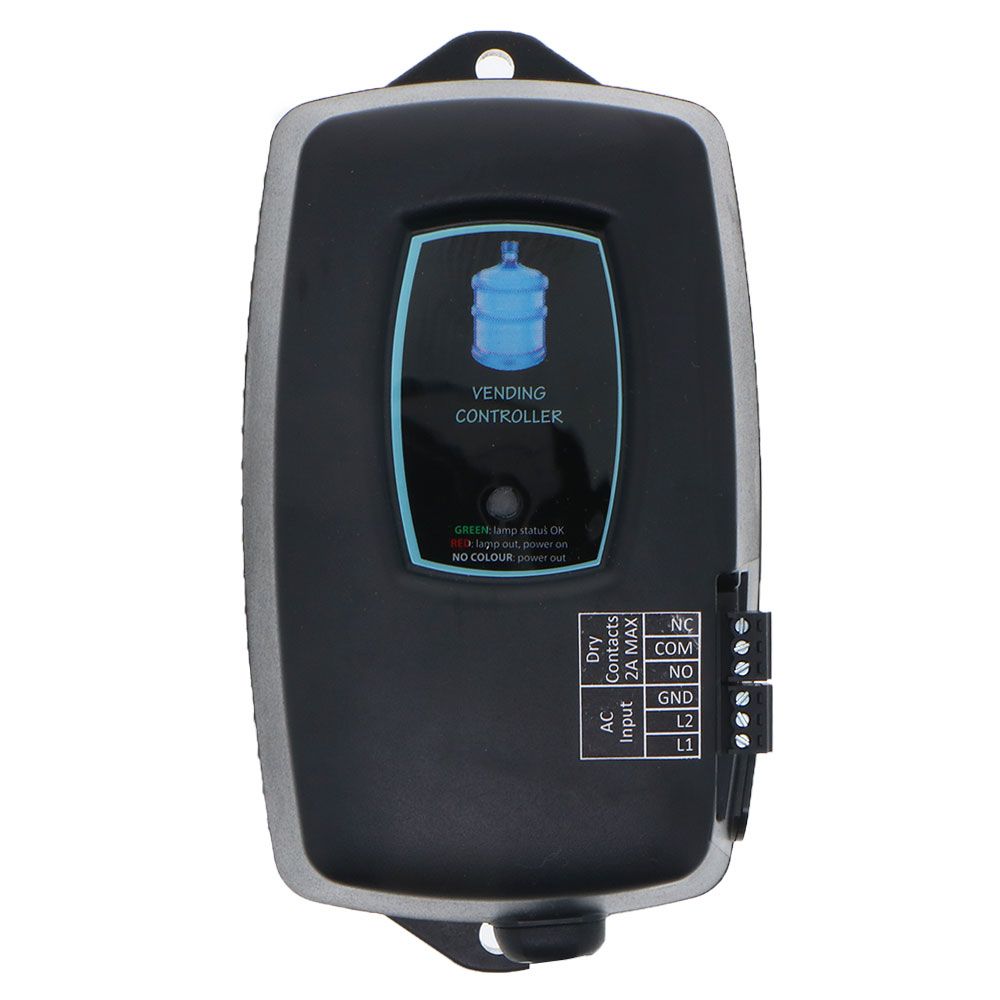

• LED Indicators to assist with lamp status and power explanation

Specifications

• Flow Rate: 3 GPM or 6 GPM Units are Available
• Electrical: 90-265V/50-60Hz
• 3 GPM Connection: 1/2" MPT
• 6 GPM Connection: 3/4" MPT

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	1 Amps
Body Material	304 Stainless Steel
Inlet Connection	1/2" MPT 3/4" MPT
Max Pressure (Psi)	150
Min Pressure (Psi)	10
Outlet Connection	1/2" MPT,3/4" MPT
Size	1/2" 3/4"
Connection Type	Male (MPT)
Flow Rate	3 GPM (30mJ/cm2 @ 95% UVT) 6 GPM (30mJ/cm2 @ 95% UVT)
Type	Single UV System
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	6.75 in.
Shipping Height	6.75 in.
Product Weight & Dimensions
Dimensions	2.5” D x 14.3” L, 2.5” D x 21.3” L
Product Weight (lbs)	5.8
