Viqua Sterilight S80 Light Commercial UV Water Treatment System

The Viqua Sterilight S80 UV Water Treatment System utilizes Viqua´s revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature and does not waste any water.
Specifications:

• Controller offers intuitive interface w/ alarm mute button and new lamp button.
• Type 316 stainless steel reactor
• System delivers a 30 mJ/cm dose at end of lamp life
• Cool Touch fan reduces elevated water temperatures
• LP HO amalgam based UV lamp has a 2 year life
• Color coded plug and play connections

Easy to read LED indicators for:

• Lamp operation
• Ballast operation
• Solenoid operation
• Fan operation
• Sensor reading

This system is compatible with the S37RL-AM Sterilight Lamp and the QS-37 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S80 includes:

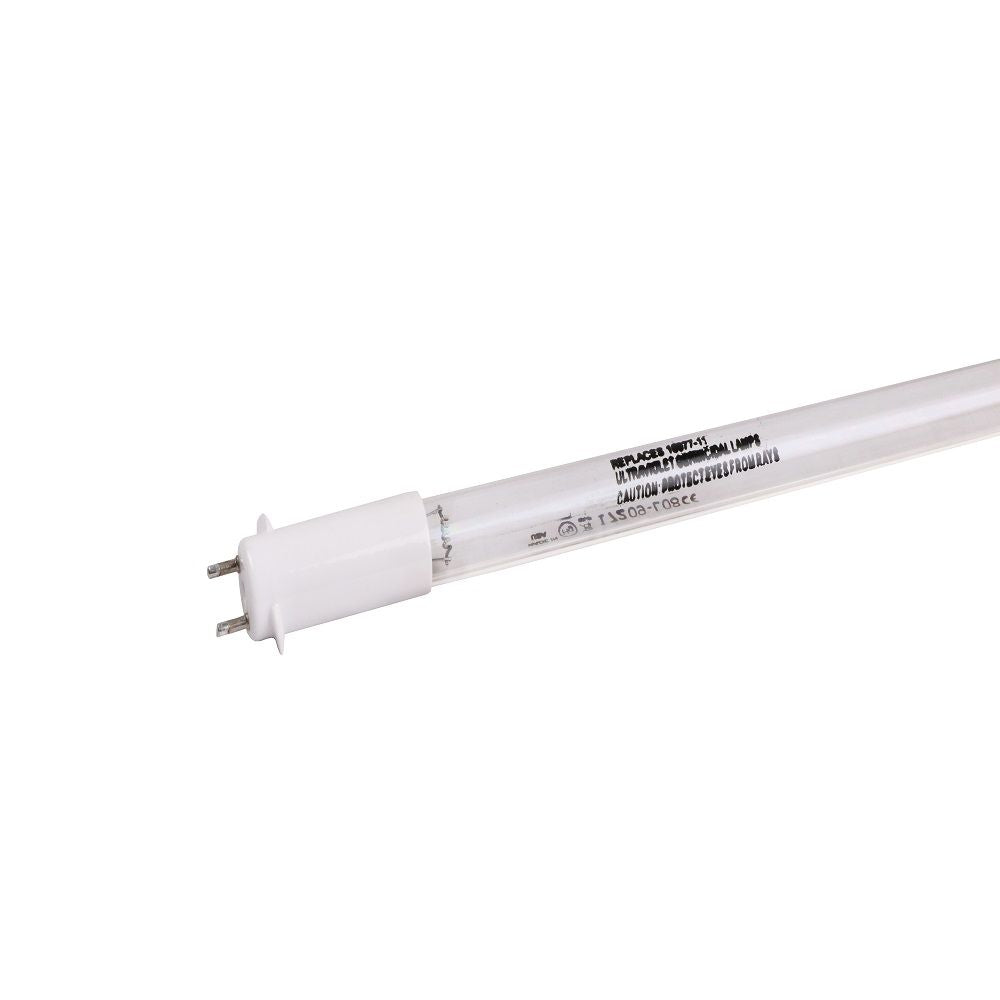

• Sterilight Lamp (1): S37RL-AM

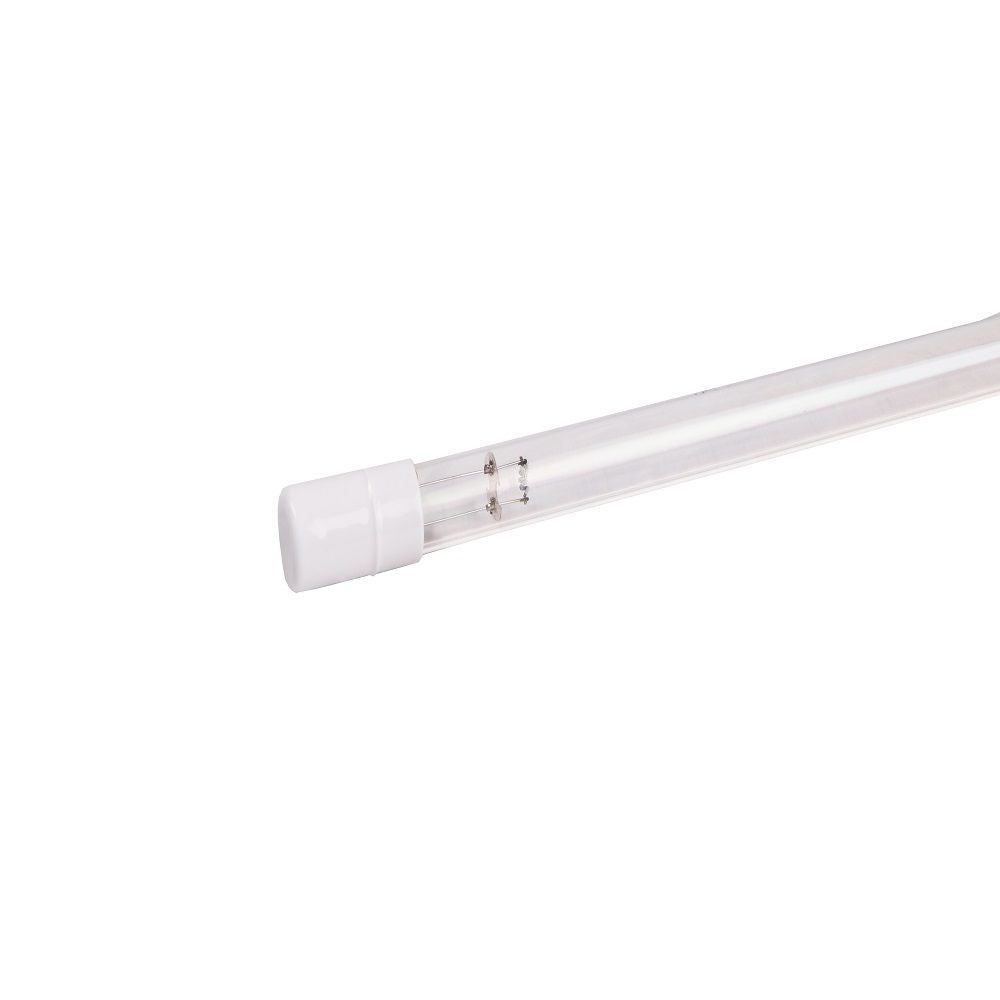

• Sterilight Quartz Sleeve (1): QS-37
• Sterilight O-Ring (1): 2233

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-104 °F
Features	Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	2" MPT
Max Pressure (Psi)	100
Min Pressure (Psi)	10
Outlet Connection	2" MPT
Power	230 Watts
Size	2"
Connection Type	Male (MPT)
Diameter	4"
Flow Rate	80 GPM (30mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Warranty & Certifications
Warranty	10 yr for chamber, 1 yr for lamps and UV intensity monitors, 5 yr on the power supply and all electrical components
Product Weight & Dimensions
Power Supply Dimensions	13" x 6-1/2"
Product Length	41"
Product Weight (lbs)	16
