Viqua Sterilight SSMV-24 Silver Plus UV System 3.6 gpm

The quality of drinking water can change with time and become contaminated with harmful bacteria. The Viqua Sterilight Silver™ system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application. The Sterilight Silver™ system has been designed and tested to ensure quality drinking water is at everyone´s finger tips. Class B certified.

Features:

• Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.
• Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification.
• The system is easy to maintain and service.

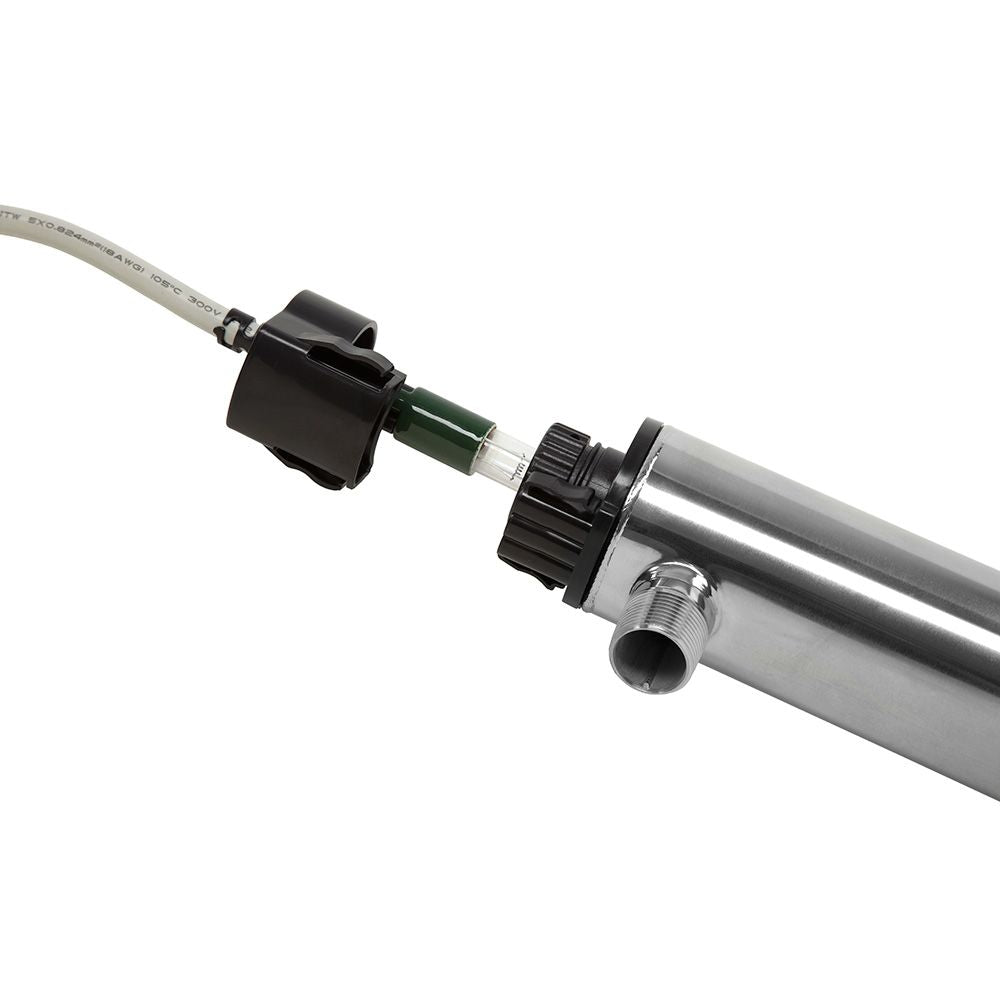

• The ultraviolet lamp can be changed without interrupting the water flow.
• Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
• The Silver™ ICE power supply visually displays the remaining lamp life and will go into alarm if the lamp fails to notify the homeowner. Monitored systems also have the ability to read the percentage of UV output.
• The power supply has a sealed case to prevent damage from accidental water intrusion and is CSA and CE compliant.
• Monitored systems have a specialized 254nm UV intensity sensor which notifies homeowner of changes in UV performance.
• Monitored systems have an optional solenoid valve which will stop the flow of water through the chamber should any changes in the UV performance falls below a safe level.

This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SSMV-24 includes:

• Sterilight Lamp (1): S463RL
• Sterilight Quartz Sleeve (1): QS-463
• Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	36-104 °F
Features	Audible Lamp Failure Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	3/4" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	3/4" MPT
Power	30 Watts
Size	3/4"
Connection Type	Male (MPT)
Diameter	2-1/2"
Flow Rate	3.6 GPM (16mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Warranty & Certifications
Warranty	7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
Product Weight & Dimensions
Power Supply Dimensions	7.3"x3.2"x2-1/2"
Product Length	22"
Product Weight (lbs)	9
