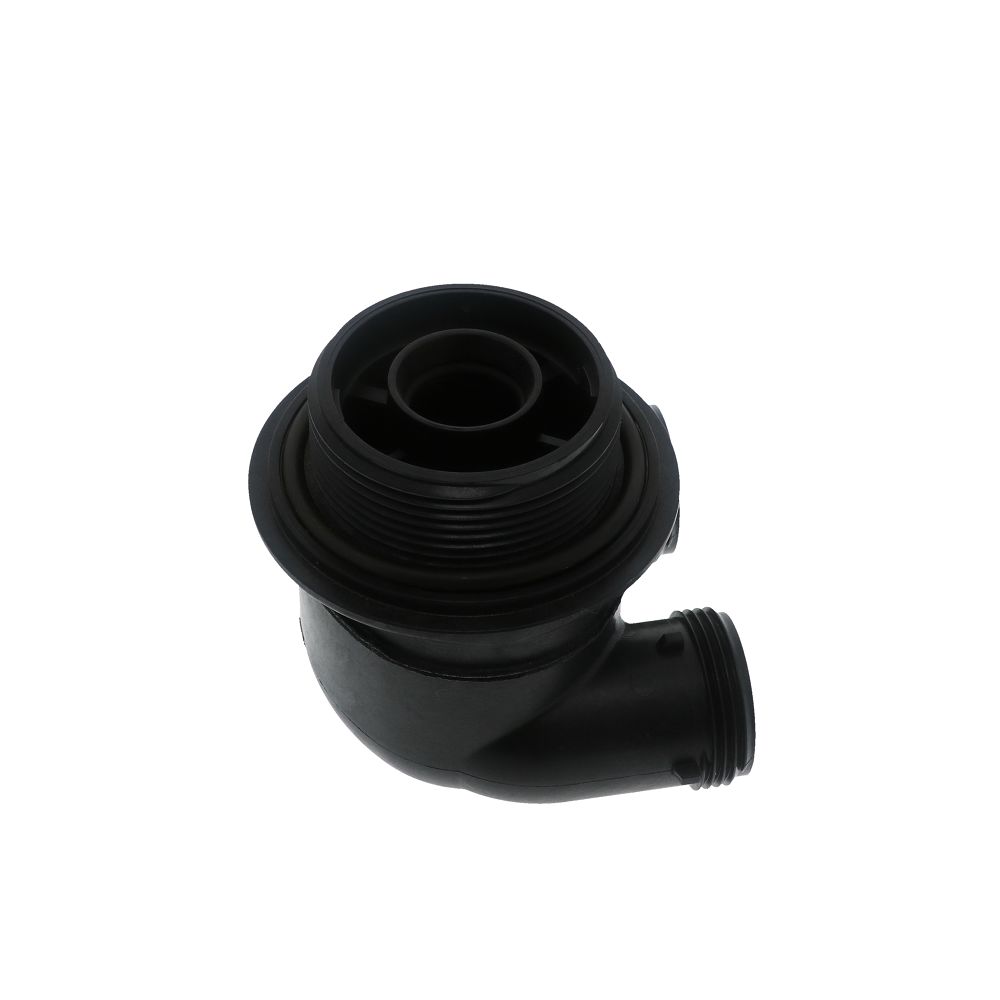

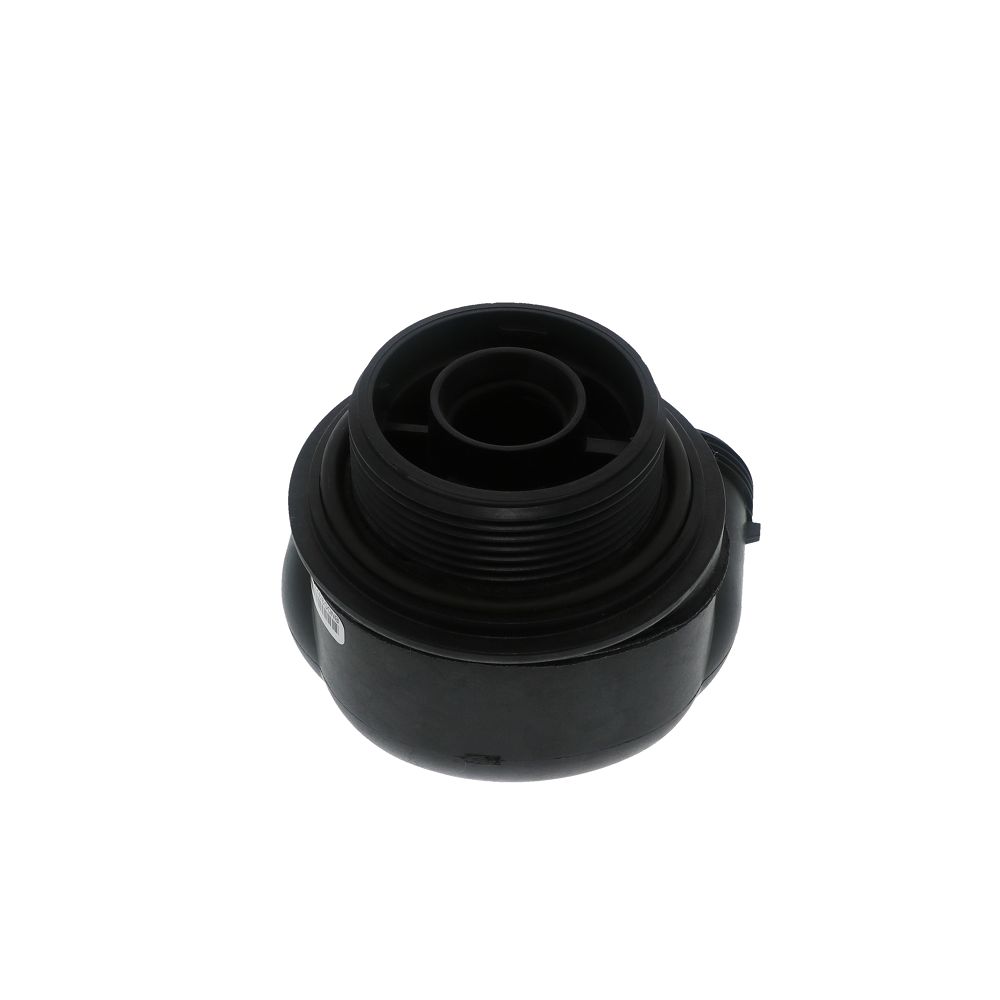

C-Series C1190 In/Out Head w/ Vent Trap

The C1190 is ideal for simple in-out filters such as pH neutralizers, carbon filters, etc. It is molded out of a durable thermoplastic resin. It can be used for Up flow or Down flow service. The C1190 requires a C-Series fitting kit for a proper plumbing connection. The vent port can be drilled out to accept an air relief valve and the 1" head is fully ported to provide maximum flow rates. The parallel inlet and outlet ports easily adapt to standard plumbing or Clack´s all plastic, four-way bypass valve.

Features:

• Drillable, pre-tapped 1/4" FIPT vent port
• Fits a standard 2-1/2" NPSM tank thread
• Features a 1-1/20" (1.050") distributor opening

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Pressure (Psi)	125
Max Temp (°F)	100
Min Pressure (Psi)	20
Min Temp (°F)	40
Color / Finish	Black
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.25
