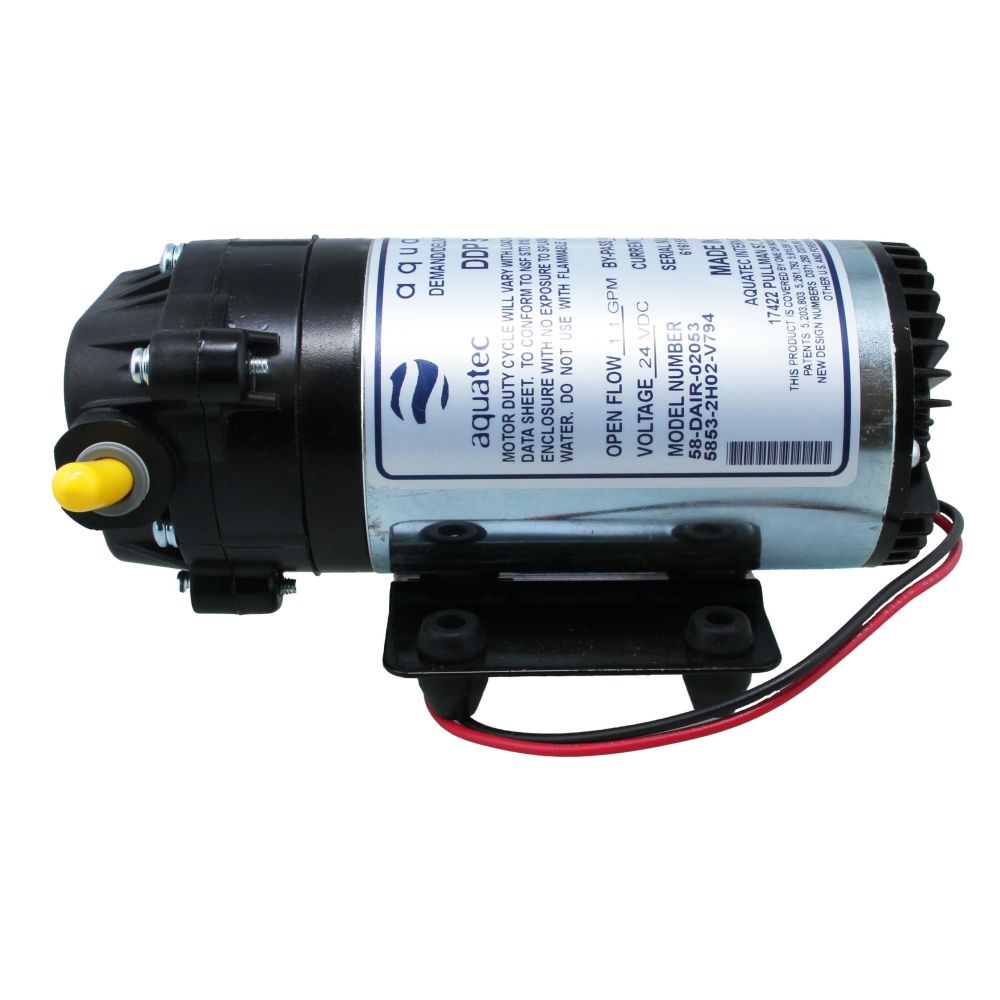

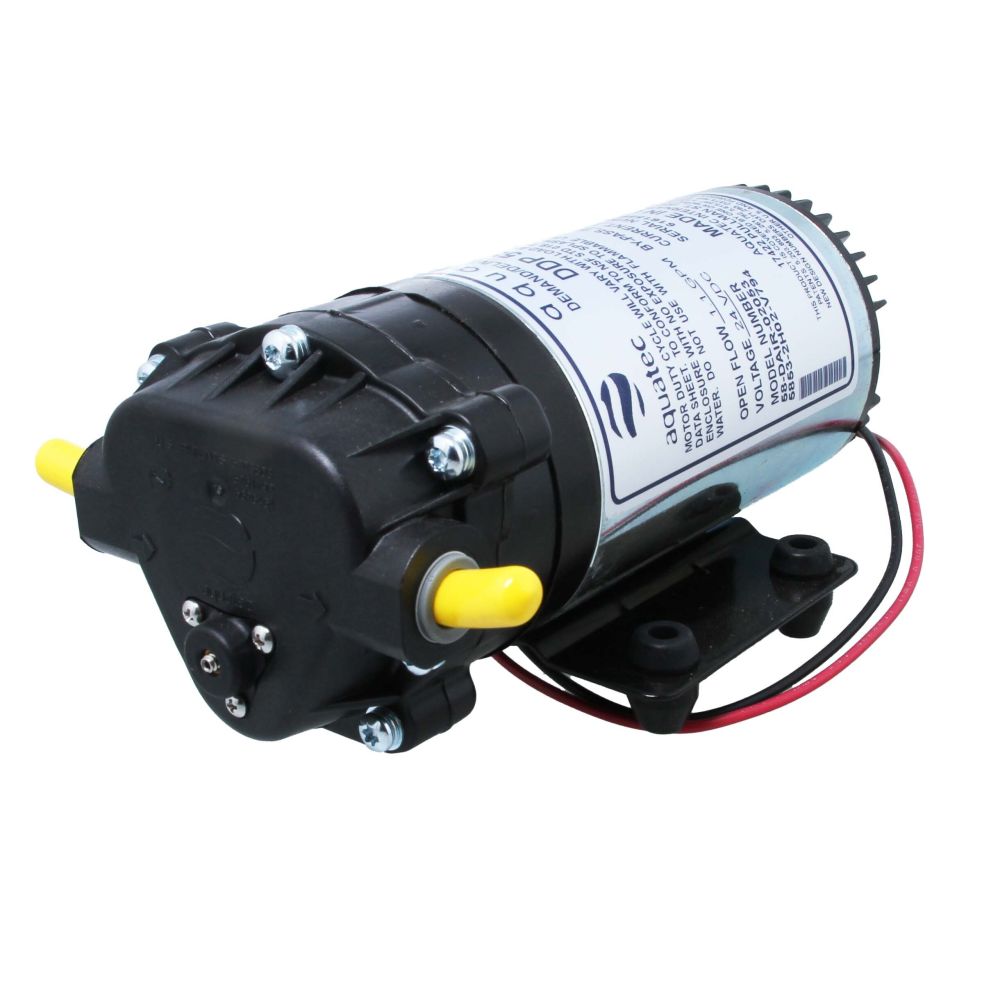

Aquatec 58-DAIR-02053 Pump 1.1 GPM, 3/8"FPT, 24VDC

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Specifications:

• Open flow: 1.1 gpm

• Switch: N/A

• Connections: 3/8" FPT ports

• Voltage: 24VDC

• Valves: EPDM

• O-rings: Nitrile

• Diaphragm: Santoprene

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Inlet Connection	3/8" FPT
Outlet Connection	3/8" FPT
Pump Max Flow Rate (Gpm)	1.1
Pump Max Pressure (Psi)	90
Series	5800
Size	3/8"
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	24VDC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 18, NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.25
Product Length	7.5
Product Width	4.25
Product Weight (lbs)	6.1
