Aquatec CDP 8800 Pressure Boost Pump 110 PSI, 1/4 JG, 24 VAC

Aquatec 8800 Series Pumps are used in RO systems with flow rates from 100-200 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8842-2J03-B424 is designed for operation with a transformer and tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.
Features:

• Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.
• NSF Certified.
• The Aquatec 8842-2J03-B424 pump is certified to NSF standard 58.
• Made in the USA.
• The Aquatec 8842-2J03-B424 pump is proudly made and manufactured in the USA.

Specifications:

• Voltage: 24VAC
• Prime: 6 foot lift, self priming, capable of running dry
• Outlet pressures up to 110 PSI
• Inlet/Outlet: 1/4" quick connect John Guest ports
• Max Liquid Temperature: 170°F
• Manufactured of NSF 58 Certified Materials

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.53-1.2 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	Max 170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	0.4
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Feet
Voltage Type	AC

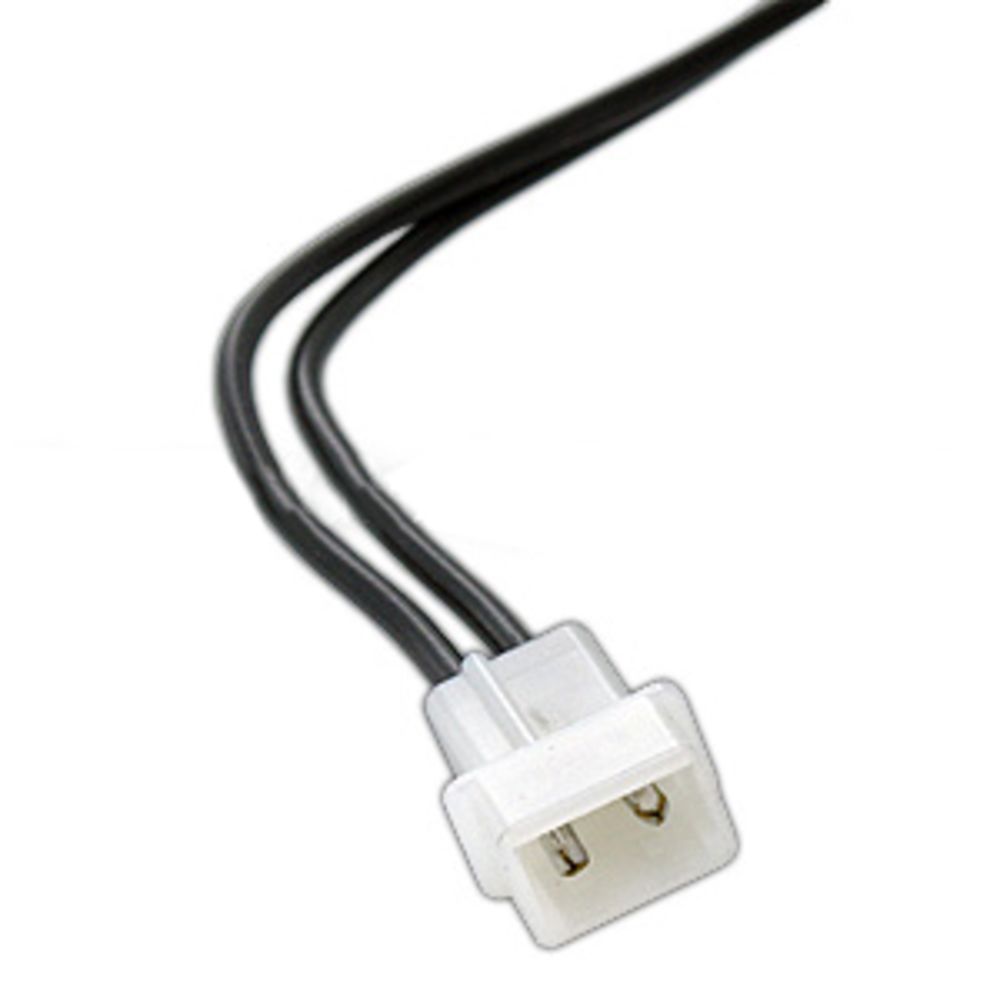

Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	6.1
