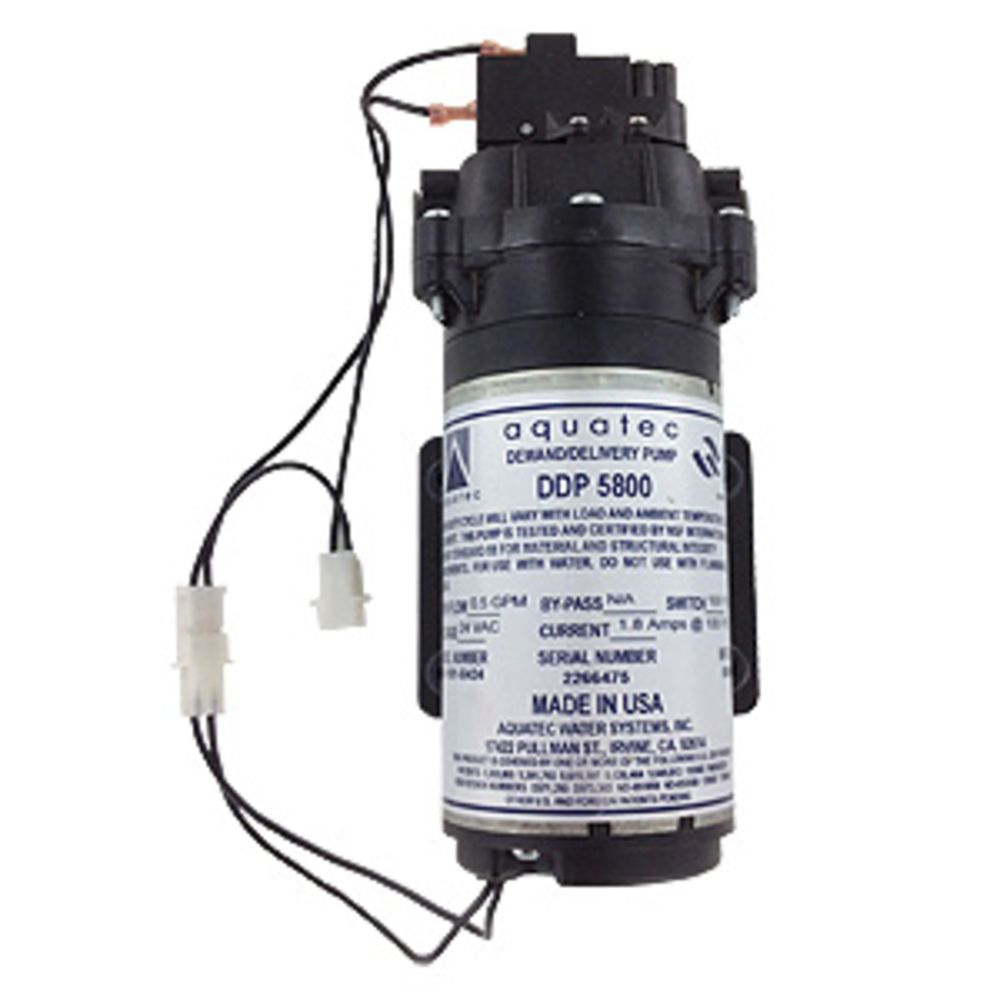

Aquatec 5853-7E12-B424 Pump .85 GPM, 3/8"JG, 24VAC

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:

• 60 psi shut-off pressure
• 3-chamber construction
• Closed impervious diaphragm
• Asymmetrical manifold
• Integral switch or bypass
• Highest structural integrity
• Seven point clamping
• Engineered composite plastics
• Corrosion resistant metal
• Multiple porting options

Benefits:

• Adjustable switch and bypass settings
• Self-priming, auto-purging
• Near silent operation at lower flows
• Highly efficient
• Minimal pulsations
• 7 year design life
• Runs dry without damage

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	1.9 Amps
Diaphragm Materials	Santoprene
Housing Material	Polypropylene
Liquid Temperature	Max 140 °F
Pump Max Flow Rate (Gpm)	0.9
Push-In Size	3/8" OD
Series	5800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	9.25
Product Width	4
Product Weight (lbs)	6.1
