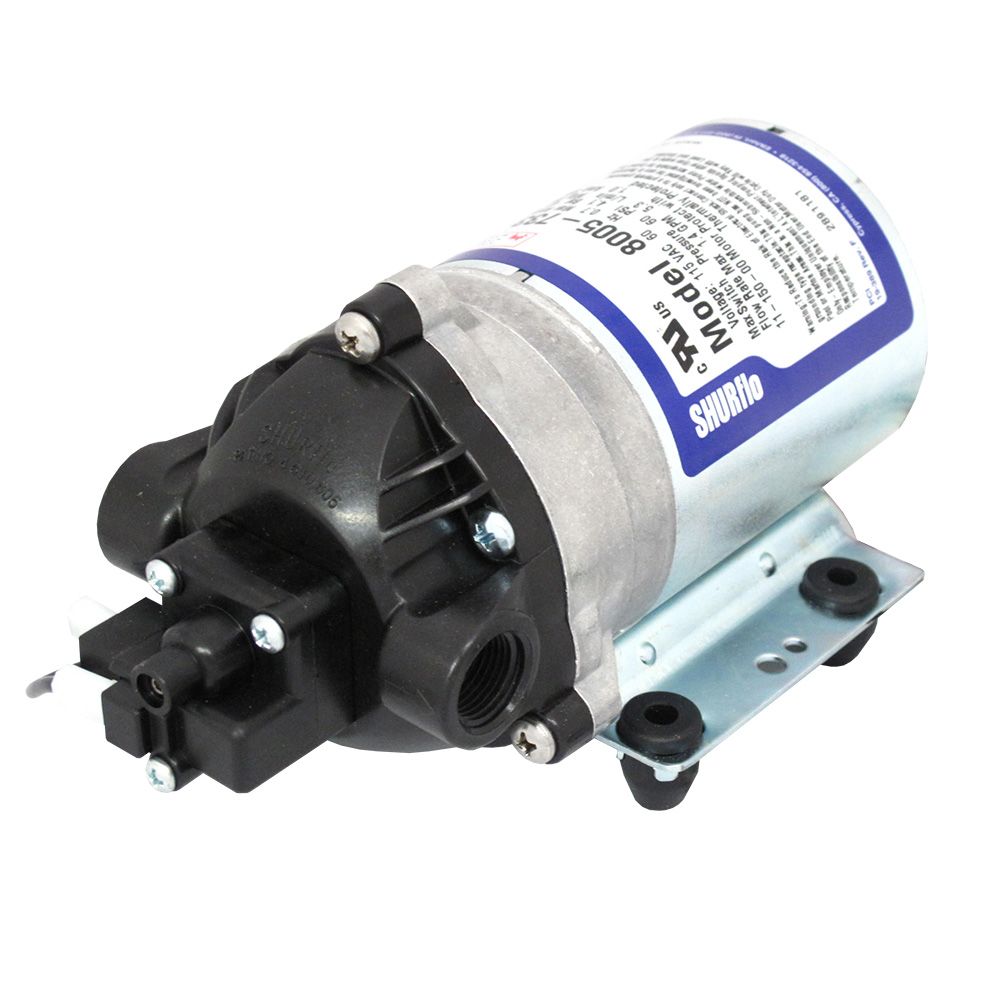

SHURflo 8005-733-255 Demand Pump 1.5 gpm 60 psi 115VAC

The SHURflo 8005-733-255 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.5 GPM. The pump can be mounted in any position, is compact and is designed for long trouble-free life.

specifications:

• 1.5 GPM flow rate
• Demand Switch
• 45psi internal bypass
• Can run dry without damage
• Self priming up 8 vertical feet
• 3/8" NPT female ports
• Santoprene diaphragm
• Built-in check valve
• UL Recognized Component
• NSF and CSA listed

This demand pump replaces part number 32505 for the Pure Water Mega Classic and A-12 distillers.

Applications:

• Water delivery

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.31-0.54 Amps @ 0-60 PSI
Diaphragm Materials	Santoprene
Housing Material	Zinc Plated Steel
Inlet Connection	3/8" FPT
Inlet Pressure	30 PSI
Liquid Temperature	170 °F
Outlet Connection	3/8" FPT
Power Source	No Cord
Pump Max Flow Rate (Gpm)	1.5
Series	8000
Size	3/8"
Suction Lift	Self prime up to 11 ft
Voltage Type	AC

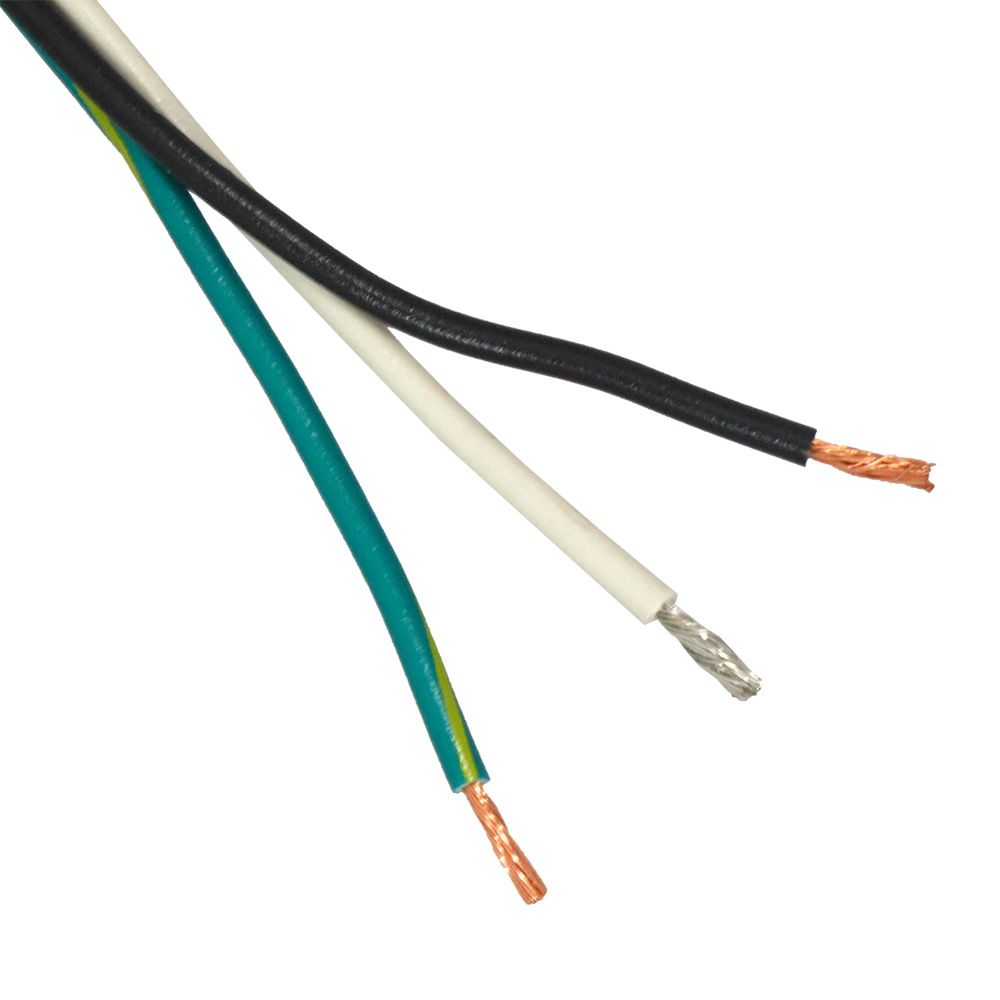

Wire Option	Bare Wire
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	7.75
Product Width	4
Product Weight (lbs)	5
