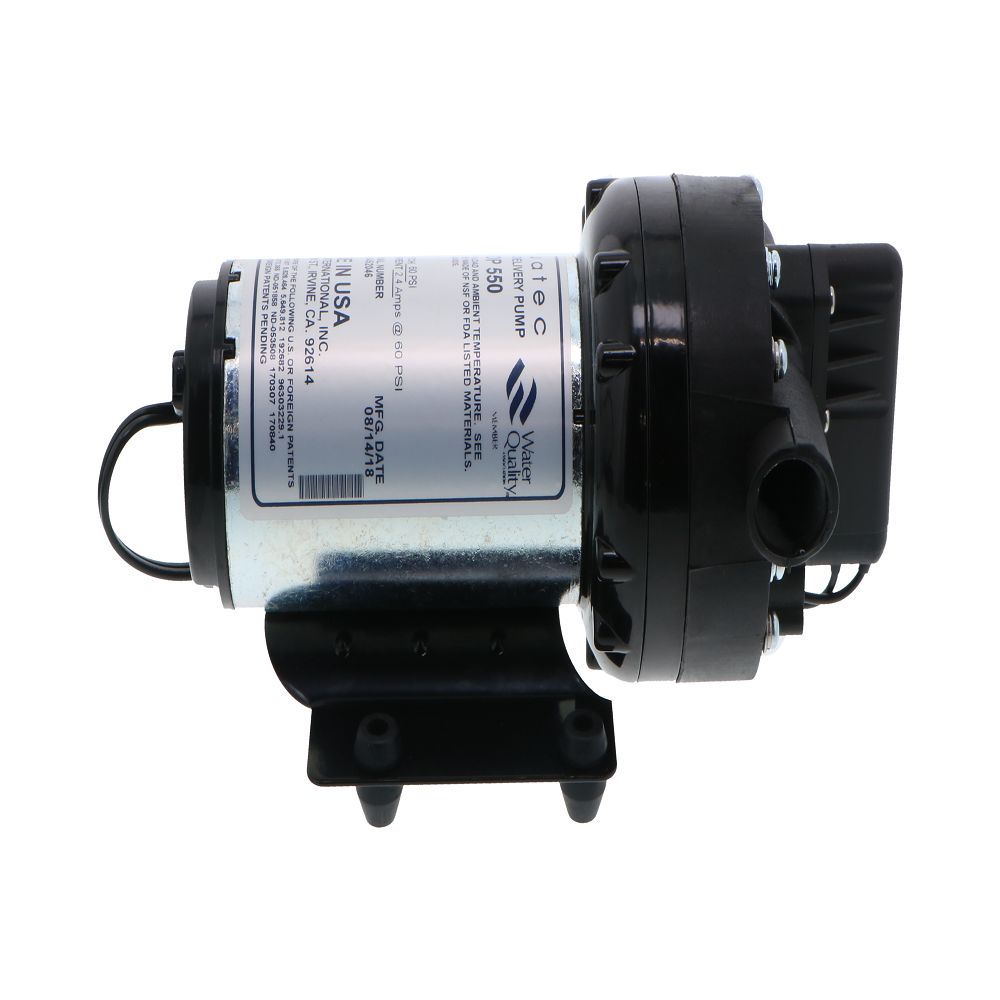

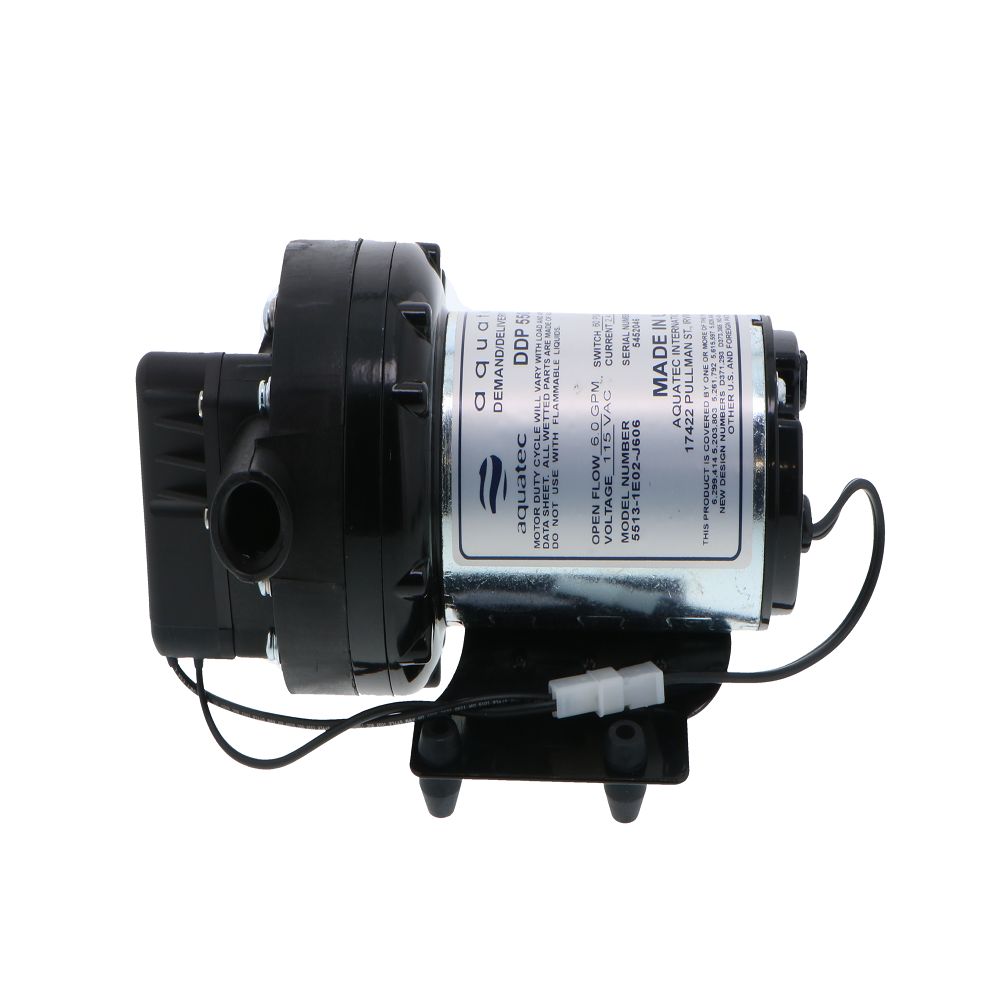

Aquatec 5513-1E01-J606 Pump 6.0 gpm, 1/2 FPT, 115VAC

The Aquatec 5513-1E01-J606 Pump is used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time.

These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. This pump features a 5-chamber construction.

NSF Certified.This pump has been independently tested and certified against NSF/ANSI Standard 58.
Made in the USA.The Aquatec 5513-1E01-J606 has been proudly manufactured in the USA.

Features:

• Self-priming
• Unparalleled performance, efficiency
• Whisper quiet at lower flows
• Minimal pulsations
• 7 year design life
• Runs dry without damage
• Chemically resistant versions
• Closed impervious diaphragm
• Independent symmetrical valves
• Highest structural integrity
• Engineered composite plastics
• Corrosion resistant metal
• Pressure switch and transducer options
• Ten point clamping

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.75-1.75 Amps @ 0-60 psi
Diaphragm Materials	Santoprene
Housing Material	Polypropylene
Inlet Connection	1/2" FPT
Liquid Temperature	Max 140 °F
Motor Rpm	2400 RPM
Outlet Connection	1/2" FPT
Pump Max Flow Rate (Gpm)	6
Series	5500
Size	1/2"
Suction Lift	Self prime up to 11 ft
Voltage Type	AC
Wire Option	Wall Plug
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	115VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	5.5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	5 in.
Product Length	9 in.
Product Width	5.5 in.
Product Weight (lbs)	8.1
