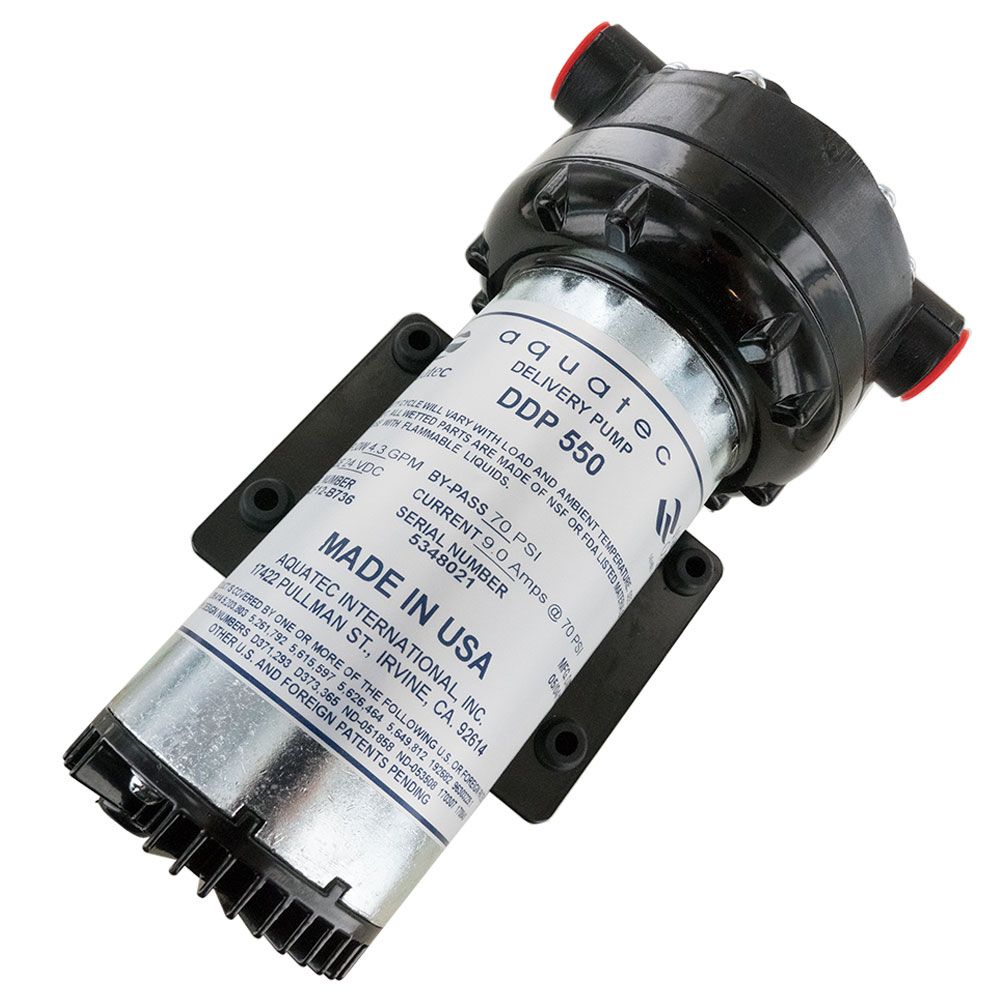

Aquatec 5513-2F12-B736 Pump 5.15 gpm, 1/2 FPT, 24V DC NO Cord

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. Typical applications of this pump includes beverage and drinking water delivery.

Features:

• 5-chamber construction
• Closed impervious diaphragm
• Independent symmetrical valves
• Highest structural integrity
• Ten point clamping
• Engineered composite plastics
• Corrosion resistant metal
• Pressure switch and transducer options

550 Series Demand Pump Benefits:

• Self-priming
• Unparalleled performance, efficiency
• Whisper quiet at lower flows
• Minimal pulsations
• 7 year design life
• Runs dry without damage
• Chemically resistant versions

Aquatec 5513-2F12-B736 Specifications:

• Motor Type: 24 VDC

• Bypass Pressure: 70 psi

• Port: 1/2" FPT
• Priming Capabilities: 11 ft
• Liquid Temperature: 140°F
• Certification: NSF Standard 58

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	3.00-8.50 Amps
Diaphragm Materials	Santoprene
Housing Material	Polypropylene
Inlet Connection	1/2" FPT
Liquid Temperature	140 °F
Outlet Connection	1/2" FPT
Pump Max Flow Rate (Gpm)	5
Series	5500
Size	1/2"
Suction Lift	Self priming up to 11 ft
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	24VDC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	9
Product Width	4.5
Product Weight (lbs)	8.1
