Amtrol Well-X-Trol WX-203D Well Pressure Tank With DuraBase 32 gal

The Well-X-Trol WX-203D well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-203D now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:

• Heavy duty butyl diaphragm

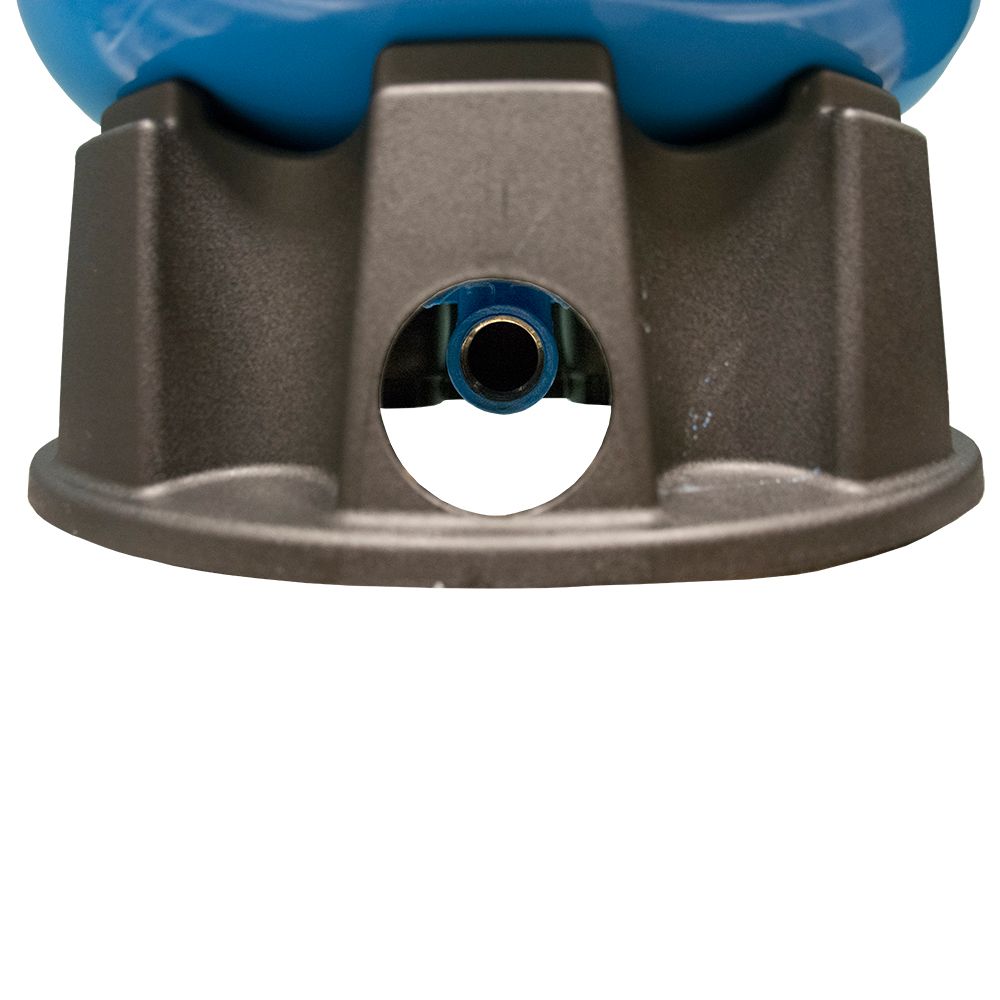

• Includes DuraBase Composite Stand
• DuraBase Stand is UV resistant, rugged and will never corrode
• Stainless steel system connection
• Stainless steel air stem
• Virgin polypropylene liner
• 100% Helium tested
• Drawdown 30/50 Setting: 10.9 gallons
• Drawdown 30/50 Setting: 9.4 gallons
• 7 year warranty
• NSF Standard 61 listed

Product Catalog

RO Tanks Catalog

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Air Valve Stem Location	Top
Application	Pressure Pump Tank
Body Material	Metal
Connection Location	Bottom
Diaphragm Materials	Butyl Rubber
Drawdown Volume	10.9 Gallons @ 30/50 Setting 9.4 Gallons @ 40/60 Setting
Inlet Connection	1" FPT
Material Of Construction	Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	200
Outlet Connection	1" FPT
Size	1"
Tank Pre-Charge	38 PSI
Volume	32
Connection Type	Female (FPT)
Diameter	15-3/8"
Origin	USA
Warranty & Certifications
Certifications	NSF Certified to Standard 61
Warranty	7 years
Shipping Dimensions
Shipping Length	46.5 in.
Shipping Width	16 in.
Shipping Height	16 in.
Product Weight & Dimensions
Height W/ Stand	46-1/2"
Product Height	16 in.
Product Length	46.5 in.
Product Width	16 in.
Product Weight (lbs)	47
